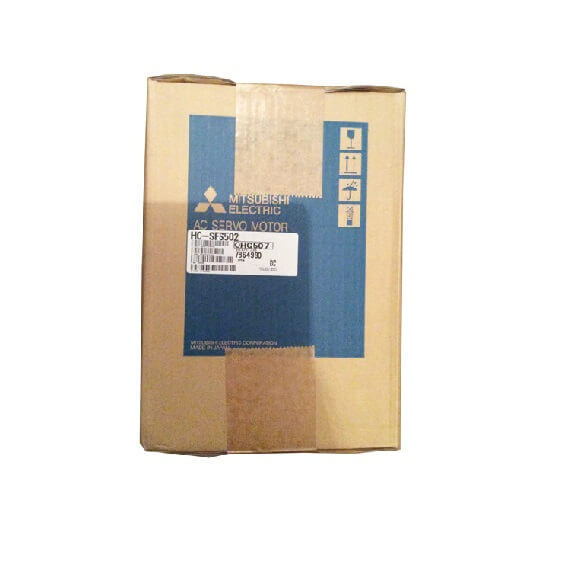

Mitsubishi MelServo-J2S Servomotor 5KW HC-SFS502
Gallwn gyflenwi rhannau awtomeiddio trydan Mitsubishi, fel Mitsubishi plc, Mitsubishi Servo Motor & Mitsubishi Servo Drive, Mitsubishi AEM, Mitsubishi VFD ac ati
![]()
Dadlwythwch Munual
| Mitsubishi Melservo-J2S Servomotor gydag egwyl |
Cyfres HC-SFS1000 R/MIN (Canolig Inertia, Capasiti Canolig) |
Cyfres HC-SFS2000 R/MIN |
|
|
Motor Mitsubishi Servo HC-SFS |
81 (b) |
121 (b) |
201 (b) |
301 (b) |
52 (b) |
102 (b) |
152 (b) |
|
| Mitsubishi servo-amp mr-j2s- |
100A/B/CP/CL (Nodyn 8) |
200a/b/cp/cl (nodyn 8) |
350A/B/CP/CL (Nodyn 8) |
60a/b/cp/cl |
100A/B/CP/CL |
200a/b/cp/cl |
|
Capasiti Cyfleuster Pwer (Nodyn 1) (KVA) |
1.5 |
2.1 |
3.5 |
4.8 |
1.0 |
1.7 |
2.5 |
|
| Trorym uchaf (n · m [oz · in]) |
24.4 (3455.0) |
34.4 (4871.0) |
57.3 (8113.7) |
85.9 (12163.4) |
7.16 (1013.9) |
14.4 (2039.0) |
21.6 (3058.6) |
|
| Cyflymder graddedig (r/min) |
1000 |
2000 |
|
| Cyflymder uchaf (r/min) |
1500 |
1200 |
3000 |
|
| Cyflymder ar unwaith a ganiateir (r/min) |
1725 |
1380 |
3450 |
|
| Cyfradd pŵer ar dorque sgôr barhaus (kW/s) |
32.9 |
30.9 |
44.5 |
81.3 |
8.7 |
16.7 |
25.6 |
|
| Cyfredol â sgôr (a) |
5.1 |
7.1 |
9.6 |
16 |
3.2 |
6 |
9 |
|
| Uchafswm cerrynt (a) |
15.3 |
21.3 |
28.8 |
48 |
9.6 |
18 |
27 |
|
| Cymhareb Moment Llwyth/Modur Anadweithiol a Argymhellir |
15 gwaith Uchafswm Munud Inertia Modur Servo (Nodyn 4) |
| Synhwyrydd cyflymder/safle |
Amgodiwr 17-did (Datrysiad fesul Amgodiwr/Cylchdroi Modur Servo: 131072 P/Parch) |
| Atodiadau |
Sêl Olew |
| Strwythuro |
Heb ei Amnewid yn llwyr (Lefel Amddiffyn: IP65) |
| Offeren (kg [lb])
Safonol |
9 (19.8) |
12 (26.4) |
19 (41.9) |
23 (50.7) |
5 (11.0) |
7 (15.4) |
9 (19.8) |
|
| Gyda brêc electromagnetig |
11 (24.2) |
18 (39.7) |
25 (55.1) |
29 (63.9) |
7 (15.4) |
9 (19.8) |
11 (24.2) |
|
