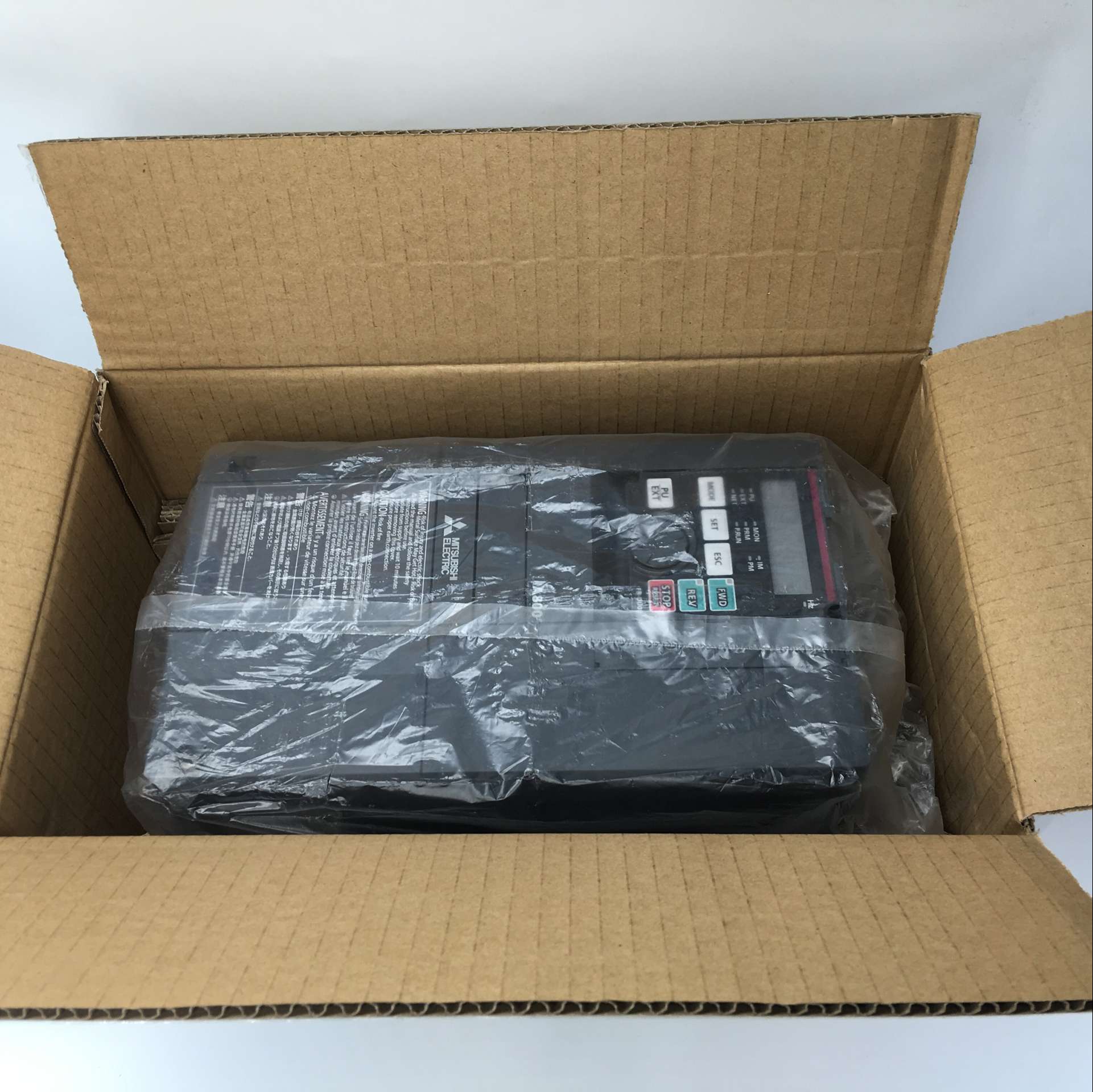

| Gwrthdröydd VFDS Mitsubishi |
FR-A840-M-2-60 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| FR-A840-00023 i -01160 |
00023 |
00038 |
00052 |
00083 |
00126 |
00170 |
00250 |
00310 |
00380 |
00470 |
00620 |
00770 |
00930 |
01160 |
| Capasiti Modur KW sydd â sgôr allbwn 1
Capasiti Gorlwytho 120 % (SLD) |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
| Capasiti Gorlwytho 150 % (LD) |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
| Capasiti Gorlwytho 200 % (ND) |
0.4 |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
| Capasiti Gorlwytho 250 % (HD) |
0.2 |
0.4 |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
| Graddio capasiti gorlwytho cyfredol o 120 %(SLD) a raddiais |
2.3 |
3.8 |
5.2 |
8.3 |
12.6 |
17 |
25 |
31 |
38 |
47 |
62 |
77 |
93 |
116 |
| I Max. 60au |
2.1 |
4.2 |
5.7 |
9.1 |
13.9 |
18.7 |
27.5 |
34.1 |
41.8 |
51.7 |
68.2 |
84.7 |
102.3 |
127.6 |
| I Max. 3 s |
2.8 |
4.6 |
6.2 |
10.0 |
15.1 |
20.4 |
30.0 |
37.2 |
45.6 |
56.4 |
74.4 |
92.4 |
111.6 |
139.2 |
| Capasiti Gorlwytho 150 %(LD)
Graddiais |
2.1 |
3.5 |
4.8 |
7.6 |
11.5 |
16 |
23 |
29 |
35 |
43 |
57 |
70 |
85 |
106 |
| I Max. 60au |
2.5 |
4.2 |
5.8 |
9.1 |
13.8 |
19.2 |
27.6 |
34.8 |
42.0 |
51.6 |
68.4 |
84.0 |
102.0 |
127.2 |
| I Max. 3 s |
3.2 |
5.3 |
7.2 |
11.4 |
17.3 |
24.0 |
34.5 |
43.5 |
52.5 |
64.5 |
85.5 |
105.0 |
127.5 |
159.0 |
| Capasiti Gorlwytho 200 %(ND)
Graddiais |
1.5 |
2.5 |
4 |
6 |
9 |
12 |
17 |
23 |
31 |
38 |
44 |
57 |
71 |
86 |
| I Max. 60au |
2.3 |
3.8 |
6.0 |
9.0 |
13.5 |
18.0 |
25.5 |
34.5 |
46.5 |
57.0 |
66.0 |
85.5 |
106.5 |
129.0 |
| I Max. 3 s |
3.0 |
5.0 |
8.0 |
12.0 |
18.0 |
24.0 |
34.0 |
46.0 |
62.0 |
76.0 |
88.0 |
114.0 |
142.0 |
172.0 |
| Capasiti Gorlwytho 250 %(HD)
Graddiais |
0.8 |
1.5 |
2.5 |
4 |
6 |
9 |
12 |
17 |
23 |
31 |
38 |
44 |
57 |
71 |
| I Max. 60au |
1.6 |
3.0 |
5.0 |
8.0 |
12.0 |
18.0 |
24.0 |
34.0 |
46.0 |
62.0 |
76.0 |
88.0 |
114.0 |
142.0 |
| I Max. 3 s |
2.0 |
3.8 |
6.3 |
10.0 |
15.0 |
22.5 |
30.0 |
42.5 |
57.5 |
77.5 |
95.0 |
110.0 |
142.5 |
177.5 |
| Gorlwytho Capasiti 2 SLD |
110 % o'r capasiti modur sydd â sgôr ar gyfer 60 s; 120 % ar gyfer 3 s (ar y mwyaf. Tymheredd amgylchynol 40 ° C) - Nodweddion Amser Gwrthdro |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Ld |
120 % o'r capasiti modur sydd â sgôr ar gyfer 60 s; 150 % ar gyfer 3 s (ar y mwyaf. Tymheredd amgylchynol 50 ° C) - Nodweddion Amser Gwrthdro |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Nud |
150 % o'r capasiti modur sydd â sgôr ar gyfer 60 s; 200 % ar gyfer 3 s (ar y mwyaf. Tymheredd amgylchynol 50 ° C) - Nodweddion Amser Gwrthdro |
|
|
|
|
|
|
|
|
|
|
|
|
|
| HD |
200 % o'r capasiti modur sydd â sgôr am 60 s; 250 % ar gyfer 3 s (ar y mwyaf. Tymheredd amgylchynol 50 ° C) - Nodweddion Amser Gwrthdro |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Foltedd 3 |
3-cam AC, 380-500 V i bwer Cyflenwad Foltedd |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Ystod amledd |
0.2–590 Hz |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Dull Rheoli |
V/f; fector fflwcs magnetig datblygedig, fector di -synhwyrydd go iawn (RSV), fector dolen gaeedig, rheolaeth fector di -synhwyrydd PM |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Transistor brêc 100 % ed |
Adeiledig |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Trorym brêc uchaf
adfywiol |
Torque 100 %/2 % ED gyda gwrthydd brêc adeiledig |
20 % Torque/Parhaus |
|
|
|
|
|
|
|
|
|
|
|
|
| gydag Opsiwn 7 FR-ABR |
Torque 100 %/10 % ED |
Torque 100 %/6 % Ed |
- |
|
|
|
|
|
|
|
|
|
|
|
| Isafswm gwerthoedd gwrthiant brêc 6
Ω |
371 |
236 |
190 |
130 |
83 |
75 |
52 |
34 |
34 |
21 |
21 |
13.5 |
13.5 |
13.5 |
| Foltedd cyflenwad pŵer mewnbwn |
3 cham, 380-500 V AC, -15 %/+10 % |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Ystod foltedd |
323-550 V AC ar 50/60 Hz (mae lefel tan -foltedd yn selectable yn ôl paramedr.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Amledd Cyflenwad Pwer |
50/60 Hz ± 5 % |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Mewnbwn graddedig a cyfredol h
Sld |
3.2 |
5.4 |
7.8 |
10.9 |
16.4 |
22.5 |
31.7 |
40.3 |
48.2 |
58.4 |
76.8 |
97.6 |
115 |
141 |
| Ld |
3 |
4.9 |
7.3 |
10.1 |
15.1 |
22.3 |
31 |
38.2 |
44.9 |
53.9 |
75.1 |
89.7 |
106 |
130 |
| Nud |
2.3 |
3.7 |
6.2 |
8.3 |
12.3 |
17.4 |
22.5 |
31 |
40.3 |
48.2 |
56.5 |
75.1 |
91 |
108 |
| HD |
1.4 |
2.3 |
3.7 |
6.2 |
8.3 |
12.3 |
17.4 |
22.5 |
31 |
40.3 |
48.2 |
56.5 |
75.1 |
91 |
| Hoeri |
Hunan oeri |
Oeri ffan |
|
|
|
|
|
|
|
|
|
|
|
|
| Strwythur Amddiffynnol 5 |
Amgaewch Math IP20 |
Math Agored (IP00) |
|
|
|
|
|
|
|
|
|
|
|
|
| Pwysau kg |
2,8 |
2,8 |
2,8 |
3,3 |
3,3 |
6,7 |
6,7 |
8,3 |
8,3 |
15 |
15 |
23 |
41 |
41 |
| Dimensiynau (wxHxd) mm |
150x260x140 |
220x260x170 |
220x300x190 |
250x400x190 |
325 × 550 x195 |
435x550x250 |
|
|
|
|
|
|
|
|
