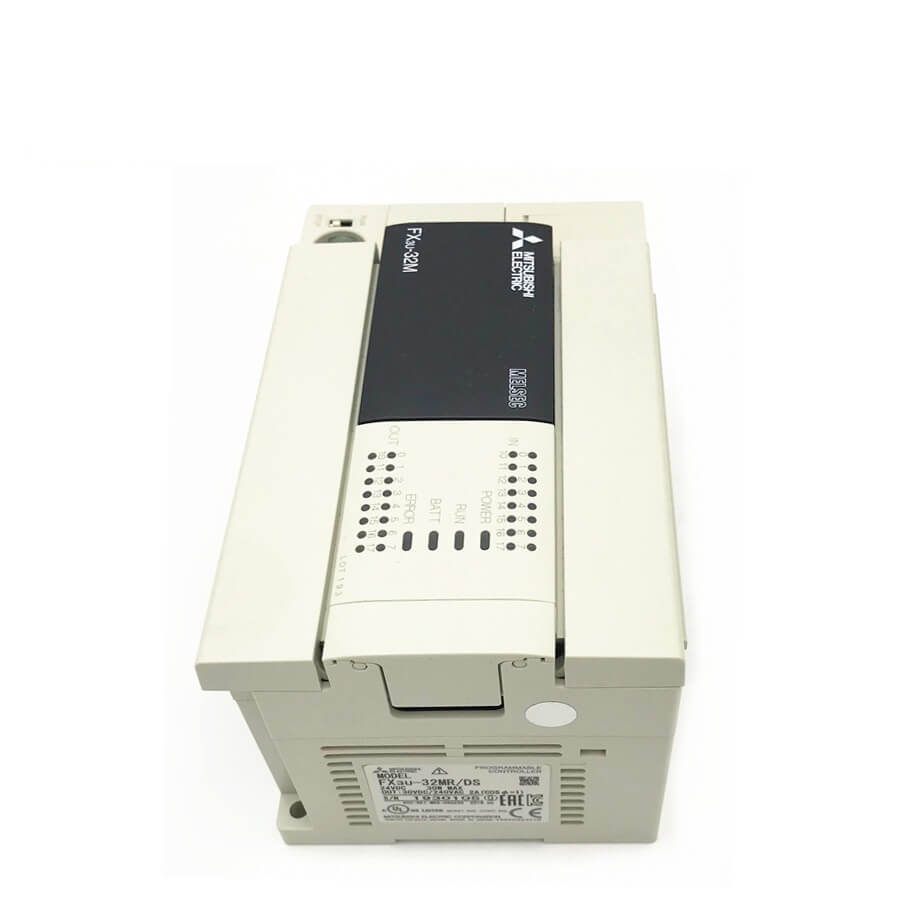

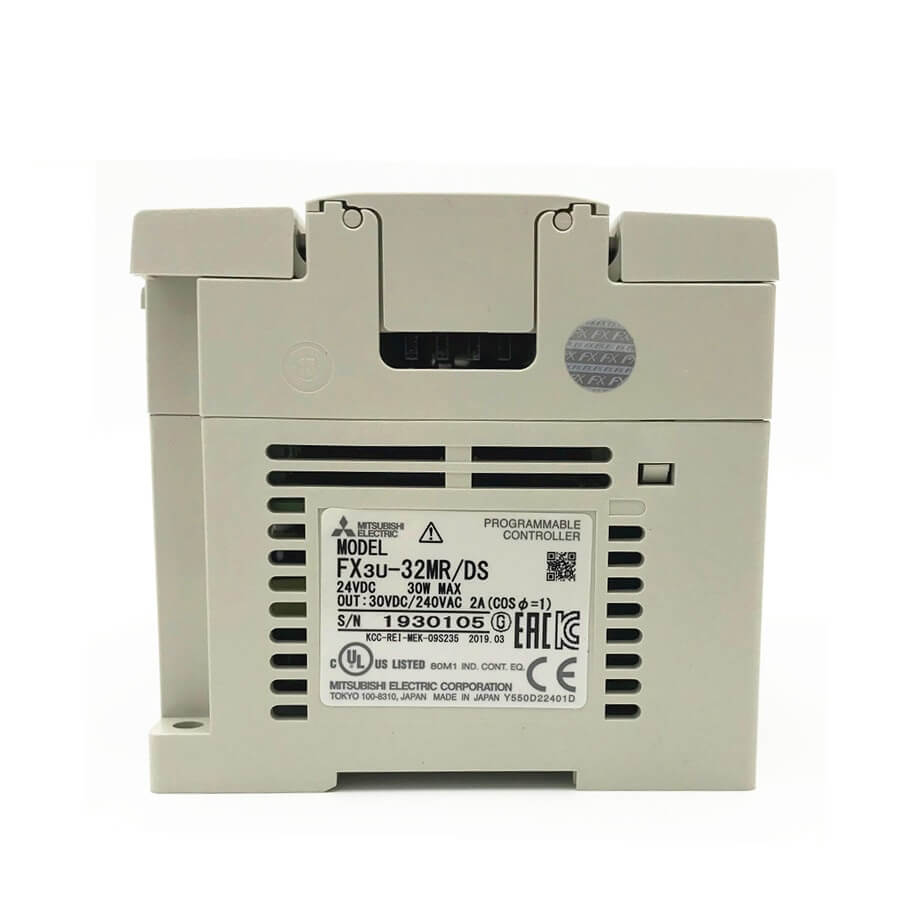

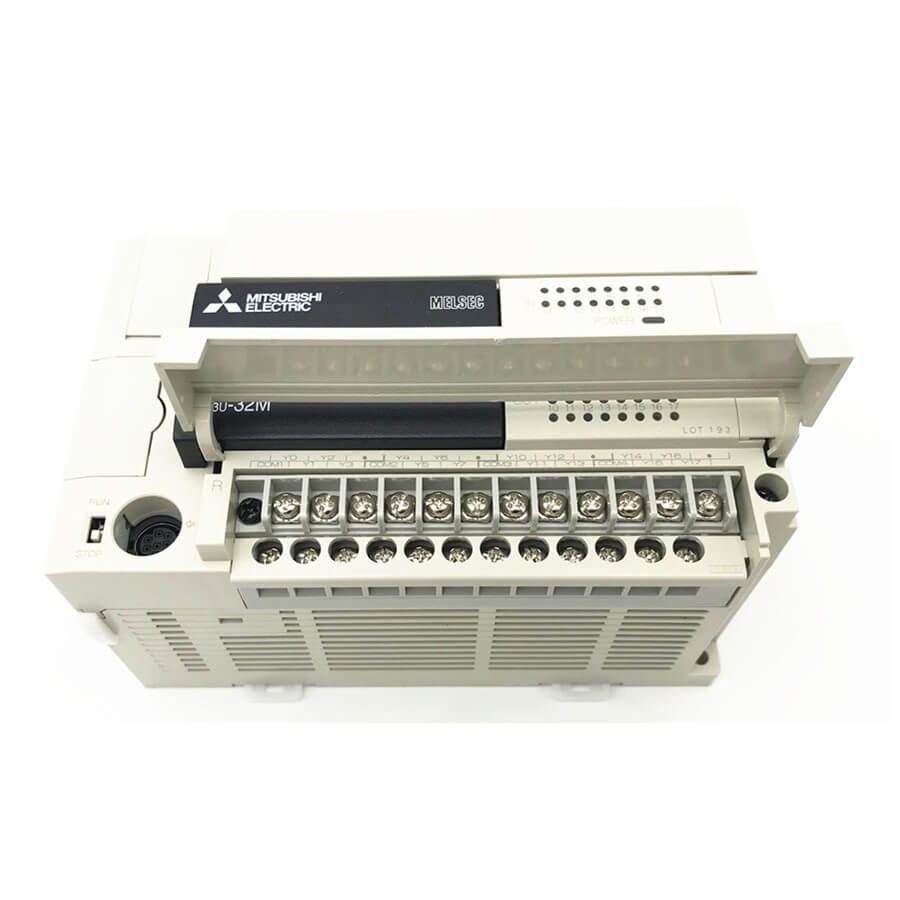

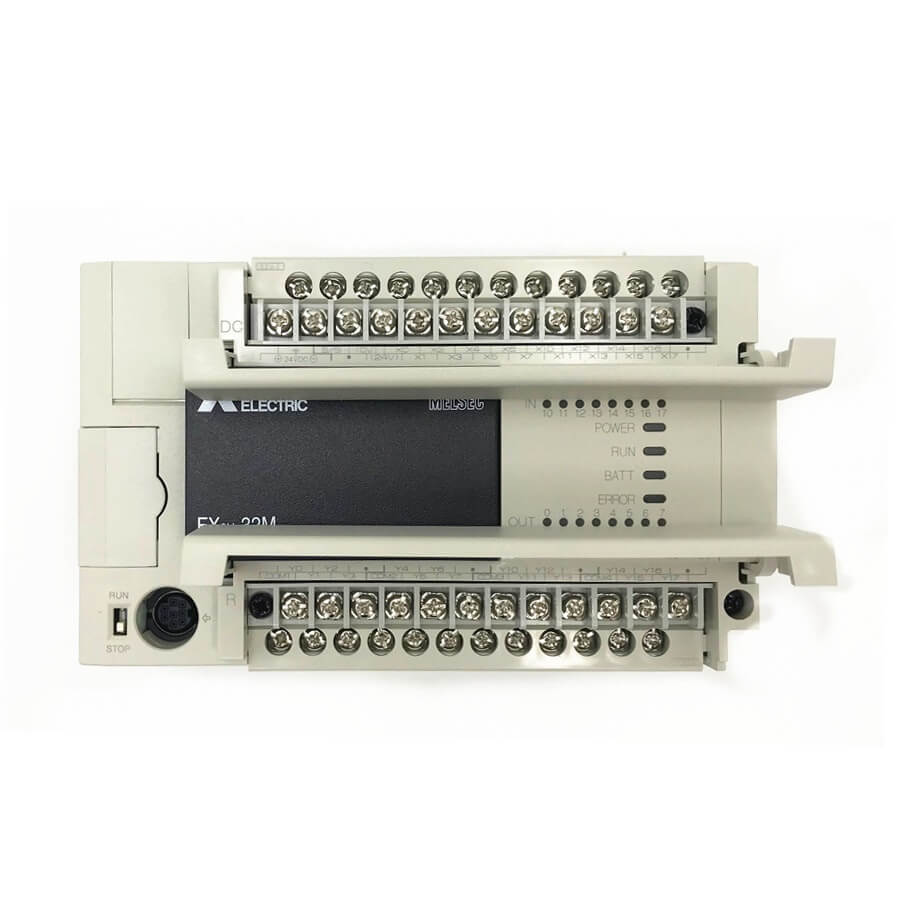

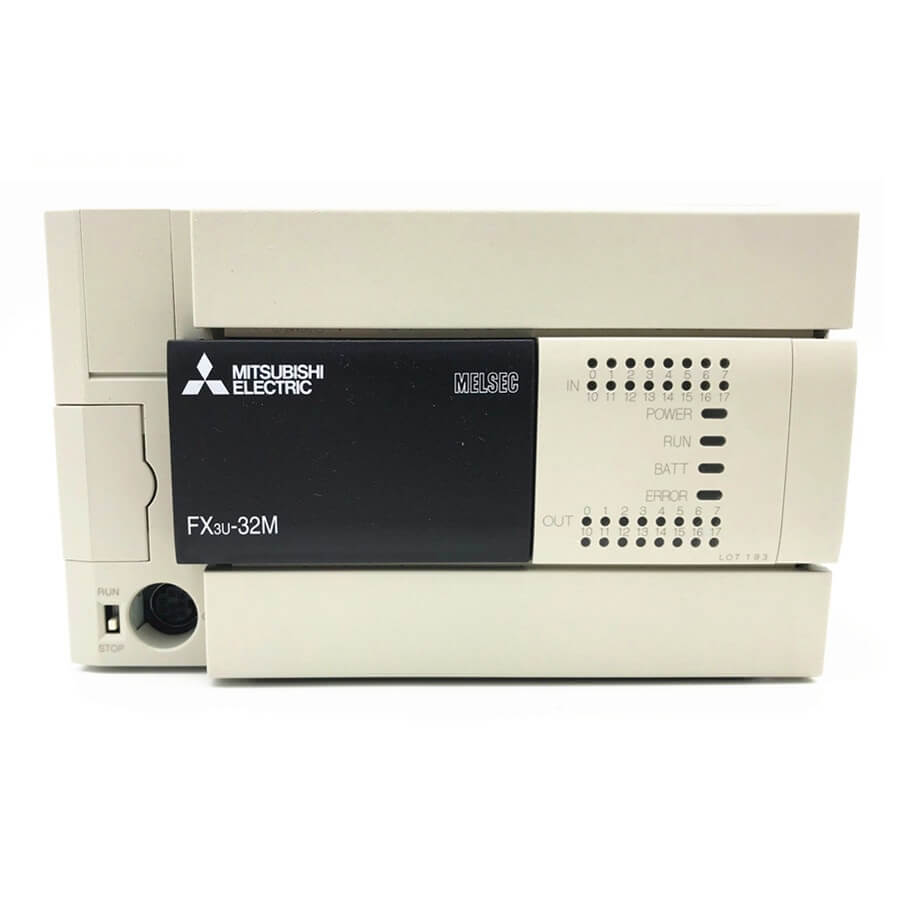

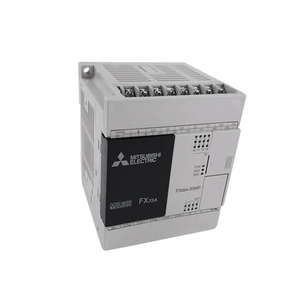

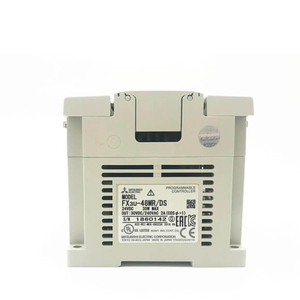

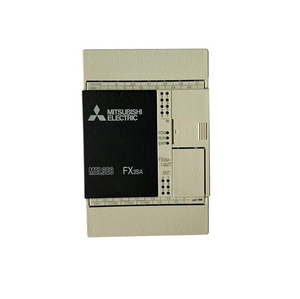

| Mitsubishi PLC Module |
FX3G/FX3GC/FX3GE |
FX3U/FX3UC |
|
Mga pantulong na relay |
7,680 kabuuan, na may 384 pangkalahatan (M0 – M383), 1,152 EEPROM na naka-latch (M384 – M1535),
at 6,144 pangkalahatan/opsyonal na naka-latch(M1536 – M7679) |
7,680 kabuuan, na may 500 pangkalahatan (M0 – M499), 524 opsyonal na latched (M500 – M1023), at 6,656 latched (M1024 – M7679) |
|
Mga relay ng estado |
4,096 kabuuan, na may 1,000 EEPROM na naka-latch (S0 – S999)
at 3,096 pangkalahatan/opsyonal na naka-latch (S1000 – S4095) |
4,096 kabuuan, na may 1,000 opsyonal na naka-latch (S0 – S999)
at 3,096 na naka-latch (S1000 – S4095) |
|
Mga timer |
320 kabuuan, na may
206 100 ms (T0 – T199 at T250 – T255), 46 10 ms (T200 – T245), at 68 1 ms (T246 – T249 at T256 – T319) |
512 ang kabuuan, kasama ang
206 100 ms (T0 – T191, T192 – T199 at T250 – T255), 46 10 ms (T200 – T245), at 260 1 ms (T246 – T249 at T256 – T511) |
|
Mga counter |
235 kabuuan (16 bit at 32 bit),
na may 36 heneral (C0 – C15 at C200 – C219) at 199 EEPROM na nakakabit (C16 – C199 at C220 – C234) |
235 kabuuan (16 bit at 32 bit),
na may 120 heneral (C0 – C99 at C200 – C219) at 115 nakakapit (C100 – C199 at C220 – C234) |
|
Mataas na bilis ng counter speed |
1-phase, max na 6 na puntos: 60 kHz / 4 na puntos,
10 kHz / 2 puntos 2-phase, 3 puntos max: 30 kHz / 2 puntos, 5 kHz/1 punto |
1-phase, max na 8 puntos: 100 kHz / 6 na puntos
10 kHz / 2 puntos 2-phase, max na 2 puntos: 50 kHz / 2 puntos |
|
Mga rehistro ng data |
8,000 kabuuan, na may 128 pangkalahatan (D0 – D127), 972 EEPROM na naka-latch (D128 – D1099),
at 6,900 pangkalahatan/opsyonal na naka-latch (D1100 – D7999) |
8,000 sa kabuuan, na may 200 pangkalahatan (D0 – D199), 312 opsyonal na naka-latch (D200 – D511),
at 7,488 naka-latch (D512 – D7999) |
| Mga rehistro ng extension |
24,000(R0 – R23999) |
32,768(R0 – R32767) |
| Mga rehistro ng extension file |
24,000(ER0 – R23999) panloob/opsyonal na memorya |
32,768(ER0 – R32767) opsyonal na memorya |
