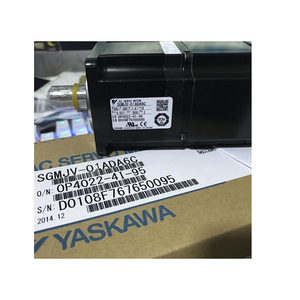

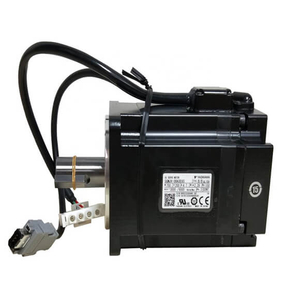

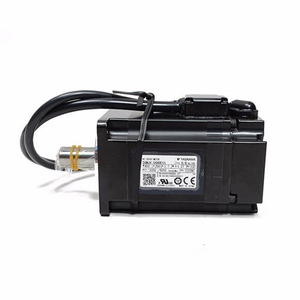

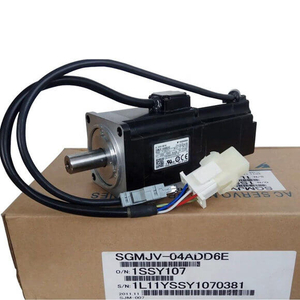

| Yaskawa Servo Motor Sgmjv |
voltas |
230 v |
|
|
|
|
| Yaskawaservo mótair sgmjv- @ |
|
A5a@ |
01a@ |
02a@ |
04a@ |
08a@ |
| Aschur rátáilte *1 |
Thiar |
50 |
100 |
200 |
400 |
750 |
| Chasmhóimint rátáilte *1, *2 |
N · m |
0.159 |
0.318 |
0.637 |
1.27 |
2.39 |
| Buaic -chasmhóimint mheandarach*1 |
N · m |
0.557 |
1.11 |
2.23 |
4.46 |
8.36 |
| Reatha rátáilte*1 |
A (RMS) |
0.61 |
0.84 |
1.6 |
2.7 |
4.7 |
| Uasmhéid mheandarach. sruth *1 |
A (RMS) |
2.1 |
2.9 |
5.8 |
9.3 |
16.9 |
| Luas rátáilte *1 |
min-1 |
3000 |
|
|
|
|
| Max. luas *1 |
min-1 |
6000 |
|
|
|
|
| Tairiseach chasmhóiminte |
N · M/A (RMS) |
0.285 |
0.413 |
0.435 |
0.512 |
0.544 |
| Nóiméad Rotor na táimhe (JM) |
kg · M2x10-4 (gan coscán) |
0.0414 |
0.0665 |
0.259 |
0.442 |
1.57 |
| Nóiméad Rotor na táimhe (JM) |
kg · M2x10-4 (le coscán) |
0.0489 |
0.0740 |
0.323 |
0.506 |
1.74 |
| Nóiméad ualach incheadaithe táimhe (JL) |
Iolrú (JM) |
15 |
10 |
|
|
|
| Ráta cumhachta rátáilte*1 |
kw/s |
6.11 |
15.2 |
15.7 |
36.5 |
36.3 |
| Luasghéarú uilleach rátáilte*1 |
rad/s2 |
38400 |
47800 |
24600 |
28800 |
15200 |
| Ionchódóir |
Caighdeánach |
Ionchódóir incriminteach (20 giotán) |
|
|
|
|
| Ionchódóir |
Rogha |
Ionchódóir incriminteach (13 giotán)/ ionchódóir absalóideach (20 giotán) |
|
|
|
|
| Ualach gathacha incheadaithe |
Thuaidh |
78 |
245 |
392 |
|
|
| Ualach sá incheadaithe |
Thuaidh |
54 |
74 |
147 |
|
|
| Thart. mir |
Kg (gan coscán) |
0.3 |
0.4 |
0.9 |
1.3 |
2.7 |
| Thart. mir |
Kg (le coscán) |
0.6 |
0.7 |
1.5 |
1.9 |
3.6 |
| Voltas rátáilte |
|
24 VDC |
|
|
|
|
| Tomhaltas cumhachta (ag 20 ° C) |
Thiar |
6 |
6.9 |
7.7 |
|
|
| Tomhaltas reatha (ag 20 ° C) |
A |
0.25 |
0.29 |
0.32 |
|
|
| Chasmhóimint a shealbhú |
N · m |
0.159 |
0.318 |
0.637 |
1.27 |
2.39 |
| Am ardú chun chasmhóimint a choinneáil |
MS (Max) |
100 |
|
|
|
|
| Am scaoilte |
MS (Max) |
60 |
80 |
|
|
|
