| Modèl |
DOP-W105B |
DOP-W127B |

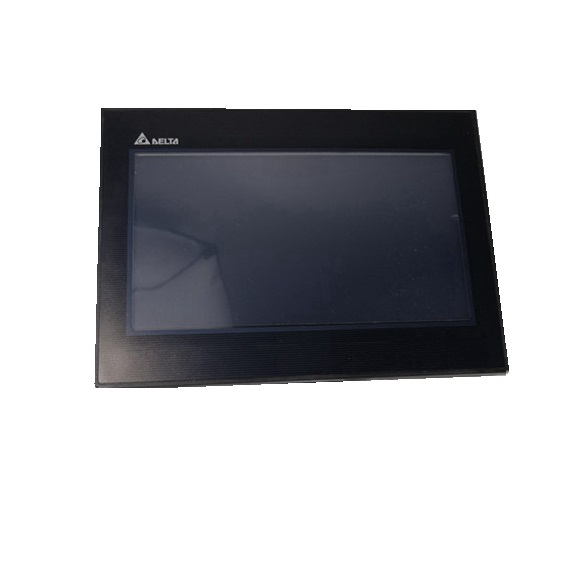

DOP-W157B |
| Manyen koòdone ekran |
4-fil rezistans manyen ekran> 10,000,000 opere |
| Enterfonn |
Frekans milti-ton （2k ~ 4K Hz） ／ 80dB |
| Pwodiksyon odyo |
I2s dekode, stereoheadphone Jack sèlman |
I2s dekode, stereoheadphone Jack + bati nan 1.5W oratè |
| USB |
1 USB lame ver 2.0 |
3 USB lame ver 2.0 |
| Sd |
Sdhc x 1 |
| Seri com portcom1 |
N/a |
| Com2 |
RS-232 ／ RS-422 ／ RS-485 (te bati-an sikwi pouvwa izole (nòt 1)) |
| Com3 |
RS-232 ／ RS-422 ／ RS-485 (te bati-an sikwi pouvwa izole (nòt 1)) |
| Ethernet |
2 Portsieee 802.3 (10Base-T) IEEE 802.3U (100Base-TX)
IEEE 802.3x (plen duplex ak kontwòl koule) |
| Kalandriye tout tan (RTC) |
Bati-an |
| Refwadisman metòd |
Sikilasyon lè natirèl |
| Apwobasyon sekirite |
CE / UL (Remak 3) |
| Degre ki enpèmeyab |
IP65 / NEMA4 (Remak 3) |
| Operasyon Voltage (Note2) |
DC +24V （-10% ~ +15%） (tanpri itilize izole pouvwa ekipman pou) |
| Vòltaj andirans |
AC500V pou 1 minit (ant chaje (DC24V Tèminal) ak FG Terminals) |
| Konsomasyon pouvwa (nòt 2) |
13.5W (max) |
18.5W (max) |
21.6W (max) |
| Batri backup |
sèvi ak yon lò-kapacitor olye de yon batri, pa gen okenn bezwen ranplasman ofbateries |
| Lavi batri backup |
Li ka kenbe travay la RTC omwen sèt jou anba WorkingEnvironment a kote kondisyon yo pa depase espesifikasyon yo pou DOP-W seri. |
| Tanperati operasyon |
O O0 C ~ 50 C |
| Tanperati depo |
O O-20 C ~ +60 C |
| Imidite anbyen |
oo
10% ~ 90% RH [0 ~ 40 C], 10% ~ 55% RH [41 ~ 50 C] Degre polisyon 2 |
|
Iminite bri |
DOP-W105B / DOPW-127B / DOP-W157B |
|
ESD (IEC 61131-2, IEC 61000-4-2) |
± 6kV egzeyat kontak |
|
|
± 10kV egzeyat lè |
|
EFT (IEC 61131-2, IEC 61000-4-4) |
Liy pouvwa: ± 1KV (Klas A) |
|
|
Kominikasyon I/O: ± 500V (Klas A) |
|
Vag
(IEC 61132-2, IEC 61000-4-5) |
Liy pouvwa ± 1KV DM |
|
|
Seri pò ± 500v cm |
|
|
Ethernet ± 500kV cm |
|
RS (IEC 61131-2, IEC 61000-4-3) |
80MHz ~ 1GHz, 10V/m. 1.4GHz ~ 2.0GHz, 10v/m |
|
CS (EN 61000-4-6, IEC61131-2
9.10) |
150kHz ~ 80MHz, 3V/m |
| Vibrasyon |
IEC 61131-2 Konfòme 5Hz ≦ F ＜ 8.3Hz = Kontini: 3.5mm, 8.3Hz ≦ F ≦ 150Hz = Kontini: 1.0g |
| Choke |
IEC 60068-2-27 konfòme 15g pik pou 11 ms dire, x, y, z direksyon pou 6 fwa |
| Dimansyon (W) x (h) x (d) mm |
299 x 224 x 46.8 |
313 x 239.5 x 67.5 |
384.4*295.8*67.8 |
| Panel dekoupaj (W) x (h) mm |
285.2 x 210.2 |
302.7 x 228.7 |
372.4*283.7 |
| Pwa |
Approx. 1750g |
Approx. 2830g |
Approx. 3880G |
