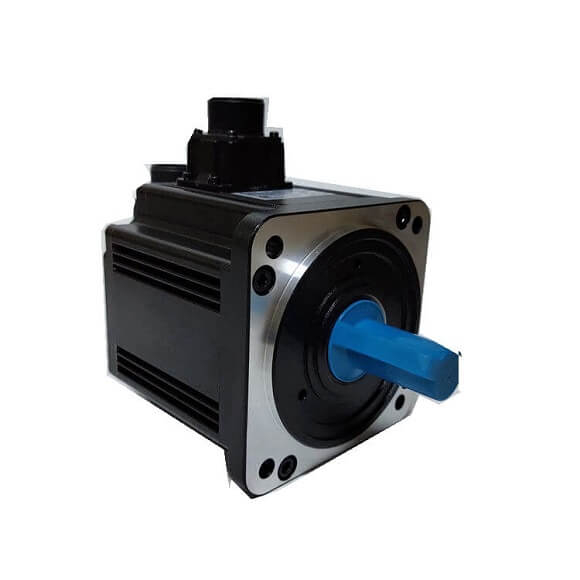

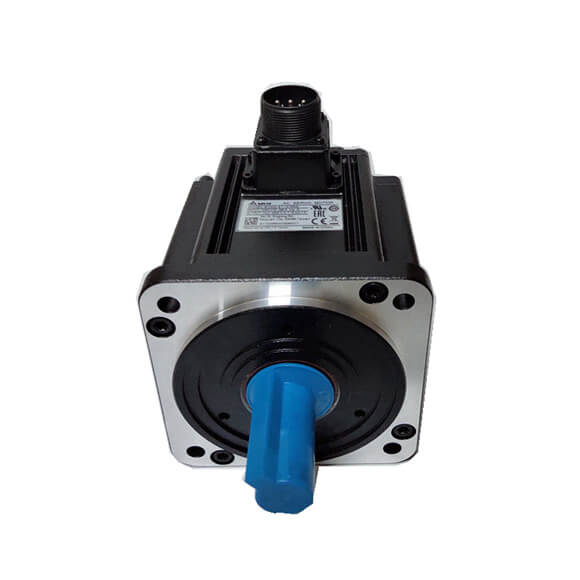

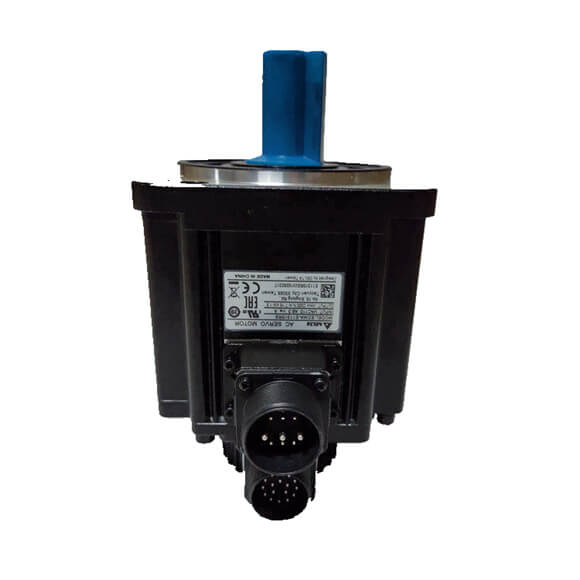

Delta ECMA seriem Servo Motor cum confractus 3kw ECMA-F11830RSS
Nos potest suppleret Delta Electric Automation partes, ut Gratam PLC, Delta Motor, Delta HMI, Delta VFD et sic in
Download in Munuali
| Delta ECMA seriem |
E XIII |
E XVIII |
| Motor servo |
05 |
10 |
15 |
20 |
20 |
30 |
35 |
| Rated output Power (KW) |
0.5 |
1.0 |
1.5 |
2.0 |
2.0 |
3.0 |
3.5 |
| Rated torque (NM) * I |
2.39 |
4.77 |
7.16 |
9.55 |
9.55 |
14.32 |
16.71 |
| Maxime torque (NM) |
7.16 |
14.3 |
21.48 |
28.65 |
28.65 |
42.97 |
50.13 |
| Rated Volo (R / min) |
2000 |
| Maximam celeritate (R / min) |
3000 |
| Rated current (a) |
2.9 |
5.6 |
8.3 |
11.01 |
11.22 |
16.1 |
19.2 |
| Maximum current (a) |
8.7 |
16.8 |
24.9 |
33.03 |
33.66 |
48.3 |
57.6 |
| Potestas Rating (KW / s) |
7.0 |
27.1 |
45.9 |
62.5 |
26.3 |
37.3 |
50.8 |
| Rotor momentum inertiae (x10-4kg-m2) (sine fregit) |
8.17 |
8.41 |
11.18 |
14.59 |
34.68 |
54.95 |
54.95 |
| Mechanica tempus constant (MS) |
1.91 |
1.51 |
1.10 |
0.96 |
1.62 |
1.06 |
1.08 |
| KT torque continue, KT (NM / a) |
0.83 |
0.85 |
0.87 |
0.87 |
0.85 |
0.89 |
0.87 |
| Voltage Constant-KE (MV / (R / min) |
30.9 |
31.9 |
31.8 |
31.8 |
31.4 |
32.0 |
32 |
| Armature resistentia (Ohm) |
0.57 |
0.47 |
0.26 |
0.174 |
0.119 |
0.052 |
0.052 |
| Armature inductance (MH) |
7.39 |
5.99 |
4.01 |
2.76 |
2.84 |
1.38 |
1.38 |
| Electrical Tempus constant (MS) |
12.96 |
12.88 |
15.31 |
15.86 |
23.87 |
26.39 |
26.39 |
| Nulla Genus |
Class A (ul), Class B (CE) |
| Nulla resistitur |
100mʈ, DC 500v supra |
| Vitra Vitra |
1.8k vac, sec I |
| Pondus (kg) (sine fregit) |
6.8 |
7.0 |
7.5 |
7.8 |
13.5 |
18.5 |
18.5 |
| Pondus (kg) (cum fregit) |
8.2 |
8.4 |
8.9 |
9.2 |
17.5 |
22.5 |
22.5 |
| Max. Radiales Shaft Lond (N) |
490 |
490 |
490 |
490 |
1176 |
1470 |
1470 |
| Max. PRAETERMITTO PRAETEREO Lond (N) |
98 |
98 |
98 |
98 |
490 |
490 |
490 |
| Power Rating (KW / s) (cum fregit) |
6.4 |
24.9 |
43.1 |
57.4 |
24.1 |
35.9 |
48.9 |
| Rotor momentum inertiae (x10-4kg-m2) (cum fregit) |
8.94 |
9.14 |
11.90 |
15.88 |
37.86 |
57.06 |
57.06 |
| Mechanica tempus constant (MS) (cum fregit) |
2.07 |
1.64 |
1.19 |
1.05 |
1.77 |
1.10 |
1.12 |
| Torque fregit tenentes [NT-M (min)] II |
10.0 |
10.0 |
10.0 |
10.0 |
25.0 |
25.0 |
25.0 |
| Brake Power consummatio (DW & 20 Vulgate)>: @ |
19.0 |
19.0 |
19.0 |
19.0 |
20.4 |
20.4 |
20.4 |
| Release Tempus [MS (Max)] |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
| Fregit viverra-in tempore [MS (max)] |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
| Vibrationis gradu (ʛM) |
15 |
| 2shudwlqj whpshudwxuh (û &) |
0ºC ad 40ºC |
| 6Wrudjh Whpshudwxuh (û &) |
-10ºC ad 80ºC |
| Operating Umor |
XX ad XC% RH (non-condensing) |
| Umor repono |
XX ad XC% RH (non-condensing) |
| Vibrationis facultatem |
2.5G |
| IP Rating |
, CCCLXV (zkhq zdwhusurri frqqhfwruv duh xvhg, RU zkhq dq rlo vhdo lv xvhg wr eh ^ wwhg wrthe rotating hastas (an oleum exemplar est usus))) |
