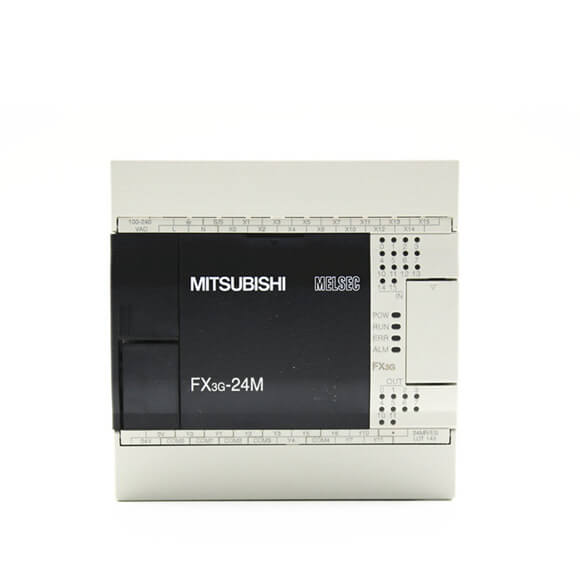

| Mitsubishi PLC controller |
Fx3g / fx3gc / fx3ge |
| Auxiliaras |
7,680 Summa cum CCCLXXXIV Generalis (M0 - M383), 1,152 EEPROM Latched (M384 - M1535), and 6.144 Generalis / Libitum Latched (M1536 - M7679) |
| Special auxiliaris |
DXII (M8000 - M8511) |
| Re publica relationes |
4,096 totalis, cum 1,000 EEPROM Latched (S0 - S999) et 3.096 Generalis / Libitum Latched (S1000 - S4095) |
| Timers |
CCCXX totalis, cum CCVI C MS (T0 - T199 et T250 - T250), XLVI X MS (T200 - T245)
Et LXVIII I MS (T246 - T249 et T256 - T319) |
| Calculis |
CCXXXV totalis (XVI frenum et XXXII frenum), cum XXXVI Generalis
(C0 - C15 et C200 - C219) and CXCIX EEPROM Latched (C16 - C199 et C220 - C234) |
| CIRCULUM |
XXI summa cum XVI I-phase (C235 - C250) et V II-Phase (C251 - C255) |
| Summus celeritas celeritate |
I-phase, VI puncta max: LX khz / IV puncta, X khz / II puncta
II-phase, III puncta max: XXX khz / II puncta, V KHz / I Point |
| Real-vicis horologium |
Anno, mense, die, hora, minute, secundo, die illo una sabbatorum |
| Notitia regesterunt |
8,000 totalis, cum CXXVIII Generalis (D0 - D127), CMLXXII EEPROM Latched (D128 - D1099), and 6.900 General / libitum Latched (D1100 - D7999) |
| Tractus Regestis |
24,000 (R0 - R23999) |
| Tractus file Registers |
24,000 (E0 - R23999) Internum / libitum memoria |
| Index Regests |
16 |
| Special notitia Regestis |
CCLVI (D8000 - D8255) DXII (D8000 - D8511) |
| Indicibusque |
2,048 |
| Nidificia |
8 |
| Adjicias inputs |
6 |
| Constants |
XVI Bit: K: -32.768 ad 3.767; H: 0 ad FFFF; XXXII Bit: K: -2.147,483.648 ad +2,147,483.647; H: 0 ad FFFF FFFF |
