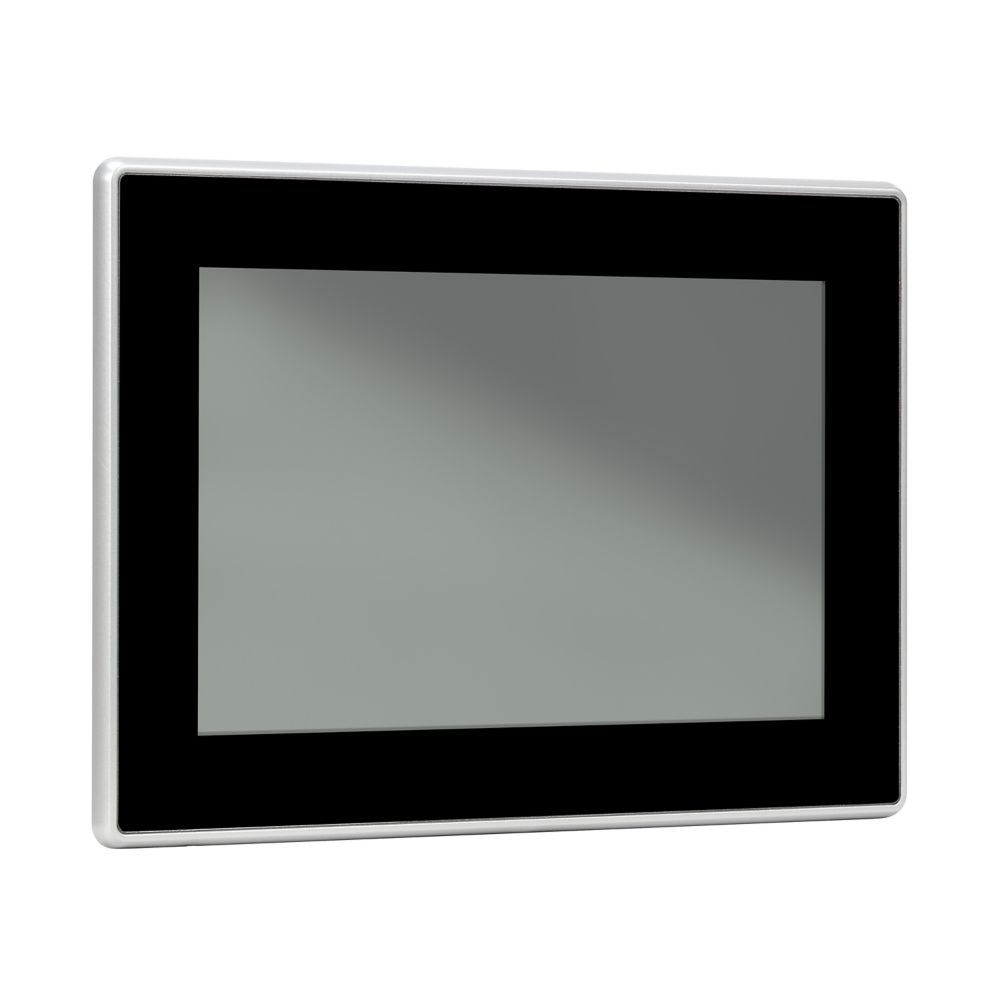

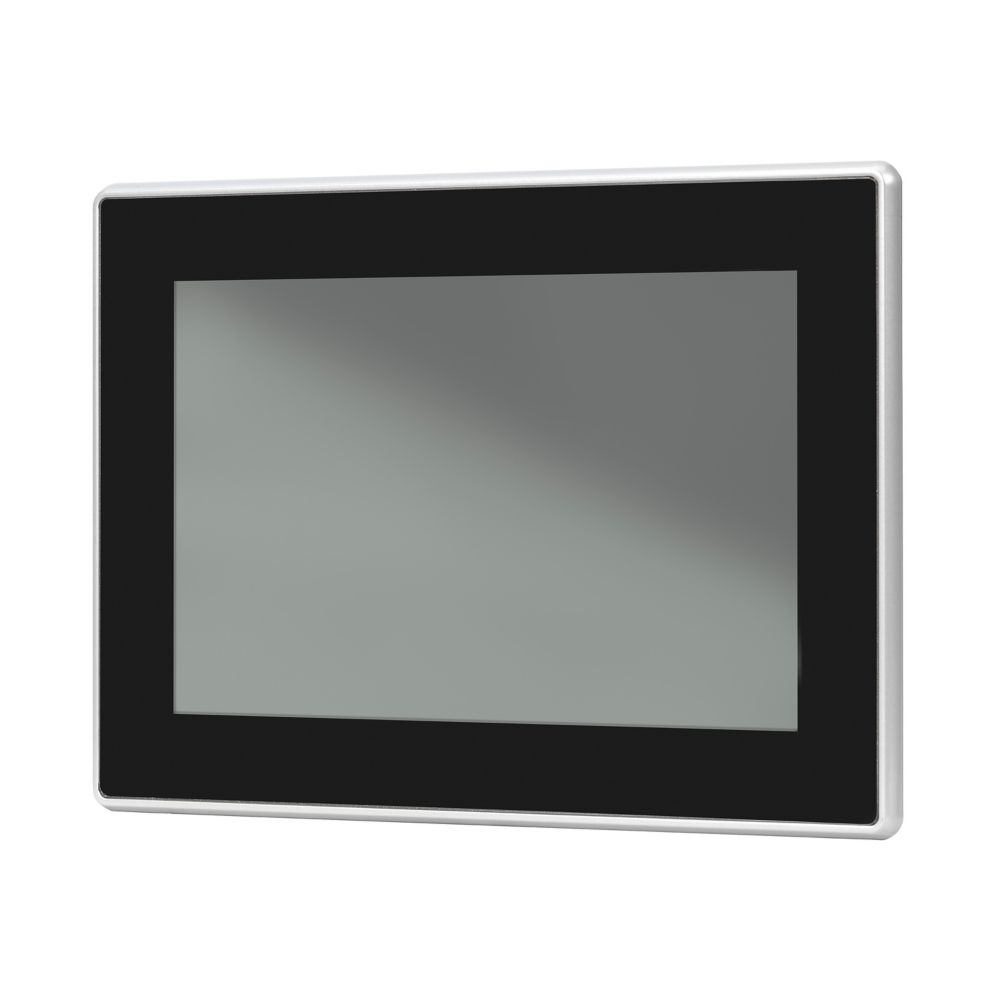

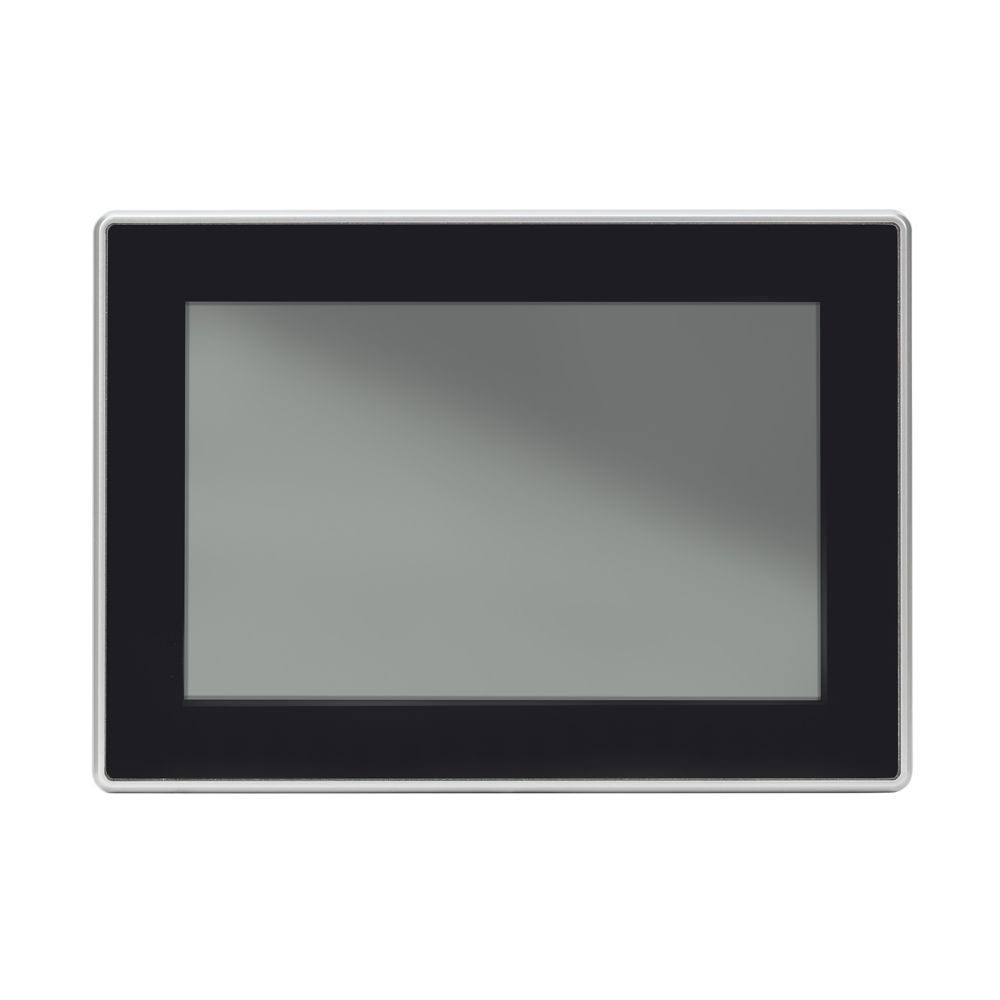

| Used with | XP500 |
| Type | Industrial PC |
| Features | Customer individual configuration
Fanless CPU and system cooling, natural convection-based passive cooling |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply to enclosures without lifting aids. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Meets the product standard's requirements. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Is the panel builder's responsibility. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Fitted with: | Touch screen
Other storage media
1 x RS232 (built-in interface)
1 x RS485 (built-in interface)
2 x Ethernet 1000/100/10 Mbps (built-in interface) |
| Enclosure material | Aluminum (die-cast) |
| Enclosure type | Other |
| Ambient operating temperature - max | 45 °C |
| Ambient operating temperature - min | 0 °C |
| Ambient storage temperature - max | 60 °C |
| Ambient storage temperature - min | -20 °C |
| Built-in depth | 82 mm |
| Equipment heat dissipation, current-dependent Pvid | 29 W |
| Front height | 200 mm |
| Main memory - max | 8 MB |
| Memory capacity (hard disc) | 0.064 TB |
| Number of buttons with LED | 0 |
| Number of free slots (AGP) | 0 |
| Number of free slots (ISA) | 0 |
| Number of free slots (Other) | 0 |
| Number of free slots (PCI) | 0 |
| Number of free slots (PCMCIA) | 0 |
| Number of function buttons | 0 |
| Explosion safety category for dust | ATEX dust-ex-protection, II 3D Ex tc IIIC T70°C U |
| Display size | 222.72 x 125.28 mm
16:9 |
| Environmental conditions | Condensation: Non-condensing |
| Backup time | 5 years, typ. (time at zero voltage) |
| Battery runtime | 5 years typ. |
| Voltage type | DC |
| Operating system | Windows 10 |
| Degree of protection | NEMA 12
IP65 |
| Software | Galileo or 3rd party |
| Degree of protection (front side) | IP65 |
| Mounting method | Front build in possible |
| Number of slots | 1 (for SD-Card) |
| Display lighting | LED
Dimmable via software |
| Interference immunity | According to EN 55024:2010
According to EN 61131-2:2007
According to EN 61000-6-2:2005 |
| Display type | TFT
Tempered glass with anti-reflective coating |
| Display viewing angle | 85°/85°/80°/80° (left/right/up/down) |
| Lifespan | 50,000 h (Service life of back-lighting) |
| Interfaces | Ethernet (10/100/1000 Mbps)
4 x USB 3.0
1 x DP
1 x HDMI
1 x RS232/RS422/485
RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC)
RS485 (not galvanically isolated, 9-pin SUB-D plug, UNC) |
| Model | Die-cast aluminum enclosure and glass front in aluminum frame |
| Number of colors of the display | 262144 |
| Number of HW-interfaces (industrial ethernet) | 2 |
| Number of HW-interfaces (other) | 0 |
| Number of HW-interfaces (parallel) | 0 |
| Number of HW-interfaces (PS2) | 0 |
| Number of HW-interfaces (RS-232) | 1 |
| Number of HW-interfaces (RS-422) | 0 |
| Number of HW-interfaces (RS-485) | 0 |
| Number of HW-interfaces (SCSI) | 0 |
| Number of HW-interfaces (serial TTY) | 0 |
| Number of HW-interfaces (USB) | 4 |
| Number of HW-interfaces (wireless) | 0 |
| Number of interfaces (PROFINET) | 0 |
| Number of pixels (horizontal) | 1024 |
| Number of pixels (vertical) | 600 |
| Number of storage media bays | 1 |
| Number of system buttons | 0 |
| Operating temperature - max | 45 °C |
| Operating temperature - min | 0 °C |
| Processor clock rate | 2 GHz |
| Pixel resolution | 1024 x 600
WSVGA |
| Preinstalled operating system | Windows 10 |
| Processor type | Intel Atom |
| Screen size (diagonal) | 10.1 in |
| Static heat dissipation, non-current-dependent Pvs | 38.4 W |
| Supply voltage at DC - max | 36 VDC |
| Supply voltage at DC - min | 18 VDC |
| Width of the front | 281 mm |
| Product category | Panel PC |
| Protocol | EtherNet/IP
MODBUS
Other bus systems |
| Rated operational voltage | 24 V DC (power-supply - safety extra low voltage) |
| RoHs conformity | Yes |
| Touch technology | Capacitive multitouch (PCT)
Multi-touch touch panel touch sensor |
| Number of free PCIe-slots | 0 |
