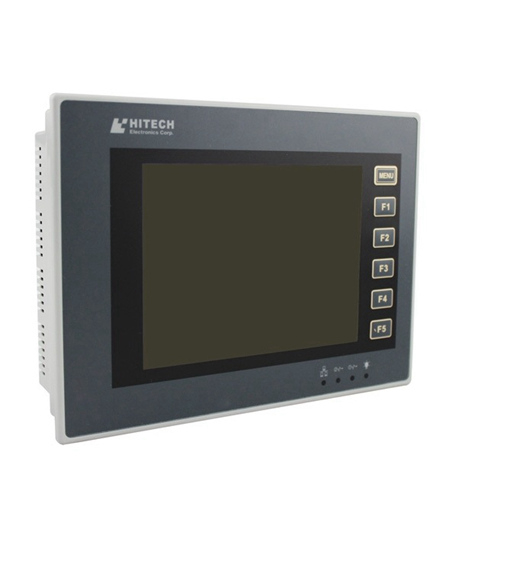

5.7" HITECH (Beijer) PWS operator Panels HMI PWS6620S-N

Series#: HITECH HMI

5.7″ HITECH (Beijer) PWS operator Panels HMI PWS6620S-N
5.7″ HITECH (Beijer) touch screen 64K Colors TFT Touch screen HMI,320 x 240
COM Port x2 CF Card USB Host x1,USB Device x1
We can Supply All series of HITECH (Beijer) HMI Touch screen.
100% Original and new,In stock by HITECH (Beijer) Electronics。
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Availability:



Inquire

Product Description

Series#: HITECH HMI

5.7″ HITECH (Beijer) PWS operator Panels HMI PWS6620S-N
5.7″ HITECH (Beijer) touch screen 64K Colors TFT Touch screen HMI,320 x 240
COM Port x2 CF Card USB Host x1,USB Device x1
We can Supply All series of HITECH (Beijer) HMI Touch screen.

Download a Munual

HITECH (Beijer) operator Panels touch screen	PWS6620S-P	PWS6620S-N	PWS6620T-P	PWS6620T-N
LCD Type	Mono STN LCD	Color TFT LCD
Screen size	5.7” (diagonal)
Display resolution	320×240
Brightness (cd/m2)	160	400

Contrast adjustment	Via touch panel	—

Display colors	16 shades of blue	64K colors
Back light type	CCFL	LED
CPU	32-bit RISC
Back light life	50,000 hours
Operation Status LED	PWR, COM1, COM 2, Ethernet LEDs

Touch screen	Analog

Touch screen
(number of times)	> 1,000,000


Keypad	1 Menu key and 5 user-defined function keys (F1—F5)
Application Flash ROM	4MB
RAM	16MB
Data/Recipe	512KB
RTC
(w/rechargeable lithium battery)	Yes

Data storage (CF card)	Yes

COM1	9-pin female (RS232/RS485)

COM2	25-pin female (RS232/RS422/RS485)

COM3	—
USB Host	1
USB Device	1

Multi-functional port	—

Ethernet	—	Yes	—	Yes

External dimensions (mm)	195.0 (W) x 145.0 (H) x 59.1 (D)
Cut-out dimensions (mm)	185.8 x 135.8
Supply voltage	24V DC ±15 %, < 20W
Front protection	IP65
Certification	CE,UL,FCC
Weight (kg)	0.81

Relevant documents

Beijer-HITECH-HMI-PWS-Series-datasheet.pdf
