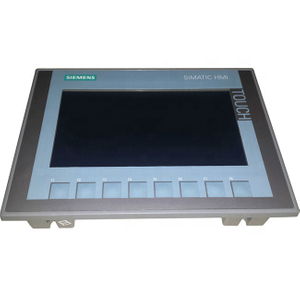

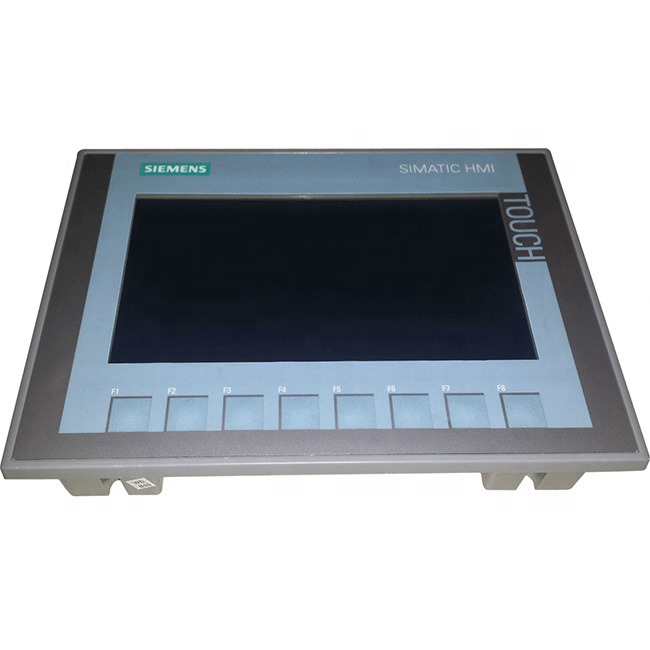

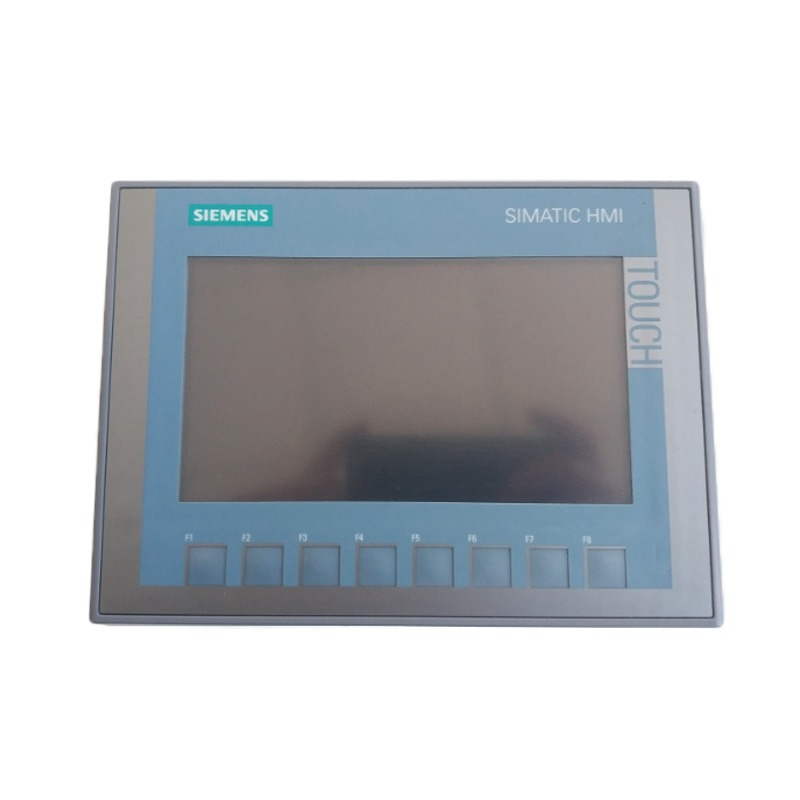

7 inch Siemens SIMATIC HMI KTP700 Basic Panel Touch Screen 6AV2123-2GB03-0AX0

Product type designation

KTP700 Basic color PN

Design of display

TFT widescreen display, LED backlighting

Screen diagonal

7 in

Display width

154.1 mm

Display height

85.9 mm

Number of colors

65 536

● Horizontal image resolution

● Vertical image resolution

800 Pixel

480 Pixel

● MTBF backlighting (at 25 °C)

● Backlight dimmable

20 000 h

Yes

● Function keys

— Number of function keys

8

● Design as touch screen

Yes

Mounting position

vertical

Mounting in portrait format possible

Yes

Mounting in landscape format possible

Yes

maximum permissible angle of inclination without external ventilation

35°

Type of supply voltage

DC

Rated value (DC)

24 V

permissible range, lower limit (DC)

19.2 V

permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

230 mA

Starting current inrush I²t

0.2 A²·s

Active power input, typ.

5.5 W

Processor type

ARM

Flash

Yes

RAM

Yes

Memory available for user data

10 Mbyte

Acoustics

● Buzzer

● Speaker

Yes No
