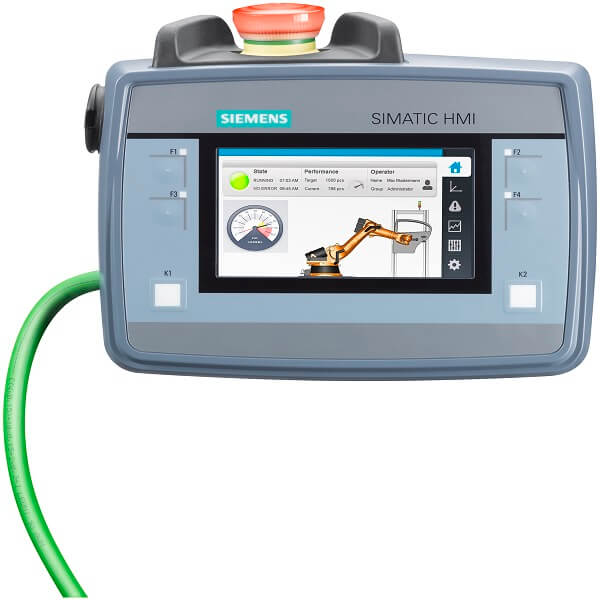

7 inch Siemens SIMATIC HMI KTP700F Mobile Panel Touch Screen 6AV2125-2GB23-0AX0

Product type designation

KTP700F Mobile

Design of display

TFT widescreen display, LED backlighting

Screen diagonal

7 in

Color display

Yes

Number of colors

16 777 216

● Horizontal image resolution

● Vertical image resolution

800 Pixel

480 Pixel

● MTBF backlighting (at 25 °C)

● Backlight dimmable

50 000 h

Yes; 0-100 %

● Function keys

— Number of function keys

8

— Number of function keys with LEDs

8

● Keys with LED

● Numeric keyboard

● alphanumeric keyboard

Yes Yes;

Yes;

Onscreen Onscreen

keyboard keyboard

● Design as touch screen

● Design as multi-touch screen

Yes

No

● Stop button (forced blocking)

Yes

● Emergency stop button (illuminated and forced blocking)

Yes

● Acknowledgement button (3-stage)

Yes

● Key-operated switch

Yes

● Illuminated pushbutton

Yes

● integrated camera

No

● DP direct LEDs (LEDs as S7 output I/O)

— F1…Fx

8

● Direct keys (keys as S7 input I/O)

— F1…Fx

8

● Direct keys (touch buttons as S7 input I/O)

32

Type of supply voltage

DC

Rated value (DC)

24 V

permissible range, lower limit (DC)

19.2 V

permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

350 mA

Starting current inrush I²t

0.135 A²·s

Active power input, typ.

8.5 W

Processor type

ARM

Flash

Yes

RAM

Yes

Memory available for user data

12 Mbyte
