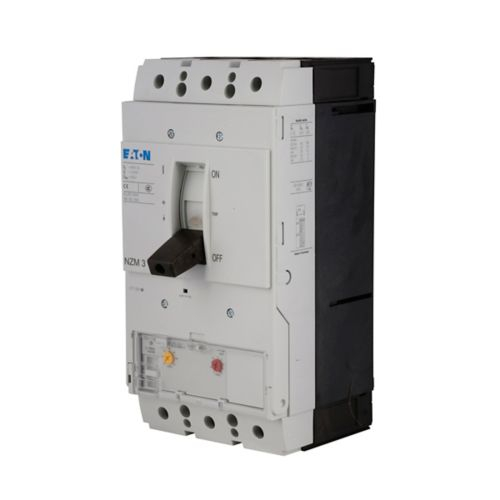

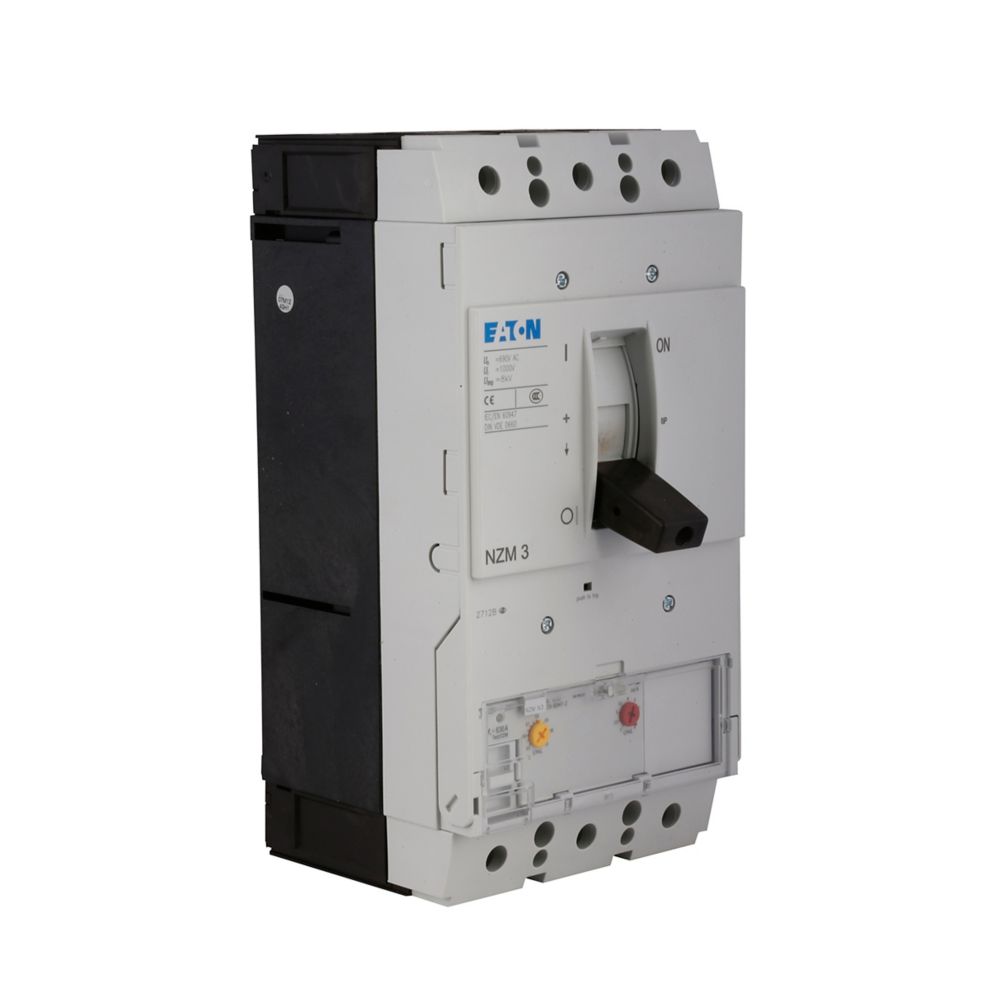

Eaton Moeller NZMN3-AEF400-NA Molded Case Circuit Breaker (MCCB)

Eaton Series NZM complete molded case circuit breaker, NZM3-frame, NZMN3, Thermal-magnetic trip, Three-pole, 400A, 690 Vac, 50 kAIC at 415 Vac, 42 kAIC at 480 Vac, Distribution circuit protect., 400-400A, Front screw, 400-400A

Availability:



Inquire

Model:
NZMN3-AEF400-NA
Brand:
Eaton Moeller

Product Description

Series#: Circuit Breaker->Eaton Circuit Breaker

Download A Munual

General specifications

Product Name	Eaton Series NZM complete molded case circuit breaker
Catalog Number	NZMN3-AEF400-NA
EAN	4015082692780
Product Length/Depth	6.535 in
Product Height	5.512 in
Product Width	5.512 in
Product Weight	15.547 lb
Warranty	Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances	Contact Manufacturer
Product Type	Molded case circuit breaker

Product specifications

Amperage Rating	400 A
Voltage rating	690 V AC
Trip Type	T268
Circuit breaker type	NZMN3
Frame	NZM3
Class	Distribution circuit protection
Accessories	Rocker lever, motor drive
Adjustment range short-circuit release	800-4400A delayed
Setting Range Ol Protector	400-400A
Short-circuit breaking capacity	50 kAIC
Interrupt rating	42 kAIC at 480 Vac 50 kAIC at 415 Vac
Connection	Front screw
Overload range	400-400A
Number of poles	Three-pole

Relevant documents

skuPage.NZMN3-AEF400-NA.pdf
