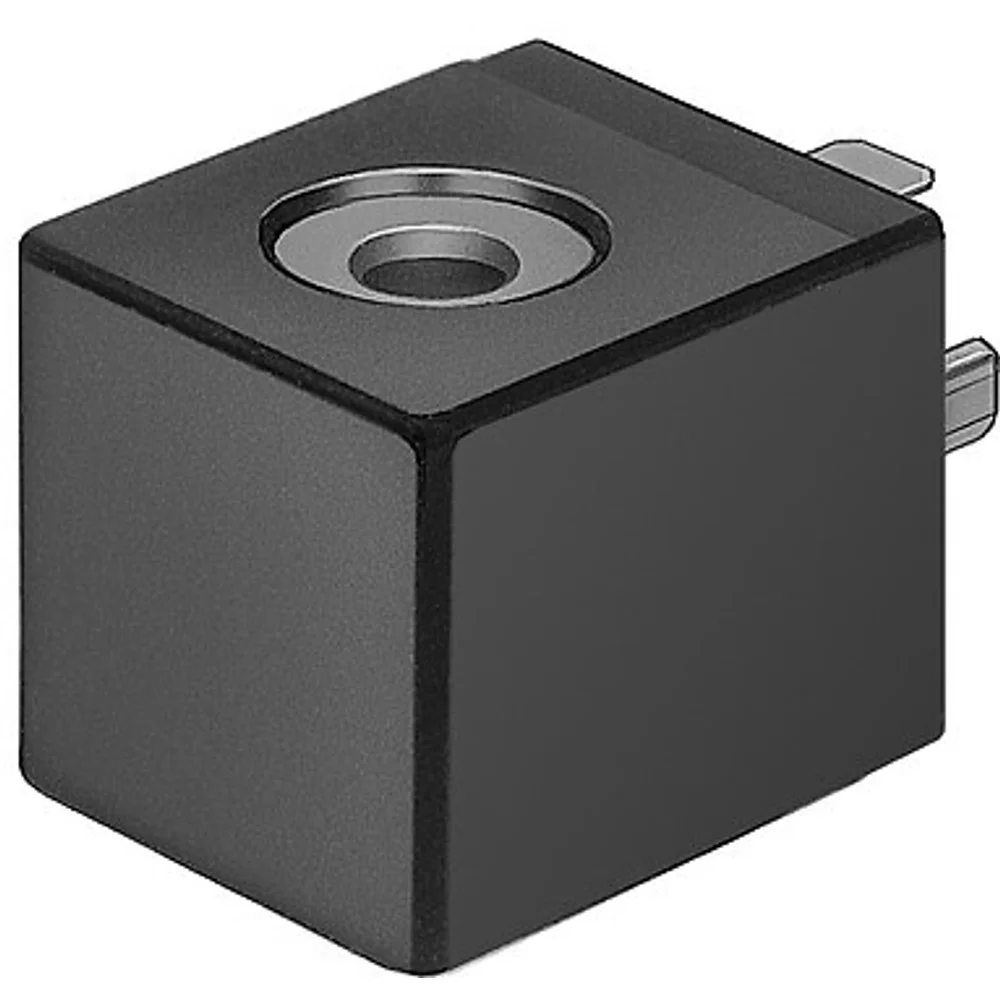

The Festo MSN1G-24DC-OD (Part No. 123060) is a 24V DC solenoid coil designed for Festo pneumatic directional control valves. With 2.5W power consumption, 100% duty cycle, and IP65 protection, it provides reliable actuation for industrial pneumatic systems. The coil features a 3-pin Type A electrical connection per DIN EN 175301-803 (plug socket not included, sold separately), and can be replaced without interrupting the pneumatic circuit. The PA (polyamide) housing with copper winding and steel pin contacts ensures durability in temperatures from -10°C to +50°C. Typical applications include valve actuation in factory automation, packaging machinery, process control, and any pneumatic system requiring reliable 24V DC solenoid operation.
**Q: Does the MSN1G-24DC-OD include the electrical plug socket?**
A: No, the coil does not include a plug socket. A separate Type A plug per DIN EN 175301-803 must be ordered (e.g., Festo MSSD-C or MSSD-F series).
**Q: Can this coil be used with AC voltage?**
A: No, the MSN1G-24DC-OD is specifically for 24V DC. Festo offers AC voltage variants in other MSN1 series coils.
**Q: Can the coil be replaced without interrupting air supply?**
A: Yes, the coil is designed for replacement without interrupting the pneumatic circuit, minimizing downtime during maintenance.
**Q: What is the maximum ambient temperature for operation?**
A: The coil operates in ambient temperatures from -10°C to +50°C. For higher temperatures, consult Festo for high-temperature coil options.
