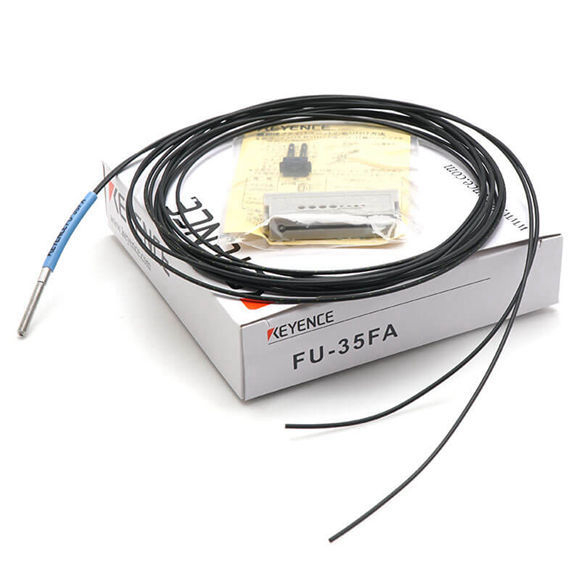

| Model | FU-35FA*1 |
| Size | M3 |
| Detection arrangement | Coaxial |
| Fibre unit length | 1 m39.37″ free-cut |
| Fibre unit diameter | ø1.3×2 |
| Shape | Straight |
| Minimum bend radius | R25 mm0.984″ |
| Minimum detectable object | Gold wire with a diameter of 0.005 mm0.0002″ *2 |
| Environmental resistance
Ambient temperature | -40 to +70 °C -40 to 158 °F |
| Weight | Approx. 6 g |
| Model | FU-35FG*1 |
| Size | M3 |
| Detection arrangement | Coaxial |
| Fibre unit length | 1 m39.37″ free-cut |
| Fibre unit diameter | ø1.3×2 |
| Shape | Straight |
| Minimum bend radius | R10 mm0.394″ , stainless |
| Minimum detectable object | Gold wire with a diameter of 0.005 mm0.0002″ *2 |
| Environmental resistance
Ambient temperature | -40 to +50 °C -40 to 122 °F |
| Weight | Approx. 15 g |
| Model | FU-35FZ*1 |
| Size | M3 |
| Detection arrangement | Coaxial |
| Fibre unit length | 1 m39.37″ free-cut |
| Fibre unit diameter | ø1.3×2 |
| Shape | Straight |
| Minimum bend radius | R2 mm0.079″ Tough-Flex |
| Minimum detectable object | Gold wire with a diameter of 0.005 mm0.0002″ *2 |
| Environmental resistance
Ambient temperature | -40 to +50 °C -40 to 122 °F |
| Weight | Approx. 6 g |
| Model | FU-35TG*1 |
| Size | M6 |
| Detection arrangement | Coaxial |
| Fibre unit length | 1 m39.37″ cannot be cut |
| Shape | Threaded |
| Minimum bend radius | R10 mm0.394″ , stainless |
| Minimum detectable object | Gold wire with a diameter of 0.005 mm0.0002″ *2 |
| Environmental resistance
Ambient temperature | -40 to +50 °C -40 to 122 °F |
| Weight | Approx. 32 g |
| Model | FU-35TZ*1 |
| Size | M3 |
| Detection arrangement | Coaxial |
| Fibre unit length | 1 m39.37″ free-cut |
| Fibre unit diameter | ø1.3×2 |
| Shape | Threaded |
| Minimum bend radius | R2 mm0.079″ Tough-Flex |
| Minimum detectable object | Gold wire with a diameter of 0.005 mm0.0002″ *2 |
| Environmental resistance
Ambient temperature | -40 to +50 °C -40 to 122 °F |
| Weight | Approx. 7 g |
