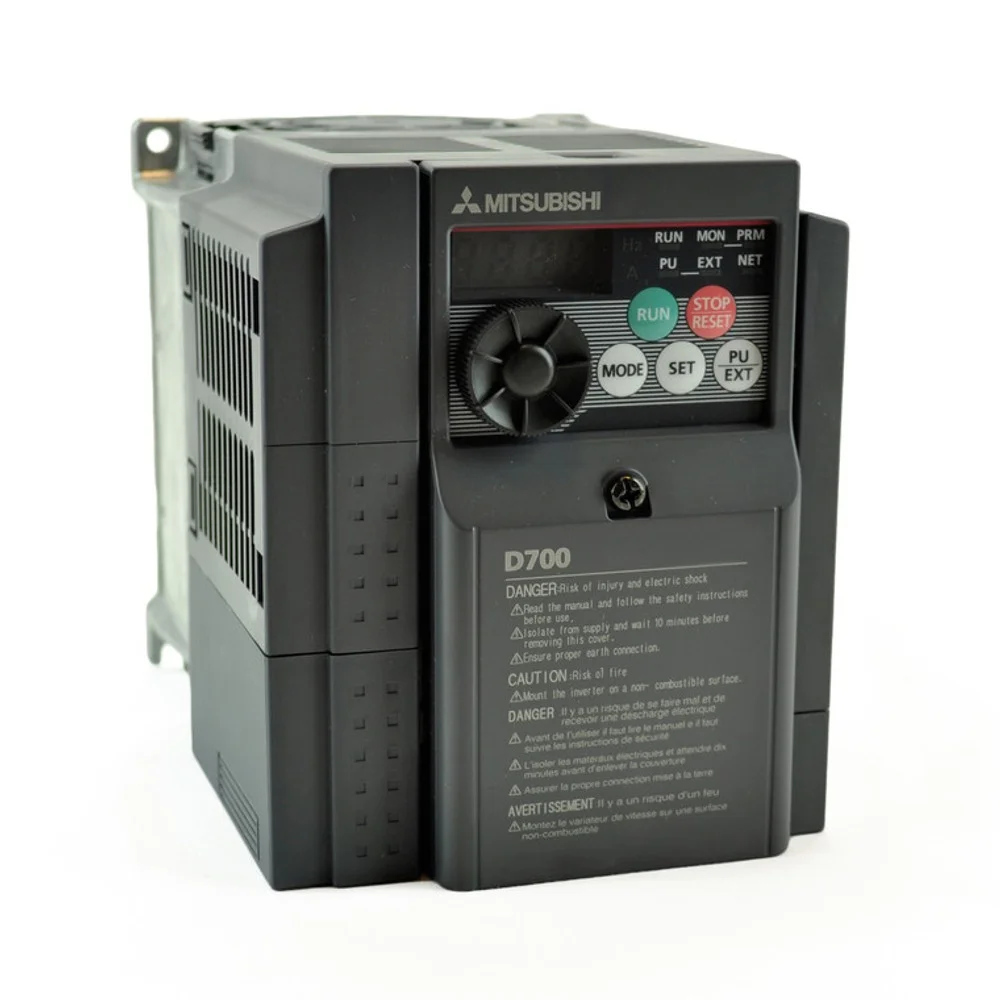

The Mitsubishi FR-D740-080SC-EC is a compact 3-phase variable frequency drive from the FREQROL D700 series, designed for general-purpose industrial motor control applications. It operates with 380-480VAC 3-phase input, delivering 3.7kW (5HP) rated power with 8A rated current. The D700 series features a built-in safety stop function compliant with EU safety standards (SC suffix indicates Safe Torque Off). Output frequency ranges from 0.2 to 400Hz, supporting both induction and permanent magnet motors. With IP20 protection rating, it is designed for cabinet mounting in industrial environments. Typical applications include conveyors, pumps, fans, mixers, packaging machinery, and material handling equipment. The FR-D700 series is known for its compact footprint, easy setup, and reliable performance in demanding industrial environments.
**Q: What does the "SC" suffix mean in FR-D740-080SC-EC?**
A: "SC" indicates Safe Torque Off (STO) safety function built-in. This is a safety feature that prevents the drive from producing torque during emergency stop conditions, compliant with EU Machinery Directive EN ISO 13849-1.
**Q: What is the required input voltage for this drive?**
A: The drive requires 380-480VAC 3-phase input. It is not suitable for single-phase operation. The "EC" designation indicates it meets European specifications including built-in EMC filter.
**Q: What is the typical replacement model for this D700 series?**
A: The FR-D700 series is a mature product line. The current equivalent is the Mitsubishi FR-E800 series, which offers expanded capabilities including built-in Ethernet and enhanced safety functions.
**Q: Can this drive be used with single-phase input?**
A: No, the FR-D740 is specifically designed for 3-phase input only. For single-phase applications, consider the FR-D720 series (single-phase 200-240VAC input).
**Q: What communication protocols are supported?**
A: The drive includes built-in RS-485 interface supporting Modbus RTU protocol. Optional communication option cards can add CC-Link, PROFIBUS, DeviceNet, or Ethernet capabilities.
**Q: Does the D700 series support permanent magnet motors?**
A: Yes, the FR-D700 series supports both induction motors and IPM/SPM permanent magnet motors through its advanced magnetic flux vector control mode.
