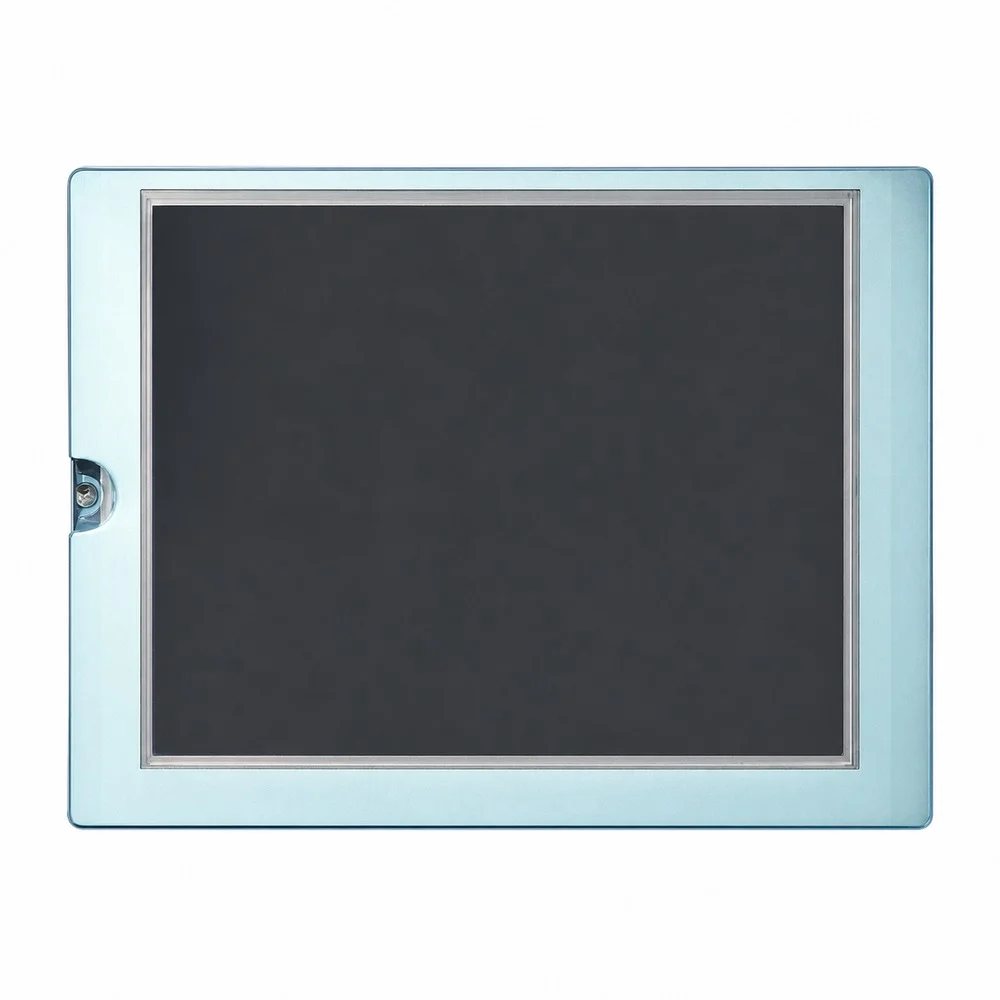

The Omron NS5-SQ11B is a 5.7-inch color TFT touch screen HMI from the NS series, featuring STN color LCD display with analog resistive touch panel. It offers 256-color display capability with a resolution of 320x240 pixels (QVGA). The NS5 supports connectivity to Omron PLCs (CJ, CS, CP series) via serial (RS-232/RS-422) and Ethernet interfaces, as well as third-party controllers through supported protocols. Programming is done via Omron CX-Designer software. With an IP65-rated front panel (when properly mounted), it withstands factory floor environments. Typical applications include packaging machine operator interface, production line monitoring and control, water treatment plant SCADA terminal, food and beverage process visualization, and machinery diagnostic display panels.
**Q: What is the replacement for the NS5-SQ11B?**
A: The NS series is a mature product line. Current replacements include the Omron NB series (NB5Q-TW01B) for basic applications, or the NA series (NA5-7W001) for advanced visualization with Sysmac Studio integration.
**Q: What PLCs can the NS5 communicate with?**
A: The NS5 natively supports all Omron PLC series (CJ1, CJ2, CS1, CP1, CQM1) via serial host link or NT Link protocols. Ethernet connectivity to CJ2/CS1 Ethernet units is also supported with the optional Ethernet interface.
**Q: Can I migrate an NS5 project to a newer Omron HMI?**
A: Projects created in CX-Designer for NS series cannot be directly opened in Sysmac Studio (for NA series). However, CX-Designer projects can be converted to NB-Designer format for migration to the NB series with some manual adjustments for screen layout and communication settings.
**Q: What does the SQ11B suffix indicate?**
A: SQ = STN color LCD with touch panel. 11 = configuration variant (serial ports and options). B = black frame color. Different suffix combinations offer variations in display type, communication interfaces, and frame color.
