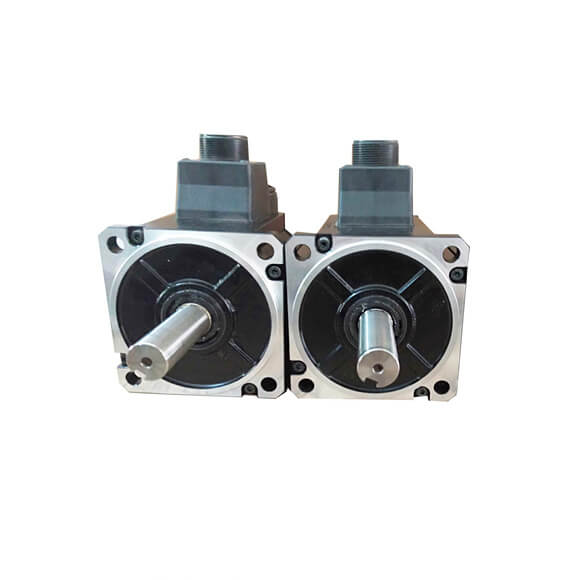

Panasonic Servo Motor MINAS A5 1KW MSME102GCG/MSME102GCGM

Series#: Panasonic Servomotor

Panasonic Servo Motor MINAS A5 1KW MSME102GCG/MSME102GCGM
We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
100% Original and new,In stock by Panasonic Electric
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Availability:



Inquire

Product Description

Series#: Panasonic Servomotor

Panasonic Servo Motor MINAS A5 1KW MSME102GCG/MSME102GCGM
We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.

Download A Munual

Panasonic Servo Motor MINAS A5	AC200 V
Panasonic Servo Motor MINAS A5 MSME	MSME102GC□	MSME102SC□
Panasonic Servo Motor MINAS A5 MSME	MSME102G1□	MSME102S1□
Applicable driver ＊2 A5Ⅱ, A5 series	MDD◇T5540
A5ⅡE, A5E series	MDD◇T5540E	–
Frame symbol	D-frame
Power supply capacity (kVA)	1.8
Rated output (W)	1000
Rated torque (N•m)	3.18
Momentary Max. peak torque (N•m)	9.55
Rated current (A(rms))	6.6
Max. current (A(o-p))	28
Regenerative brake frequency (times/min) Note)1 Without option	No limit Note)2
DV0P4284	No limit Note)2
Rated rotational speed (r/min)	3000
Max. rotational speed (r/min)	5000
Moment of inertia of rotor (×10−4 kg•m2) Without brake	2.03
With brake	2.35
Recommended moment of inertia ratio of the load and the rotor Note)3	15 times or less
Rotary encoder specifications Note)5	20-bit Incremental	17-bit Absolute
Resolution per single turn	1048576	131072

Relevant documents

Panasonic-minas-a5-servomotor-datasheet.pdf
