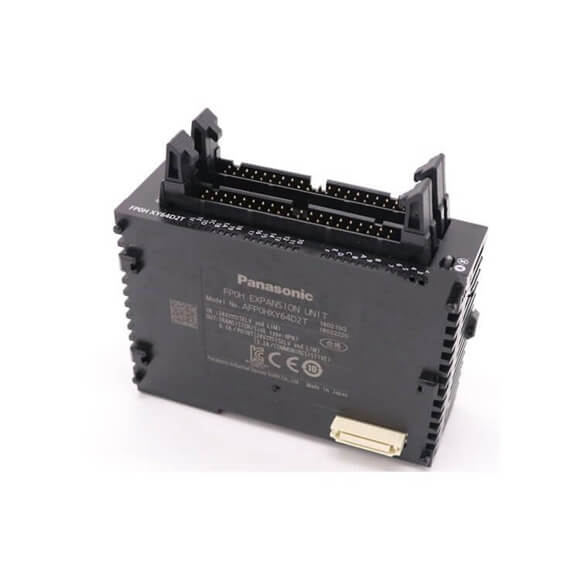

Panasonic plc FP0H Extended I/O unit AFP0HXY64D2T AFP0HXY64D2P

Series#: Panasonic plc

Panasonic plc FP0H Extended I/O unit AFP0HXY64D2T AFP0HXY64D2P
We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor,Panasonic HMI,Panasonic VFD and Panasonic Sensors and Panasonic Relays So on,
100% Original and new,In stock by Panasonic PLC
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Availability:



Inquire

Specification

Series#: Panasonic plc

Panasonic plc FP0H Extended I/O unit AFP0HXY64D2T AFP0HXY64D2P
We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor,Panasonic HMI,Panasonic VFD and Panasonic Sensors and Panasonic Relays So on

Download A Munual

Item	Specifications
Ambient temperature	0 to +55 °C +32 to +131 °F, At storage: -20 to +70 °C – 4 to +158 °F
Ambient humidity	30 to 85 % RH (at +25 °C +77 °F, no dew condensation allowed), At storage: 30 to 85 % RH (at +25 °C +77 °F, no dew condensation allowed)
Breakdown voltage (Detection current: 5 mA)	500 V AC for 1 minute Input and output terminals ⇔ power and functional ground terminals (at control unit) Input terminals ⇔ Output terminals
Insulation resistance (Test voltage: 500 V DC)	100 MΩ or more Input and output terminals ⇔ power and functional ground terminals (at control unit) Input terminals ⇔ Output terminals
Vibration resistance	10 to 55 Hz, 1 sweep/min., double amplitude of 0.75 mm, 10 minutes each in X, Y, and Z directions
Shock resistance	98 m/s2, 4 times each in X, Y, and Z directions
Noise immunity	1,000 V (p-p) with pulse widths 50 ns and 1 μs (using a noise simulator)
Operating condition	Free from corrosive gasses and excessive dust
Net weight	100 g approx.
Control unit’s additional consumption current	35 mA or less (at 24 V DC) [100 mA or less (internal 5 V DC)]

Relevant documents

Panasonic-plc-fp0h_e_cata.pdf
