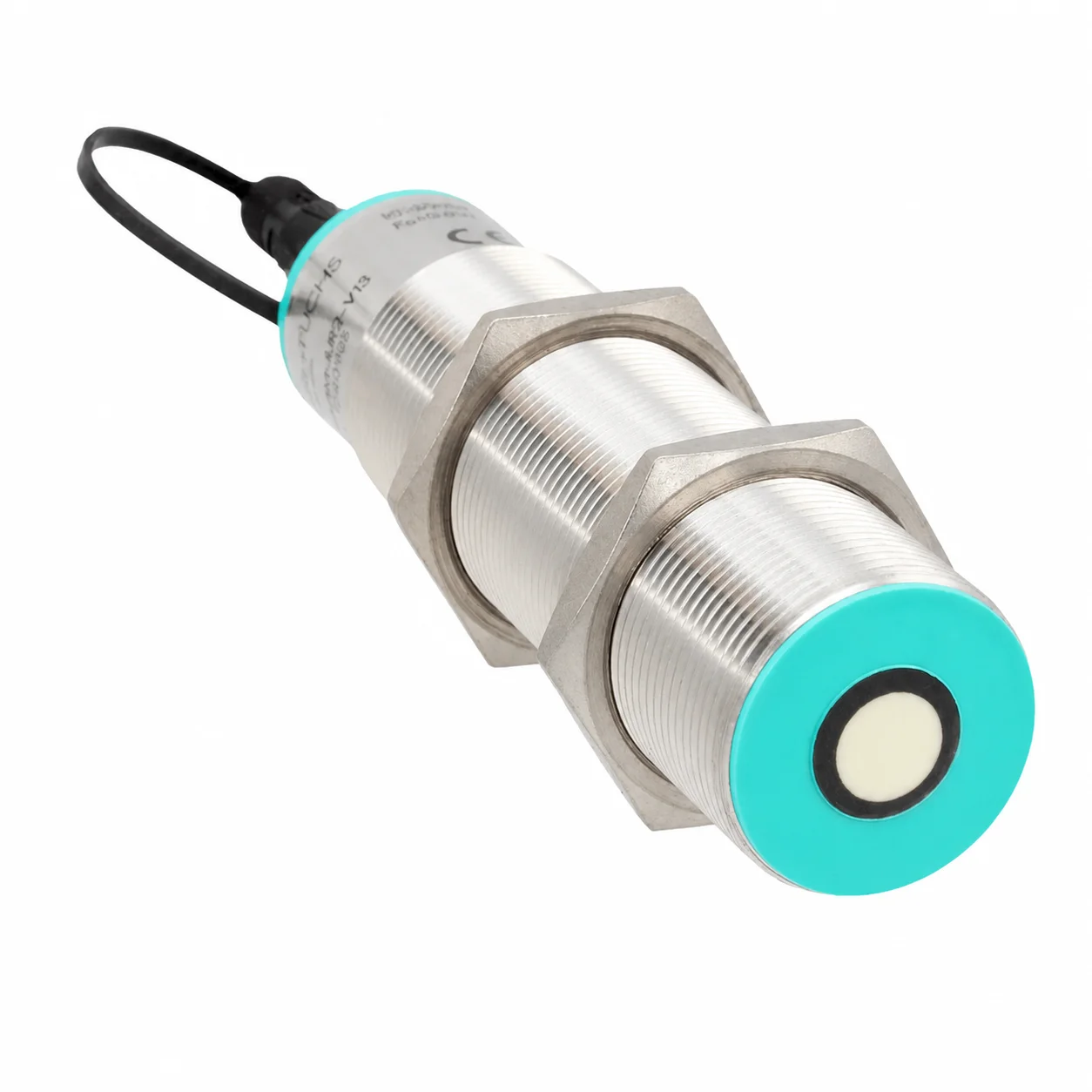

The Pepperl+Fuchs UC500-30GM-IUR2-V15 is an M30 cylindrical ultrasonic proximity sensor operating in diffuse mode with a sensing range of 30-500 mm. It provides simultaneous analog outputs: 4-20 mA current and 0-10V voltage, with resolution up to 0.05 mm and repeat accuracy ≤0.1% of full scale. The sensor features a 380 kHz transducer, RS-232 parameterization interface (ULTRA 3000 software), temperature compensation, and bi-directional synchronization for multi-sensor installations. The stainless steel housing (1.4305) with IP65 rating makes it suitable for harsh environments. Ultrasonic technology detects objects regardless of color, transparency, gloss, or surface texture. Applications include liquid/solid level measurement, transparent object detection (glass/plastic bottles), presence sensing, stack height control, loop control in converting/packaging, and collision avoidance for automated guided vehicles.
**Q: Can the UC500-30GM-IUR2-V15 detect transparent objects?**
A: Yes, ultrasonic sensors detect objects based on sound wave reflection and are unaffected by color, transparency, or gloss, making them ideal for glass bottles, clear plastic, and shiny metal surfaces.
**Q: How do I configure the sensor's sensing range?**
A: The sensor can be programmed via the ULTRA 3000 service software through the RS-232 interface, or via teach-in functions using the programming input.
**Q: Can multiple UC500 sensors be mounted close together?**
A: Yes, the sensors support bi-directional synchronization. Up to 5 sensors can operate in multiplex mode at ≤95/n Hz to prevent mutual interference.
**Q: What is the difference between the IUR2 and other UC500 variants?**
A: The IUR2 variant provides dual analog outputs (4-20mA + 0-10V) with RS-232 parameterization. Other variants may offer switch outputs (IUB), different ranges, or single analog outputs.
