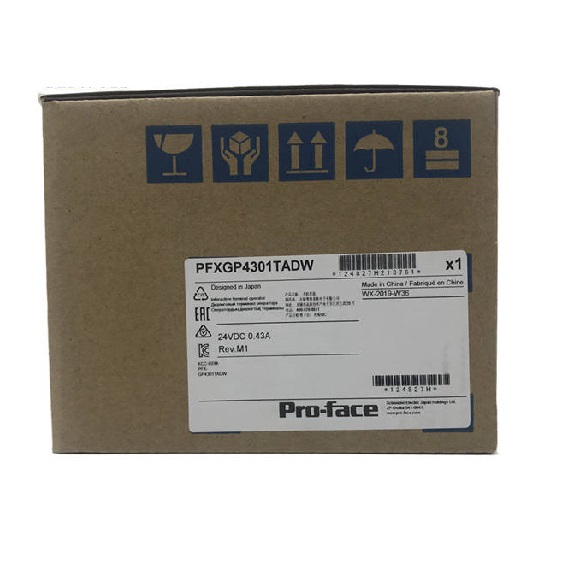

| Specifications | Proface Touch screen HMI PFXGP4301TADR PFXGP4301TAD PFXGP4303TAD |
|
| Model | PFXGP4301TAD, | PFXGP4303TAD |
| Graphics Display Resolution | 320 x 240 pixels (QVGA) |
|
| Display Type and Size | TFT Color LCD (5.7 inch) |
|
| Display Colors | 65,536 Colors (no blink), 16,384 (blink) |
|
| Display Area | W115.2 x H86.4 mm [W4.54 x H3.40 in.] |
|
| Touch Screen | Resistive film analog 1024 x 1024 resolution |
|
| USB | USB Type-A (2.0) x 1 , USB mini-B (2.0) x1 |
|
| SD Card | SD Card slot x 1 (maximum 32 GB SD/SDHC Card) |
|
| Serial | COM1: RS-232C Asynchronous Transmission Data Length: 7 or 8 bit, Parity: none, odd or even, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug) |
|
| COM 2: RS-422/485 Asynchronous Transmis- sion Data Length: 7 or 8 bit Parity: none, Odd or Even Stop Bit: 1 or 2 bit Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug) | COM 2: RS-485 (isolation) Asynchronous Transmission Data Length: 7 or 8 bit Parity: none, even or odd Stop Bit: 1 or 2 bit Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5 kbps (MPI) Connector: D-Sub9 (socket) |
| Ethernet | Ethernet IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX |
|
| Backlight | White LED (User nonreplaceable parts. When replacement is required, contact your local distributor. |
|
| Brightness and Contrast Controls | 16 levels of adjustment available via touch panel |
|
| Application Memory | 16MB FEPROM (GP-Pro EX V3.0 or later) |
|
| Backup Memory | 512kb SRAM with battery backup |
|
