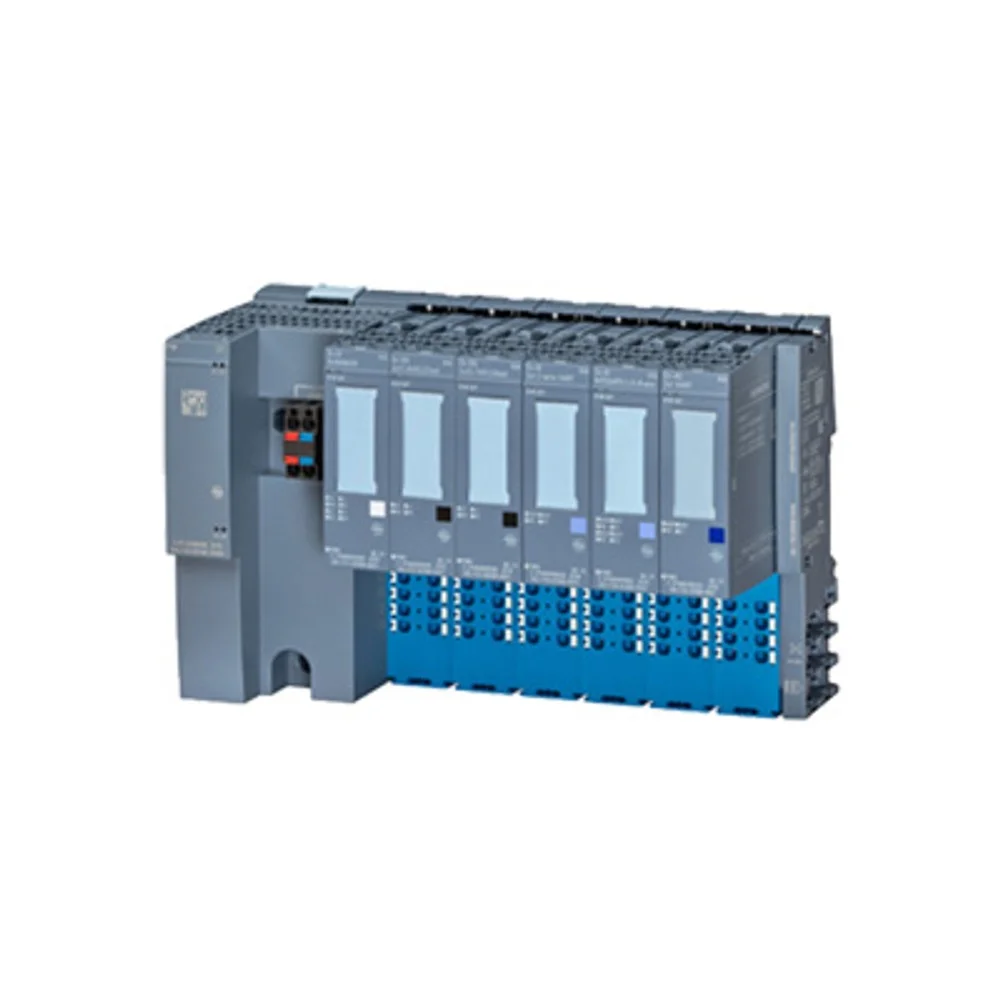

The Siemens SIMATIC ET 200SP HA AI 8xI 2-/4-wire HF (6DL1131-6BH00-0PH1) is a high-feature analog input module designed for the ET 200SP High Availability distributed I/O system. It provides 8 single-channel analog inputs supporting both 2-wire and 4-wire transducer connections, with integrated HART communication (HART 5 to HART 7) on all channels. The module offers 16-bit resolution with current input ranges of 0-20 mA, 4-20 mA, and +/-20 mA. Individual channel diagnostics include wire break, overflow/underflow, and power supply monitoring. Designed for process industries requiring maximum system availability, the module supports redundant PROFINET configurations with S7-410 controllers. Typical applications include oil & gas, chemical processing, power generation, and other mission-critical process automation environments where downtime is not acceptable.
FAQ
Q: What BaseUnit is required for this module?
A: A Red BaseUnit (Type A0 or B0) must be used, such as 6ES7193-6FRB30-0AA0. Standard ET 200SP BaseUnits are not compatible with HA modules.
Q: Does this module support HART communication?
A: Yes, all 8 channels support HART 5 through HART 7 protocol for field device configuration and monitoring.
Q: Can this module be used in a redundant system?
A: Yes, it is specifically designed for H-System (High Availability) redundant configurations with S7-410 controllers and IM 155-6 PN/2 HF interface modules.
Q: What input types are supported?
A: Current inputs: 0-20 mA, 4-20 mA, 4-20 mA HART, and +/-20 mA. 2-wire and 4-wire transducer connections are supported.
Q: Is an external sensor power supply required?
A: Yes, an external supply is required, typically provided via a separate voltage module or the BaseUnit in the ET 200SP HA configuration.
Q: What safety certifications does this module have?
A: The module is designed for process automation safety applications and is suitable for redundant SIL-rated systems when properly configured.
