ATS22C14Q
Schneider Electric

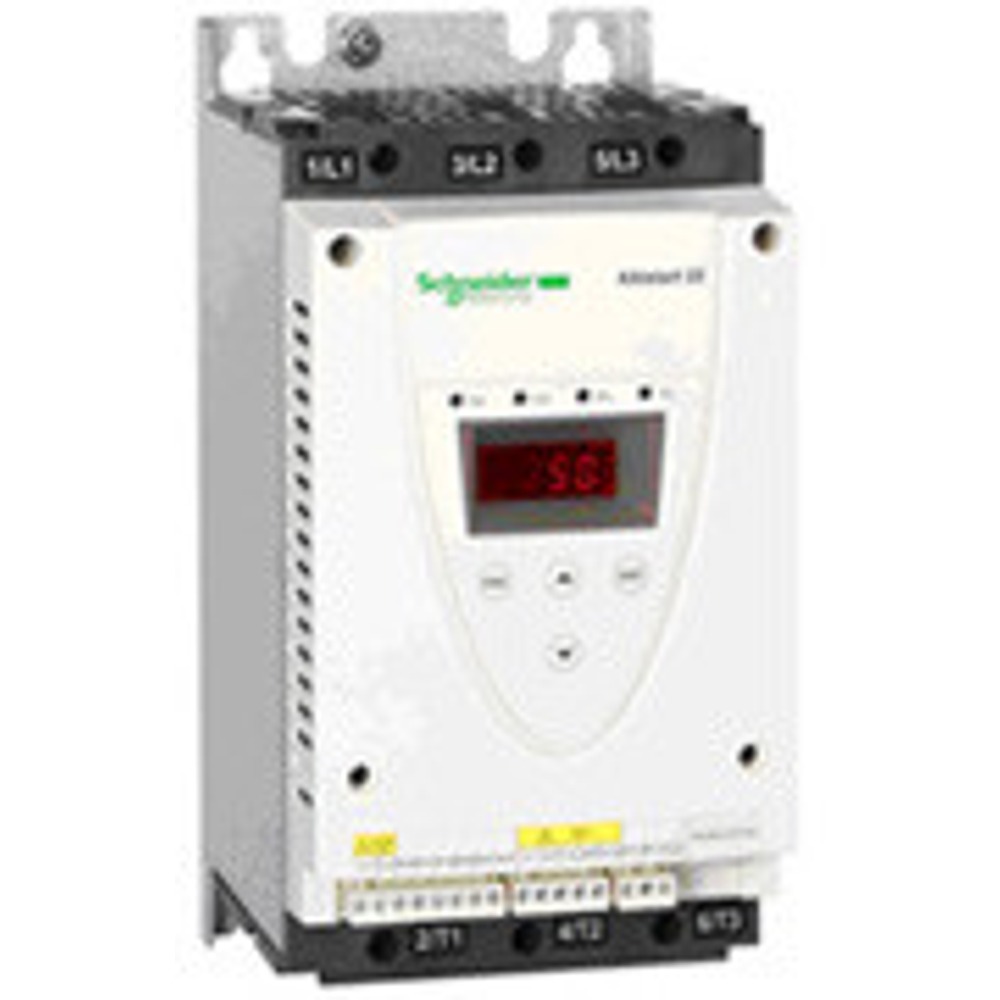

The Schneider Electric ATS22C14Q is an Altistart 22 series soft starter rated for 140A continuous current (75kW at 400V in-line, 110kW inside delta). It features torque control starting with current limit, built-in bypass contactor, thermal motor protection (Class 10/20/30), and Modbus RTU communication. Designed for centrifugal pumps, fans, screw compressors, and material handling equipment. Note: this model is approaching end-of-life status at some distributors.
Q: What is the Schneider ATS22C14Q?
A: The ATS22C14Q is an Altistart 22 series soft starter from Schneider Electric, rated for 140A continuous current (75kW at 400V in-line). It provides torque-controlled soft starting with built-in bypass.
Q: What are the electrical specifications?
A: Supply voltage 230–440V AC, rated current 140A (factory 131A), control 230V AC. In-line power: 37kW@230V, 75kW@400V. Inside delta: 55kW@230V, 110kW@400V.
Q: Is this model still in production?
A: The ATS22C14Q is listed as "Last Time Buy" at several distributors, indicating it may be approaching end-of-life. Check current availability with Schneider Electric.
Q: What are the physical dimensions?
A: 356 × 150 × 229.5 mm (H×W×D), weighing 18 kg. IP00, forced convection cooling.
Schneider Electric ATS22C21Q | |
Altistart 22 Soft Starter | 210A / 110kW@400V | |
Feature | Specification |
Manufacturer | Schneider Electric |
Model Number | ATS22C21Q |
Product Series | Altistart 22 |
Rated Supply Voltage (Us) | 230–440V AC (-15%/+10%) |
Supply Voltage Limits | 195–484V |
Network Frequency | 45–66 Hz (50/60 Hz nominal) |
Rated Operational Current (Ie) | 210 A (at 40°C) |
Factory Setting Current | 195 A |
Control Circuit Voltage (Uc) | 230V AC (-15%/+10%), 50/60 Hz |
Control Circuit Consumption | 20 W |
Power Dissipation | 117 W (standard applications) |
Utilisation Category | AC-53A |
Motor Power In-Line @ 230V | 55 kW |
Motor Power In-Line @ 400V | 110 kW |
Motor Power Inside Delta @ 230V | 90 kW |
Motor Power Inside Delta @ 400V | 160 kW |
Start Type | Torque control with current limit (3.5× In) |
Internal Bypass | Yes (built-in) |
Display | No |
Motor Overload Protection | Thermal, Class 10/20/30 selectable |
Discrete Inputs | 3 (LI1, LI2, LI3) – 24V DC, positive logic |
Relay Outputs | 2 (R1, R2) – C/O contacts, 230V programmable |
Max Switching Current | 5A (250V AC resistive) / 2A (250V AC inductive) |
Communication | Modbus RTU, RS485 multidrop (RJ45) |
Baud Rates | 4800, 9600, or 19200 bps |
Max Devices on Bus | 31 |
PTC Probe Input | 750 Ω |
Dimensions (H×W×D) | 425 × 206 × 299 mm |
Weight | 33 kg |
IP Rating | IP00 |
Cooling | Forced convection (heat sink) |
Operating Temperature | −10°C to +40°C (no derating); up to +60°C with 2.2%/°C derating |
Storage Temperature | −25°C to +70°C |
Altitude | ≤1000m (no derating); ≤2000m with 2.2%/100m derating |
Humidity | 0–95% RH (non-condensing) |
Noise Level | 56 dB |
Pollution Degree | Level 2 (IEC 60664-1) |
Bus Bar | 30 mm wide, 5 mm thick, M12 bolt |
Tightening Torque | 57 N·m |
Certifications | CE, UL, CSA, CCC, GOST, C-Tick |
