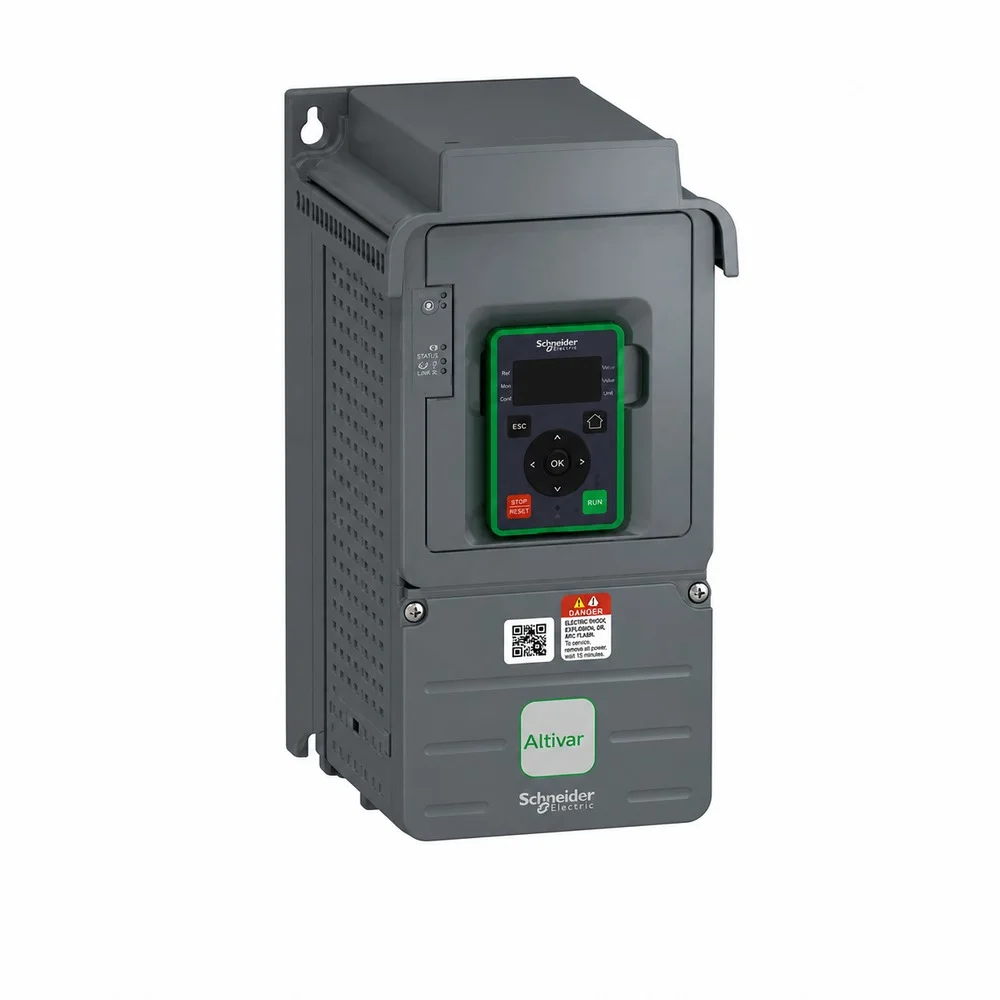

The Schneider ATV610D22N4 is a 22kW (30HP) VFD from the Altivar 610 "Easy" series, optimized for centrifugal pump and fan applications. Operating at 380-415VAC 3-phase, it features built-in PID control for pressure/flow regulation, integrated EMC filter, and Modbus communication. The ATV610 is designed for building automation and industrial utility applications where energy efficiency and simple commissioning are priorities. Applications: HVAC supply/return fans, cooling tower fans, chilled water pumps, booster pumps, air compressor control.
**Q: What is the difference between ATV610 and ATV320 ?**
A: ATV610 is optimized for fan/pump applications with built-in PID and dedicated HVAC functions. ATV320 is a general-purpose machine drive for conveyors, packaging, and material handling. ATV610 offers simpler commissioning but less flexibility for non-pump/fan applications.
**Q: Does the ATV610 support BACnet communication ?**
A: The base model includes Modbus RTU. BACnet MS/TP and BACnet/IP are supported via optional communication cards (VW3A3721 for BACnet).
