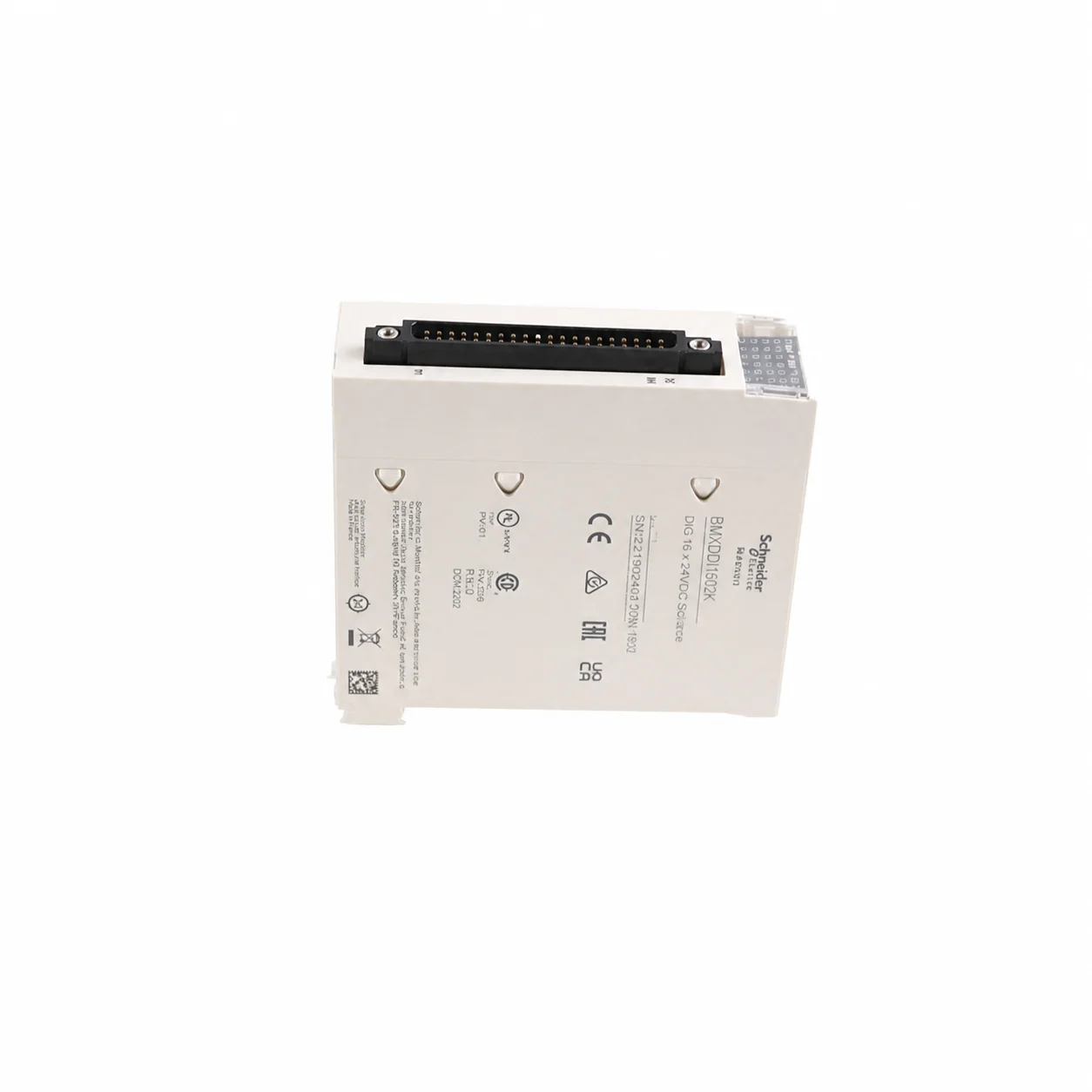

Schneider Electric BMXDDO3202K Modicon X80 Discrete Output Module, 32 Transistor Outputs, 24V DC, Source

Share to:

Schneider Electric BMXDDO3202K Modicon X80 Discrete Output Module, 32 Transistor Outputs, 24V DC, Source

Series#: Digital Output -> Schneider -> Modicon X80
- Schneider Electric BMXDDO3202K Modicon X80 Discrete Output Module, 32 Transistor Outputs, 24V DC, Source
- We have large inventory for Schneider Modicon X80/M340 modules and related accessories.
- 100% Original and new, In stock by Eaton Company.
- Delivery time: Ready in stock and 1 days for ship out
- MOQ: 1pcs

Availability:



Inquire

Model:
BMXDDO3202K
Brand:
Schneider Electric

Product Description

The BMXDDO3202K is a high-density 32-channel discrete transistor output module with 24V DC sourcing (PNP) solid-state outputs. Each output provides short-circuit and overload protection with individual per-channel LED status indicators. The 40-way removable terminal block enables high-density wiring in a single module slot. Compatible with Modicon M340 and M580 PACs, it is ideal for high-density actuator control, solenoid banks, indicator panels, and machine automation where maximizing output channels per rack slot is critical.

**Q: What is the difference between BMXDDO3202K and BMXDDO1602?**
A: The BMXDDO3202K provides 32 outputs (double the BMXDDO1602's 16) in the same physical space with a 40-way connector, but with lower per-channel current (0.1A vs 0.5A) optimized for signal-level actuation.

Technical Specifications

Schneider Electric BMXDDO3202K
Digital Output -> Schneider -> Modicon X80 \| Schneider Electric BMXDDO3202K Modicon X80 Discrete Output Module, 32 Transistor Outputs, 24V DC, Source
Feature	Specification
Feature	Specification
Product Range	Modicon X80 (M340/M580)
Product Type	Discrete Output Module
Number of Outputs	32
Output Type	Transistor, Sourcing (PNP), Solid State
Output Voltage	24V DC
Output Current per Channel	0.1 A
Protection	Short-circuit, overload per channel
Electrical Connection	40-way removable terminal block
Module Format	Standard
Operating Temperature	0 to 60°C
Protection Degree	IP20
Certifications	CE, UL, CSA
Discrete Output Voltage (rated)	24 V DC
Operating Voltage Range	19-30 V DC
Residual Voltage (state 1)	<= 1.5 V
Max Current per Channel	0.125 A
Max Total Current per Module	3.2 A
Leakage Current (state 0)	<= 0.1 mA
Response Time	1.2 ms
Power Dissipation	<= 3.6 W
Dielectric Strength	1500 V AC (output/ground & output/logic)
Net Weight	0.11 kg
Dimensions (WxHxD)	33 x 100 x 150 mm
MTBF	~312,000-360,000 hours
Operating Temperature	0 to 60 C
Storage Temperature	-40 to 85 C
Certifications	CE, UL, CSA, EAC, RCM, Merchant Navy
Standards	EN/IEC 61131-2, EN 61010-2-201
