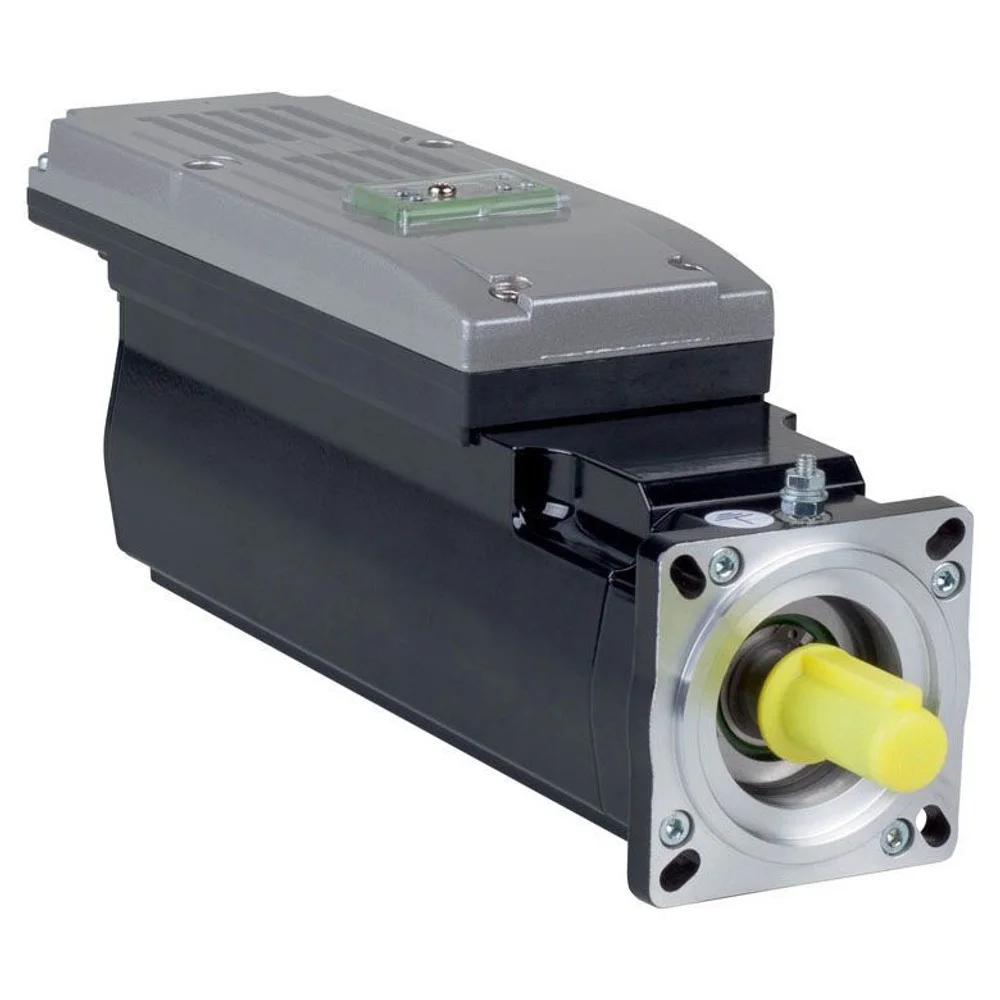

The Schneider Electric ILM0703P31A0000 is an integrated servo motor from the Lexium 62 ILM (PacDrive 3) series, combining servo drive electronics and motor in a single 70mm flange package. It delivers 720W rated power with 1.15 Nm rated torque (2.2 Nm continuous stall, 8.7 Nm peak) at speeds up to 6000 rpm. The motor features an absolute single-turn SinCos Hiperface encoder (128 periods/rev), SERCOS communication for PacDrive LMC controllers, parallel keyed shaft, and IP65 protection for harsh industrial environments. Operating from 250-700 VDC bus with 24V control power, this integrated drive eliminates separate drive cabinets and reduces wiring complexity in decentralized automation architectures. Typical applications include packaging machines, material handling systems, rotary tables, and general motion control where space savings and simplified wiring are priorities.
**Q: Does the ILM0703P31A0000 include a holding brake?**
A: No, the "A" in the part number indicates it is without a holding brake. For a brake-equipped version, look for models with a different brake code.
**Q: What controller is required for the ILM0703P31A0000?**
A: This integrated servo requires a PacDrive LMC controller communicating via SERCOS. It is not compatible with standard pulse/direction or analog command interfaces.
**Q: What is the advantage of an integrated servo motor?**
A: Integrated servos eliminate separate drive cabinets, reduce wiring (only power bus + control cables needed), and simplify machine design, especially for decentralized multi-axis systems.
**Q: Can this motor operate in washdown environments?**
A: The IP65 rating provides protection against water jets, making it suitable for many washdown applications, though full IP69K is not guaranteed.
