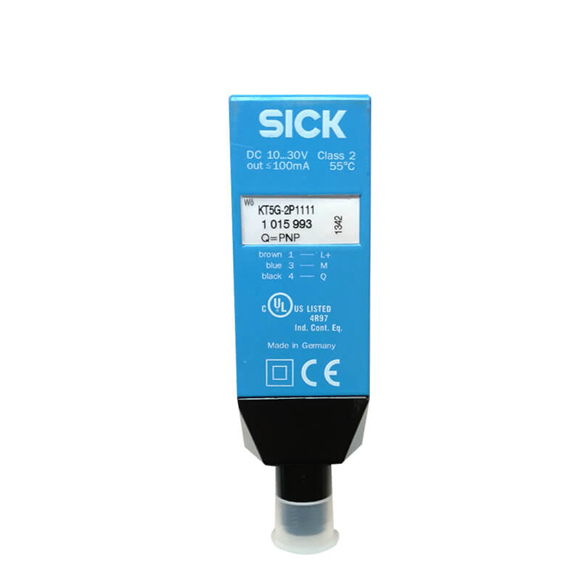

Sick Contrast Sensor KT5G-2P1111/-2P1114/-2P1112/-2P1311/-2P1151/-2P2111/-2P1121 /-2P1211

Series#: Sick Contrast Sensor

Adjustment: Potentiometer
We can Supply all kinds of Sick sensor parts,such as Sick Capacitive Proximity Sensors,Sick Contrast Sensors,Sick Fork Sensors,Sick Magnetic Proximity Sensors,Sick Photoelectric Sensors,Sick Distance Sensors and Sick Fiber Sensors.
All parts are 100% Original and new in stock by Sick and fast delivery time within 1 day
100% after sale service and technology Support
MOQ: 1pcs

Availability:



Inquire

Product Description

Series#: Sick Contrast Sensor

Adjustment: Potentiometer
We can Supply all kinds of Sick sensor parts,such as Sick Capacitive Proximity Sensors,Sick Contrast Sensors,Sick Fork Sensors,Sick Magnetic Proximity Sensors,Sick Photoelectric Sensors,Sick Distance Sensors and Sick Fiber Sensors.

Download a Munual

Dimensions (W x H x D)	30.4 mm x 53 mm x 80 mm
Sensing distance	10 mm 1)
Housing design (light emission)	Rectangular
Light source	LED, green 2)
Wave length	520 nm
Light emission	Long and short side of housing, exchangeable
Light spot size	1.2 mm x 4.2 mm
Light spot direction	Vertical 3)
Adjustment	Potentiometer
Output function	Light/dark switching
Supply voltage	10 V DC … 30 V DC 1)
Ripple	≤ 5 Vpp 2)
Power consumption	< 80 mA 3)
Switching frequency	10 kHz 4)
Response time	50 µs 5)
Switching output	PNP
Switching output (voltage)	PNP: HIGH = VS– ≤ 2 V / LOW approx. 0 V
Switching output	Light/dark switching
Output current Imax.	100 mA 6)
Connection type	Male connector M12, 4-pin
Protection class	II 7)
Circuit protection	UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression
Enclosure rating	IP67
Weight	400 g
Housing material	Metal, Zinc diecast

Relevant documents

dataSheet_KT5G-2P1111_1015993_en.pdf
