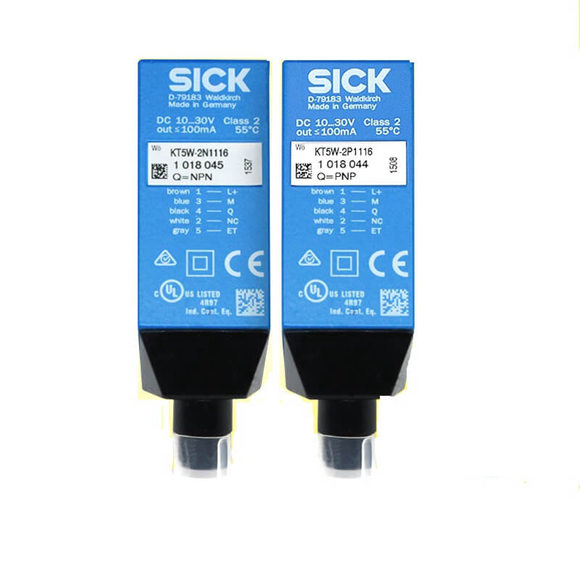

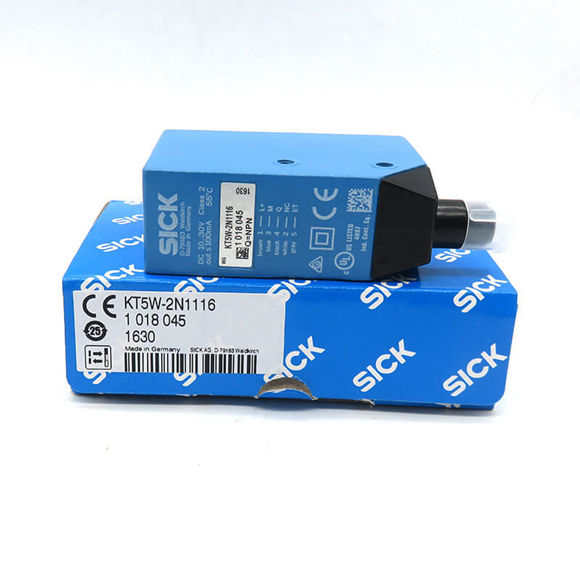

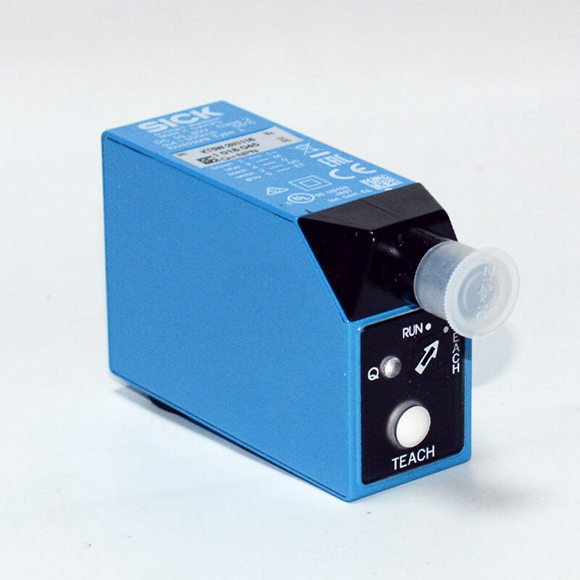

Sick Contrast Sensor KT5W-2N1116 KT5W-2N1116D KT5W-2P1116 KT5W-2P2116

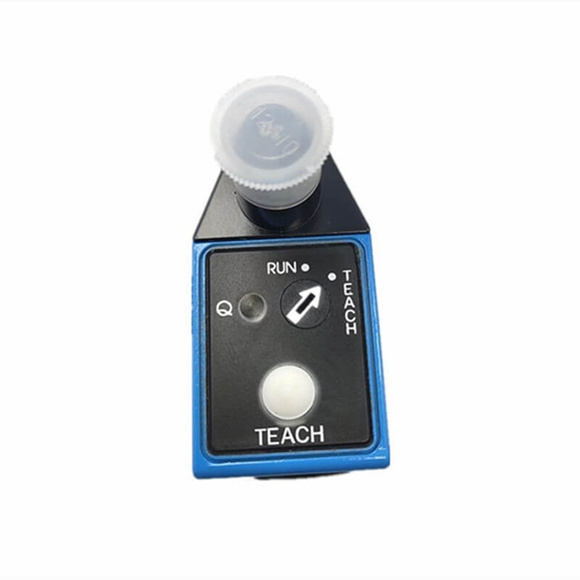

| Dimensions (W x H x D) | 30.4 mm x 53 mm x 80 mm |
| Sensing distance | 10 mm 1) |
| Housing design (light emission) | Rectangular |
| Light source | LED, RGB 2) |
| Wave length | 470 nm, 525 nm, 640 nm |
| Light emission | Long and short side of housing, exchangeable |
| Light spot size | 1.2 mm x 4.2 mm |
| Light spot direction | Vertical 3) |
| Adjustment | Teach-in button |
| Teach-in mode | Static 2-point teach-in |
| Supply voltage | 10 V DC … 30 V DC 1) |
| Ripple | ≤ 5 Vpp 2) |
| Power consumption | < 80 mA 3) |
| Switching frequency | 10 kHz 4) |
| Response time | 50 µs 5) |
| Switching output | NPN |
| Switching output (voltage) | NPN: HIGH = approx. VS / LOW ≤ 2 V |
| Output current Imax. | 100 mA 6) |
| Input, teach-in (ET) | NPN
Teach: U < 2 V Run: U = 10 V … < UV |
| Retention time (ET) | 25 ms, non-volatile memory |
| Connection type | Male connector M12, 5-pin |
| Protection class | II 7) |
| Circuit protection | UV connections, reverse polarity protected
Output Q short-circuit protected Interference pulse suppression |
| Enclosure rating | IP67 |
| Weight | 400 g |
| Housing material | Metal, Zinc diecast |
