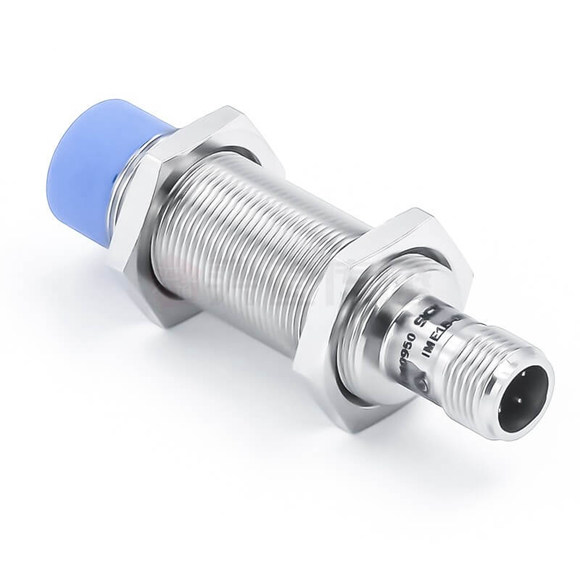

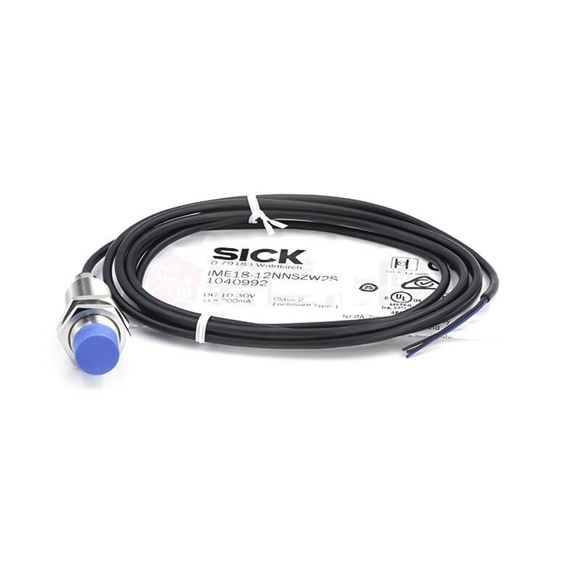

| Housing | Cylindrical thread design |
|
| Housing | Standard |
|
| Thread size | M18 x 1 |
|
| Diameter | Ø 18 mm |
|
| Sensing range Sn | 8 mm |
|
| Safe sensing range Sa | 6.48 mm |
|
| Installation type | Flush |
|
| Switching frequency | 1,000 Hz |
|
| Connection type | Cable, 3-wire, 2 m |
|
| Switching output | NPN |
|
| Output function | NO |
|
| Electrical wiring | DC 3-wire |
|
| Enclosure rating | IP67 1) |
|
| Supply voltage | 10 V DC … 30 V DC |
|
| Ripple | ≤ 10 % |
|
| Voltage drop | ≤ 2 V 1) |
|
| Current consumption | 10 mA 2) |
|
| Time delay before availability | ≤ 100 ms |
|
| Hysteresis | 5 % … 15 % |
|
| Reproducibility | ≤ 2 % 3) 4) |
|
| Temperature drift (of Sr) | ± 10 % |
|
| EMC | According to EN 60947-5-2 |
|
| Continuous current Ia | ≤ 200 mA |
|
| Cable material | PVC |
|
| Conductor size | 0.25 mm² |
|
| Cable diameter | Ø 3.9 mm |
|
| Short-circuit protection | ✔ |
|
| Reverse polarity protection | ✔ |
|
| Power-up pulse protection | ✔ |
|
| Shock and vibration resistance | 30 g, 11 ms/10 Hz … 55 Hz, 1 mm |
|
| Ambient operating temperature | –25 °C … +75 °C |
|
| Housing material | Brass, nickel-plated |
|
| Sensing face material | Plastic, PA 66 |
|
| Housing length | 67 mm |
|
| Thread length | 52 mm |
|
| Tightening torque, max. | ≤ 40 Nm |
|

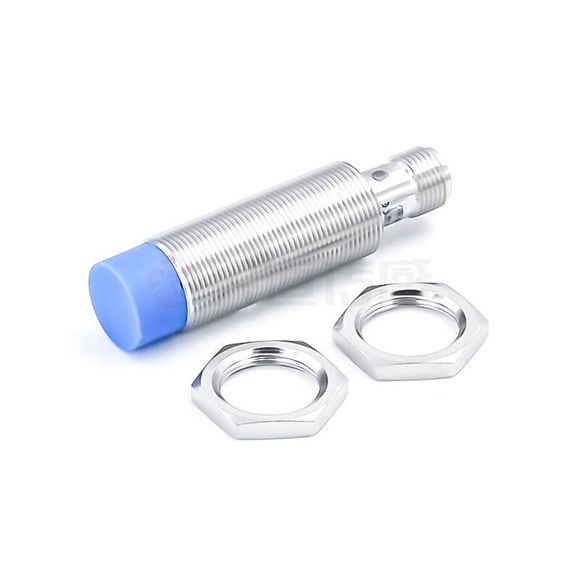

| Items supplied | Mounting nut, brass, nickel-plated (2x) |
|
| UL File No. | NRKH.E181493 |
|
