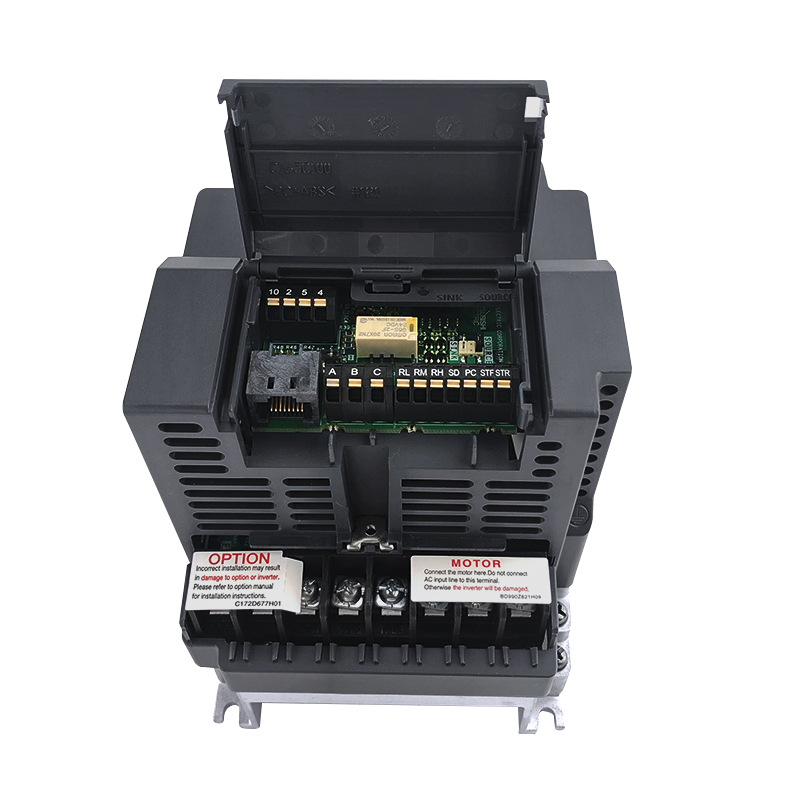

| Gwrthdröydd Mitsubishi VFDs |
FR-CS84 0.4kW i 15kW Dosbarth tri cham 400 V |
| Model FR-CS84-[] |
012 |
022 |
036 |
050 |
080 |
120 |
160 |
230 |
295 |
| Capasiti modur cymwys (kW) *1 |
0.4 |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
| Allbwn
Capasiti graddedig (kVA) *2 |
0.9 |
1.7 |
2.7 |
3.8 |
6.1 |
9.1 |
12.2 |
17.5 |
22.5 |
|
Cerrynt graddedig (A)*3 |
1.2(1.0) |
2.2(1.9) |
3.6(3.1) |
5. 0(4.3) |
8.0(6.8) |
12.0(10.2) |
16.0(13.6) |
23.0(19.6) |
29.5(25.1) |
| Gorlwytho sgôr gyfredol *4 |
150% 60 s, 200% 0.5 s (nodweddion gwrthdro-amser). |
| Foltedd graddedig *5 |
Tri cham 380 i 480 V. |
| Cyflenwad pŵer
Foltedd/amlder AC mewnbwn graddedig |
Tri cham 380 i 480 V, 50/60 Hz. |
| Amrywiad foltedd AC a ganiateir |
325 i 528 V, 50/60 Hz. |
| Amrywiad amlder a ganiateir |
±5% |
|
Capasiti cyflenwad pŵer (kVA) *6 |
1.5 |
2.5 |
4.5 |
5.5 |
9.5 |
12.0 |
17.0 |
20.0 |
28.0 |
| Strwythur amddiffynnol (IEC 60529) |
Math agored (IP20). |
| System oeri |
Naturiol. |
Awyr gorfodol. |
| Tua. màs (kg) |
0.6 |
0.6 |
0.9 |
0.9 |
1.4 |
1.9 |
1.9 |
3.5 |
3.5 |
| Model FR-CS82S-[] |
025 |
042 |
070 |
100 |
| Capasiti modur cymwys (kW) *1 |
0.4 |
0.75 |
1.5 |
2.2 |
| Capasiti graddedig (kVA) *2 |
1.0 |
1.7 |
2.8 |
4.0 |
| Cerrynt graddedig (A)*3 |
2.5(2.1) |
4.2(3.6) |
7.0(6.0) |
10.0(8.5) |
| Gorlwytho sgôr gyfredol *4 |
150% 60 s, 200% 0.5 s (nodweddion gwrthdro-amser). |
| Foltedd graddedig *5 |
Tri cham 200 i 240 V |
| Cyflenwad pŵer
Foltedd/amlder AC mewnbwn graddedig |
Un cam 200 i 240 V, 50/60 Hz |
| Amrywiad foltedd AC a ganiateir |
170 i 264 V, 50/60 Hz |
| Amrywiad amlder a ganiateir |
±5% |
| Capasiti cyflenwad pŵer (kVA) *6 |
1.5 |
2.3 |
4.0 |
5.2 |
| Strwythur amddiffynnol (IEC 60529) |
Math agored (IP20). |
| System oeri |
Naturiol. |
Awyr gorfodol. |
| Tua. màs (kg) |
0.6 |
0.6 |
1.4 |
1.4 |
