Sraith#: Motor Servo Delta

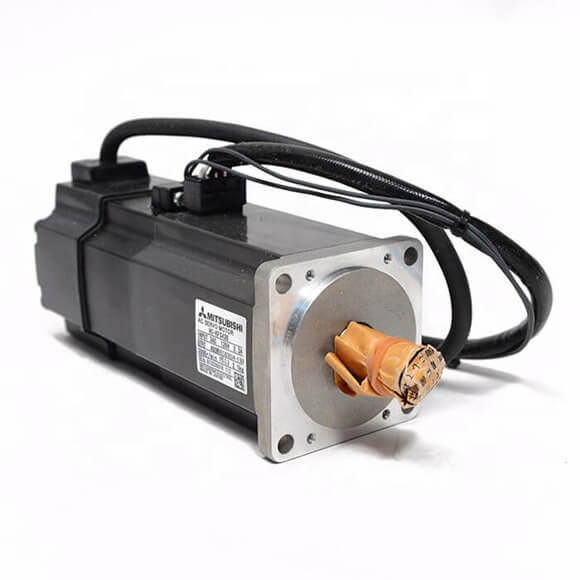

Mitsubishi Melservo-J2S Servomotor le sos 400W HC-KFS43B
Is féidir linn páirteanna uathoibrithe leictreacha Mitsubishi a sholáthar, mar Mitsubishi Plc, Mitsubishi Servo Motor & Mitsubishi Servo Drive, Mitsubishi HMI, Mitsubishi VFD agus mar sin de
![]()
Íoslódáil Munual
| Mitsubishi Melservo-J2S Servomotor |
Sraith HC-KFS (táimhe íseal, acmhainn bheag) |
Sraith treoluas ard-ard HC-KFS (táimhe íseal, acmhainn bheag) |
Mitsubishi Servo Motor HC-KFS |
053 (b) |
13 (b) |
23 (b) |
43 (b) |
73 (b) |
46 |
410 |
| Samhail Servo-Amp (Nóta 9) MR-J2S- |
10a (1)/b (1)/cp (1)/cl (1) |
20a (1)/b (1)/cp (1)/cl (1) |
40a (1)/b (1)/cp (1)/cl (1) |
70A/B/CP/CL (Nóta 10) |
70A/B/CP/CL-U005 |
70A/B/CP/CL-U006 |
Cumas na Saoráide Cumhachta (Nóta 2) (KVA) |
0.3 |
0.3 |
0.5 |
0.9 |
1.3 |
0.9 |
0.9 |
| Aschur Rátáilte (W) |
50 |
100 |
200 |
400 |
750 |
400 |
| Chasmhóimint rátáilte (n · m [oz · in]) |
0.16 (22.7) |
0.32 (45.3) |
0.64 (90.6) |
1.3 (184.1) |
2.4 (339.8) |
0.64 (90.6) |
0.38 (53.8) |
| Uasta chasmhóiminte (n · m [oz · in]) |
0.48 (68.0) |
0.95 (134.5) |
1.9 (269.0) |
3.8 (538.1) |
7.2 (1019.5) |
2.87 (406.4) |
1.91 (270.5) |
| Luas rátáilte (r/min) |
3000 |
6000 |
10000 |
| Luas uasta (r/min) |
4500 |
6000 |
10000 |
| Luas mheandarach incheadaithe (r/min) |
5175 |
6900 |
11500 |
| Ráta cumhachta ag chasmhóimint rátáil leanúnach (kw/s) |
4.78 |
12.1 |
15.8 |
36.7 |
37.7 |
6.4 |
3.1 |
| Reatha Rátáilte (A) |
0.83 |
0.71 |
1.1 |
2.3 |
5.8 |
2.9 |
2.9 |
| An sruth uasta (a) |
2.5 |
2.2 |
3.4 |
6.9 |
18.6 |
12.9 |
14.5 |
| Cóimheas Móta Móta Móta/Mótair Mótair (Nóta 6) |
Max. 15 huaire |
Max. 24 uair |
Max. 22 uair |
Max. 15 huaire |
| Brathadóir luais/suímh |
Ionchódóir 17-giotán (Rún in aghaidh an ionchódóra/rothlú mótair servo: 131072 P/rev) |
| Ceangaltán |
- |
| Struchtúr |
Neamh -aeráilte go hiomlán (Leibhéal Cosanta: IP55) (Nóta 1, 7) |
| Aifreann (kg [lb])
Caighdeánach |
0.4 (0.88) |
0.53 (1.17) |
0.99 (2.18) |
1.45 (3.19) |
3.0 (6.61) |
1.5 (3.30) |
1.5 (3.30) |
| Le coscán leictreamaighnéadach |
0.75 (1.65) |
0.89 (1.96) |
1.6 (3.53) |
2.1 (4.63) |
4.0 (8.81) |
- |
- |
