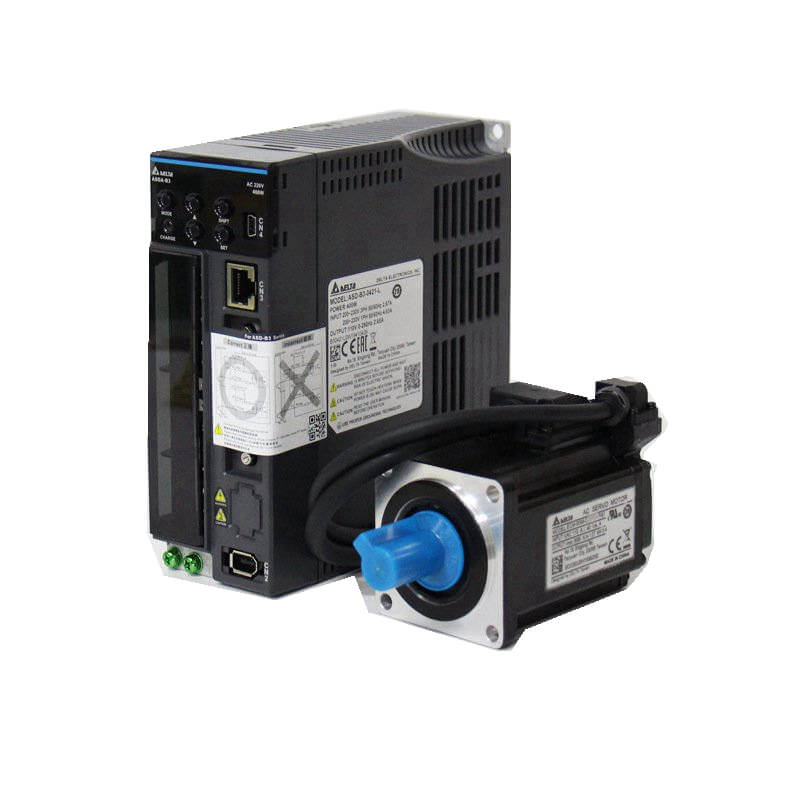

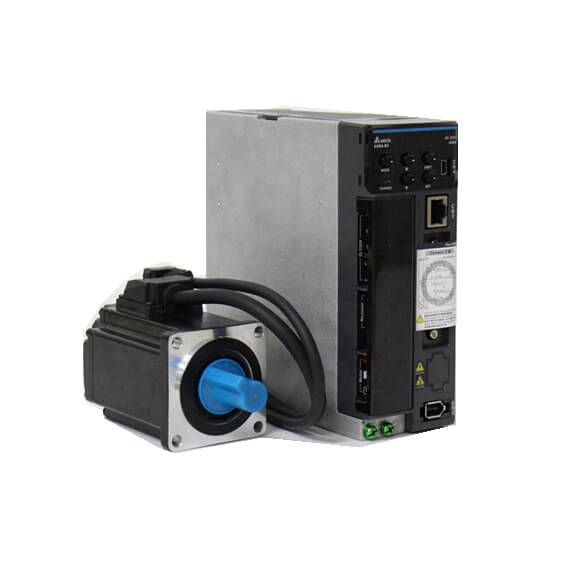

Delta ASDA-B3 Servo Drive & Motor Set 400W ASD-B3-0421-L+ECM-B3M-20604RS1

Seri #: Delta Servo Motor

Delta ASDA-B3 Servo Drive & Motor Set 400W ASD-B3-0421-L+ECM-B3M-20604RS1
Nou ka bay Delta pati automatisation elektrik, tankou Delta PLC, Delta Servo Motor, Delta HMI, Delta VFD ak sou sa,
100% orijinal ak nouvo, nan stock pa Delta Electric
Tan livrezon: Pare nan stock ak 1 jou pou bato soti
MOQ: 1pcs

Disponibilite:



Mande

Deskripsyon Product

Seri #: Delta Servo Motor

Delta ASDA-B3 Servo Drive & Motor Set 400W ASD-B3-0421-L+ECM-B3M-20604RS1
Nou ka bay Delta pati automatisation elektrik, tankou Delta PLC, Delta Servo Motor, Delta HMI, Delta VFD ak sou sa.

Telechaje yon Munual

Delta ASD-B3 servo Drive	100 W	200 W	400 W	750 W	1 kW	1.5 kW	2 kW	3 kW
Delta ASD-B3 servo Drive	01	02	04	07	10	15	20	30
Faz / Voltage	Single-faz / twa-faz 220VAC						Twa-faz 220VAC
Voltage admisib	Single-faz / Twa-faz 200 - 230VAC, -15% a 10%						Twa-faz 200 - 230VAC, -15% a 10%
Antre Kouran (3PH) (Inite: Zam)	0.81	1.61	4.32	8.76	9.21	9.72	14.7	16.68
Antre Kouran (1PH) (Inite: Zam)	1.39	2.77	8.28	16.68	17.49	18.72
Kouran pwodiksyon kontinyèl (Inite: zam)	0.9	1.55	2.65	5.1	7.3	8.3	13.4	19.4
Max. Kouran pwodiksyon Enstantane (Inite: Arms)	3.88	7.07	10.6	16.4	21.21	27	38.3	58.9
Metòd refwadisman	Refwadisman natirèl				Refwadisman fanatik
Kondwi Rezolisyon	24-bit (16,777,216 pls / rev)
Kontwòl sikwi prensipal la	SVPWM kontwòl
Akor mòd	Oto / Manyèl
Rezistans rejeneratif	N/A		Bati-an
Kalite batman kè (sèlman pou mòd kontwòl batman kè)	Pulsasyon + Direksyon; A faz + B faz; CCW batman kè + CW batman kè
Max. Sòti Frekans batman kè (sèlman pou mòd kontwòl batman kè)	Pulsasyon + direksyon: 4 Mpps; CCW batman kè + CW batman kè: 4 Mpps; A faz + B faz: sèl-faz 4 Mpps; Louvri pèseptè: 200 Kpps
Kòmand Sous	Batman kè ekstèn (sèlman pou mòd kontwòl batman kè) / Entèn enskri (mòd PR)
Metòd lisaj	Filtè ki pase ba, koub S, ak filtè k ap deplase
E-Gear rapò	E-Gear rapò: N / M fwa, limite a sa sèlman (1 / 4 < N / M < 262144) N: 1 - 536870911 / M: 1 - 2147483647
Limit koupl	Paramèt paramèt
Feed Forward Konpansasyon	Paramèt paramèt
Sòti pou monitè kè bebe analòg	Siyal siveyans ka mete ak paramèt (ranje pwodiksyon vòltaj: ± 8V); rezolisyon: 10-bit
Fonksyon Pwoteksyon	Overcurrent, Overvoltage, Undervoltage, Surchof, Erè rejenerasyon, Surcharge, Twòp devyasyon vitès, Twòp devyasyon pozisyon, Encoder erè, Ajisteman erè, Ijans kanpe, Avant / ranvèse limit erè, Serial kominikasyon erè, faz fuit RST, Serial kominikasyon delè, Pwoteksyon kout sikwi pou tèminal U, V, W
Entèfas kominikasyon	USB / RS-485 / CANopen / DMCNET / EtherCAT
Sit Enstalasyon	Andedan kay la (evite limyè solèy la dirèk), pa gen vapè korozif (evite lafimen, gaz ki ka pran dife, ak pousyè)
Altitid	Altitid 2000 m oswa pi ba anwo nivo lanmè
Presyon atmosferik	86 kPa - 106 kPa
Tanperati Fonksyònman	0ºC a 55ºC (Si tanperati opere pi wo a 45ºC, fòse refwadisman obligatwa)
Tanperati Depo	-20ºC a 65ºC
Imidite	0 a 90% RH (ki pa kondanse)
Vibration	9.80665 m / s2 (1 G) mwens pase 20 Hz, 5.88 m / s2 (0.6 G) 20 a 50 Hz
Evalyasyon IP	IP20
Sistèm pouvwa	TN sistèm 34
Sètifikasyon	IEC/EN 61800-5-1, UL 508C

Delta ASD-B3 servo motè	ECM-B3L-C 2 0401*1	ECM-B3M-C 2 0602*1	ECM-B3M-C 2 0604*1	ECM-B3M-C 2 0804*1
Pouvwa nominal (kW)	0.1	0.2	0.4	0.4
Rated koupl (Nm) * 2	0.32	0.64	1.27	1.27
Koupl maksimòm (Nm)	1.12	2.24	4.45	4.45
Vitès nominal (rpm)	3000
Vitès maksimòm (rpm)	6000
Kouran nominal (zam)	0.857	1.42	2.40	2.53
Max. Kouran enstantane (zam)	3.44	6.62	9.47	9.42
Pousantaj pouvwa nominale (kW/s)*3	34.25 (32.51)	29.05 (27.13)	63.50 (61.09)	24.89 (23.21)
Inèsi rotor (×10-4kg.m2) * 3	0.0299 (0.0315)	0.141 (0.151)	0.254 (0.264)	0.648 (0.695)
Konstan tan mekanik (ms)*3	0.50 (0.53)	0.91 (0.97)	0.52 (0.54)	0.8 (0.86)
Konstant koupl -KT (Nm/A)	0.374	0.45	0.53	0.5
Konstan vòltaj -KE (mV/(rpm))	13.8	16.96	19.76	18.97
Rezistans enduit (Ohm)	8.22	4.71	2.04	1.125
Enduktans armati (mH)	19.1	12.18	6.50	5.14
Konstan tan elektrik (ms)	2.32	2.59	3.19	4.57
Fren kenbe koupl [Nt-m (min)] *4	0.3	1.3	1.3	2.5
Konsomasyon pouvwa fren (nan 20˚C) [W]	6.1	7.6	7.6	8
Tan degaje fren [ms (Max.)]	20	20	20	20
Tan rale fren [ms (maks.)]	35	50	50	60
Max. Chajman radial (N)*6	78	245	245	392
Max. Axial Loading (N) * 6	54	74	74	147
Pwa (kg) * 3	0.5 (0.7)	0.9 (1.3)	1.2 (1.6)	1.7 (2.51)
