Series #: Delta servo motricium

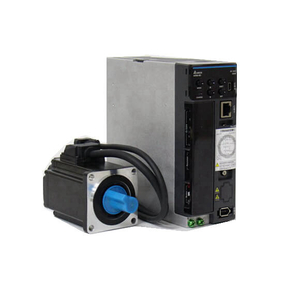

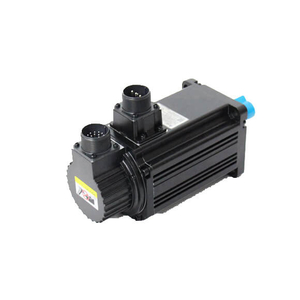

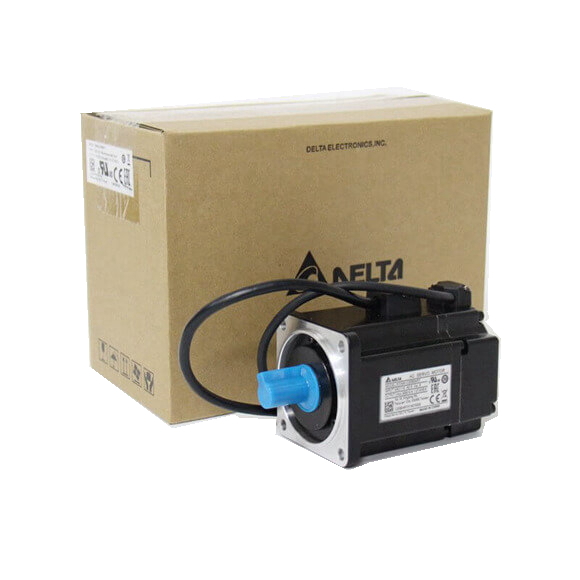

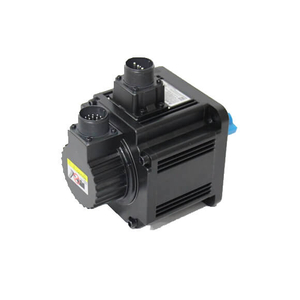

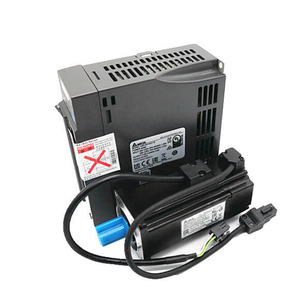

Delta Asda-B3 servo motricium 750W ECM, b3m-20607RS1
Nos potest suppleret Delta Electric Automation partes, ut Gratam PLC, Delta Motor, Delta HMI, Delta VFD et sic in
Download in Munuali
| Delta ASD-B3 servo motricium |
ECM, B3L-C II CDI * I |
ECM, B3M-C II DCII * I |
ECM, B3M-C II DCIV * I |
ECM, B3M-C II DCCCIV * I |
| Rated Power (KW) |
0.1 |
0.2 |
0.4 |
0.4 |
| Rated torque (NM) II |
0.32 |
0.64 |
1.27 |
1.27 |
| Maxime torque (NM) |
1.12 |
2.24 |
4.45 |
4.45 |
| Rated Volo (RPM) |
3000 |
| Maximam celeritate (RPM) |
6000 |
| Rated Current (arma) |
0.857 |
1.42 |
2.40 |
2.53 |
| Max. Instantaneous current (arma) |
3.44 |
6.62 |
9.47 |
9.42 |
| Rated Power Rate (KW / s) * III |
34.25 (32.51) |
29.05 (27.13) |
63,50 (61.09) |
24.89 (23.21) |
| Rotor inertia (× 10-4kg.m2) * III |
0,0299 (0.0315) |
0.141 (0.151) |
0,254 (0.264) |
0.648 (0.695) |
| Mechanica tempus constant (MS) III |
0,50 (0.53) |
0,91 (0.97) |
0,52 (0.54) |
0,8 (0.86) |
| Aureus assidue -kt (NM / a) |
0.374 |
0.45 |
0.53 |
0.5 |
| Voltage constant -ke (MV / (RPM)) |
13.8 |
16.96 |
19.76 |
18.97 |
| Armature Resistance (Ohm) |
8.22 |
4.71 |
2.04 |
1.125 |
| Armature inductance (MH) |
19.1 |
12.18 |
6.50 |
5.14 |
| Electrical Tempus constant (MS) |
2.32 |
2.59 |
3.19 |
4.57 |
| Torque fregit tenentes [NT-M (min)] * IV |
0.3 |
1.3 |
1.3 |
2.5 |
| BRAKE potentia consummatio (ad 20˚C) [W] |
6.1 |
7.6 |
7.6 |
8 |
| Release Tempus [MS (Max.)] |
20 |
20 |
20 |
20 |
| Fregit viverra-in tempore [MS (Max.) |
35 |
50 |
50 |
60 |
| Max. Radiales Loading (N) VI * |
78 |
245 |
245 |
392 |
| Max. Axial loading (n) * VI |
54 |
74 |
74 |
147 |
| Pondus (kg) * III |
0,5 (0,7) |
0,9 (1.3) |
1.2 (1.6) |
1.7 (2.51) |
