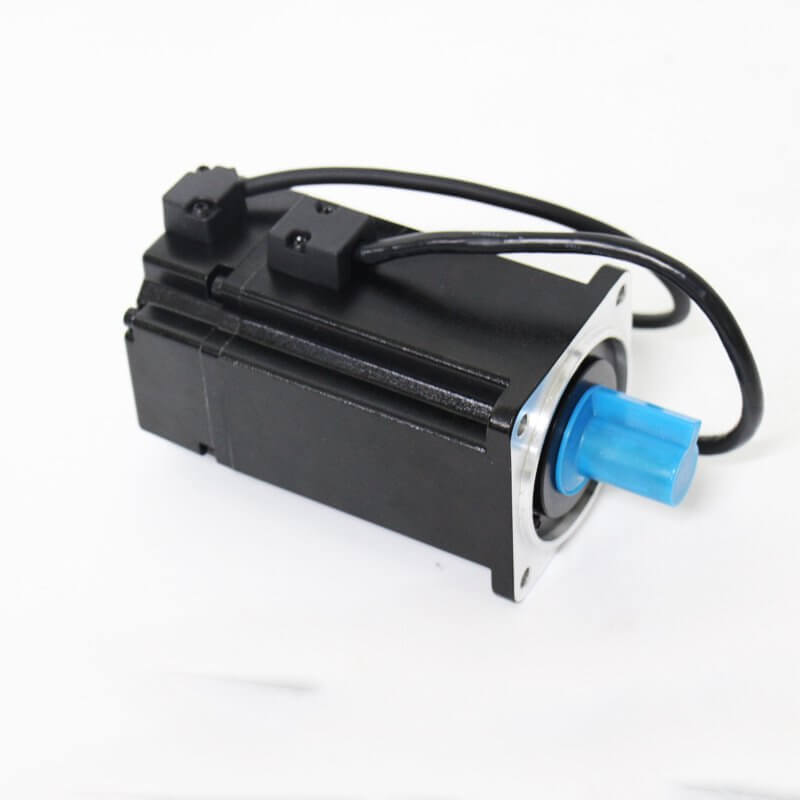

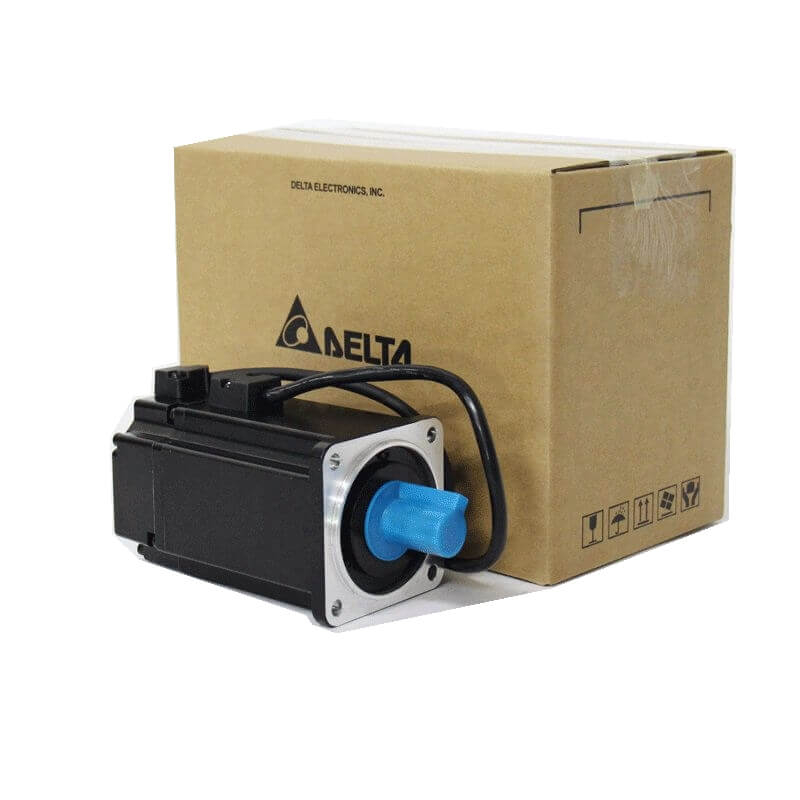

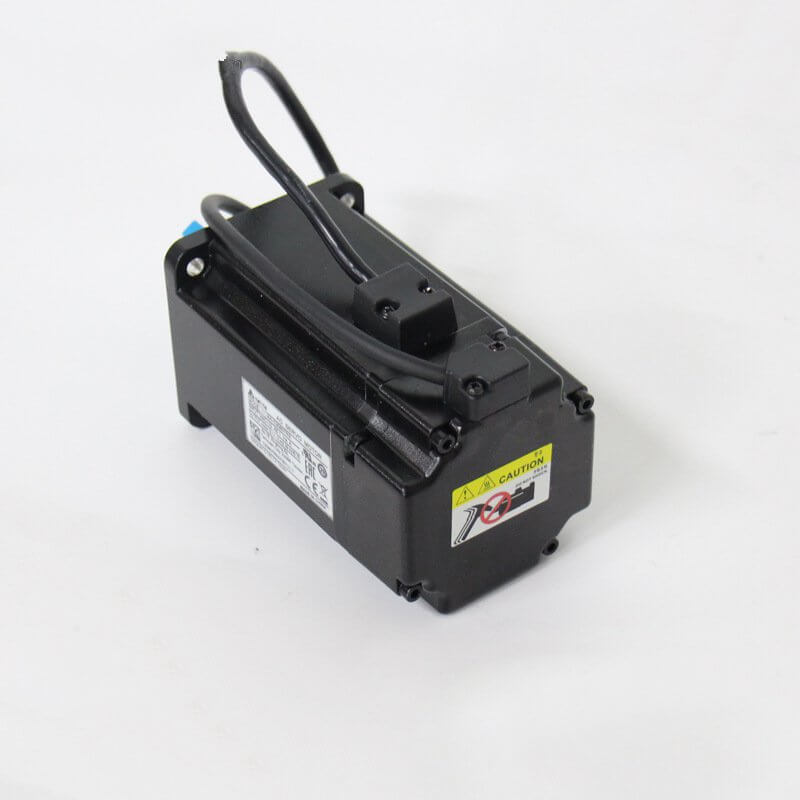

Delta ECMA seriem Servo Motor 400W ECMA C20604RC

Share est:

Delta ECMA seriem Servo Motor 400W ECMA, C20604RC

Series #: Delta servo motricium

Delta ECMA seriem Servo Motor 400W ECMA C20604RC
Motor Sizing software est obtulerunt pro customers ad ducere aestimationem ex apparatibus commode.
ASDA-mollis configuratione software (tuning software) est provisum est in occursum ad perficientur cito elit.
Facile-ut-usu digital keypad est specimen ad occasum parametri et vigilantia servo coegi et motor directe.
Servo Motor providet fregit, oleum sigillum etc. libitum configurations pro requisitis diversis applications.
Existentium potestatem cables et encoder cables ad Asda series non potest esse adhuc. Cum upgrading, non est opus ad emo novus accessiones.
Imperium Circuit et principalis potentia circuitu separatur, salus augetur et sustentacionem multo facilius.
400W et supra servo coegi est constructum-apud regenerative resistor, significantly salvum a wiring et sumptus.
Duae Analog initus terminals (CN5) providit facile monitor et statum servo motricium.

Availability:



Inquiro

Product Description

Series #: Delta servo motricium

Delta ECMA seriem Servo Motor 400W ECMA C20604RC
Nos potest suppleret Delta Electric Automation partes, ut Gratam PLC, Delta Motor, Delta HMI, Delta VFD et sic in

Download in Munuali

Coegi servo	ASD-B2-3023-B
Medium inertiae Motor servo	ECMA-E21830 □ S
Confringo	Fregit						Fregit
Funiculus	3m		5m				3m					5m
Cable Part No.	Motricium potestatem funem ASD-Capw2203		Motricium potestatem funem ASD-Capw2205				Motricium potestatem funem Asd-Capw2303					Motricium potestatem funem ASD-Capw2305
Encoder pars No.	Encoder cable Asdbcaen1003		Encoder cable Asdbcaen1005				Encoder cable Asdbcaen1003					Encoder cable Asdbcaen1005
Iungo	Power COPULUM ASD, Capw2000
Iungo	Encoder Connector Asdbcaen1000
Coegi servo	ASD-B2-3023-B
Medium inertiae Motor servo	ECMA-F21830 □ S
Confringo	Fregit							Fregit
Funiculus	3m			5m				3m					5m
Cable Part No.	Motricium potestatem funem ASD-Capw2203			Motricium potestatem funem ASD-Capw2205				Motricium potestatem funem Asd-Capw2303					Motricium potestatem funem ASD-Capw2305
Encoder pars No.	Encoder cable Asdbcaen1003			Encoder cable Asdbcaen1005				Encoder cable Asdbcaen1003					Encoder cable Asdbcaen1005
Potentia iungo	Power COPULUM ASD, Capw2000
Encoder iungo	Encoder Connector Asdbcaen1000
Servo Motors ECMA seriem	C204	C206				C208				C209				C210
Delta servo Motors	01	02			04	04			07	07	10			10	20
Rated output Power (KW)	0.1	0.2			0.4	0.4			0.75	0.75	1.0			1.0	2.0
Rated torque (NM) * I	0.32	0.64			1.27	1.27			2.39	2.38	3.18			3.18	6.37
Maxime torque (NM)	0.96	1.92			3.82	3.82			7.16	7.14	8.78			9.54	19.11
Rated Volo (R / min)	3000
Maximam celeritate (R / min)	5000									3000				5000
Rated current (a)	0.90	1.55			2.60	2.60			5.10	3.66	4.25			7.30	12.05
Maximum current (a)	2.70	4.65			7.80	7.74			15.3	11	12.37			21.9	36.15
Potestas Rating (KW / S) (sine fregit)	27.7	22.4			57.6	22.1			48.4	29.6	38.6			38.1	90.6
Rotor momentum inertiae (× 10-4kg.m2) (SerkedBrake)	0.037	0.177			0.277	0.68			1.13	1.93	2.62			2.65	4.45
Mechanica Tempus constant (MS) (sine fregit)	0.75	0.80			0.53	0.73			0.62	1.72	1.20			0.74	0.61
KT torque continue, KT (NM / a)	0.36	0.41			0.49	0.49			0.47	0.65	0.75			0.43	0.53
Voltage Constant-KE (MV / (R / MB))	13.6	16.0			17.4	18.5			17.2	27.5	24.2			16.8	19.2
Armature Resistance (Ohm)	9.30	2.79			1.55	0.93			0.42	1.34	0.897			0.20	0.13
Armature inductance (MH)	24.0	12.07			6.71	7.39			3.53	7.55	5.7			1.81	1.50
Electrical Tempus constant (MS)	2.58	4.30			4.30	7.96			8.36	5.66	6.35			9.30	11.4
Nulla Genus	Class A (ul), Class B (CE)
Nulla resistitur	> 100mw, DC 500V
Vitra Vitra	1500V AC, LX seconds
Pondus (kg) (SerintBrake)	0.5	1.2			1.6	2.1			3.0	2.9	3.8			4.3	6.2
Pondus (kg) (cum fregit)	0.8	1.5			2.0	2.9			3.8	3.69	5.5			4.7	7.2
Max. Radiales Shaft Lond (N)	78.4	196			196	245			245	245	245			490	490
Max. PRAETERMITTO PRAETEREO Lond (N)	39.2	68			68	98			98	98	98			98	98
Power Rating (KW / s) (cum fregit)	25.6	21.3			53.8	22.1			48.4	29.3	37.9			30.4	82.0
Rotor momentum inertiae (× 10-4kg.m2) (cum fregit)	0.04	0.192			0.30	0.73			1.18	1.95	2.67			3.33	4.95
Mechanica tempus constant (MS) (cum fregit)	0.81	0.85			0.57	0.78			0.65	1.74	1.22			0.93	0.66
Torque fregit tenentes [NT-M (min)] II	0.3	1.3			1.3	2.5			2.5	2.5	2.5			8.0	8.0
