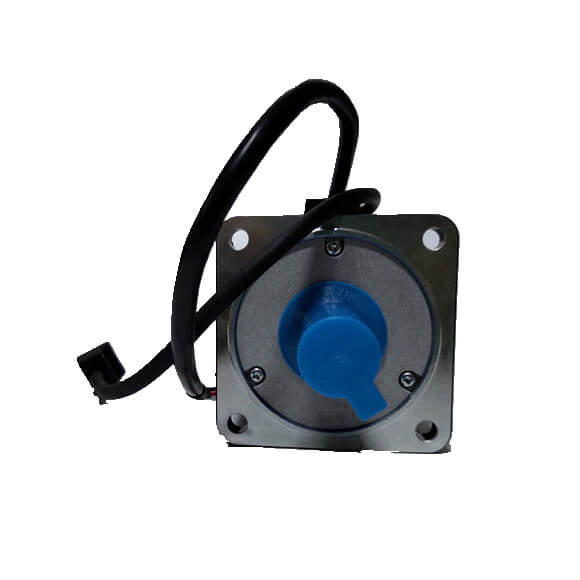

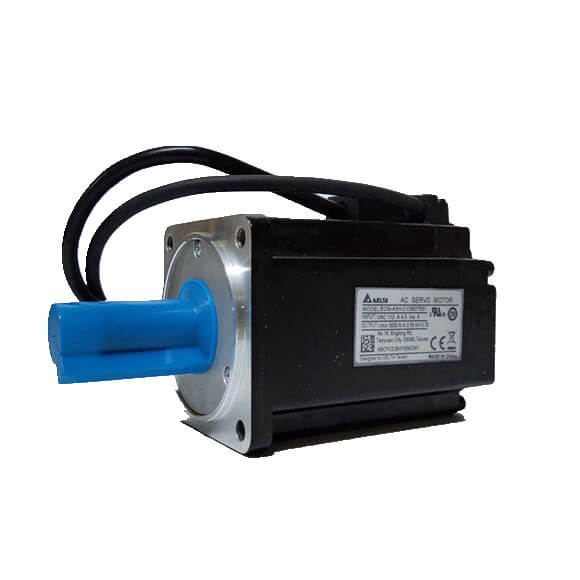

Delta Series Servo Motor ECM-A3H-CY0807RS1
Praebere possumus partes Delta electrica automationis, ut Delta PLC, Delta Servo Motor, Delta HMI, Delta VFD et sic in
![]()
Download Munual
| Delta ECM-A3H Series |
C 1 04 |
C 1 06 |
C 1 08 |
| Delta Servo Motor |
0F |
01 |
02 |
04 |
04 |
07 |
| Rated output power (kW) |
0.05 |
0.1 |
0.2 |
0.4 |
0.4 |
0.75 |
| Rated Aureus (Nm) *1 |
0.159 |
0.32 |
0.64 |
1.27 |
1.27 |
2.39 |
| Maximus torque (Nm) |
0.557 |
1.12 |
2.24 |
4.45 |
4.44 |
8.36 |
| Celeritas rated (r / min) |
3000 |
| Maximam celeritatem (r / min) |
6000 |
| Rated current (Arms) |
0.64 |
0.9 |
1.45 |
2.65 |
2.6 |
4.61 |
| Maxime current (Arms) |
2.59 |
3.64 |
5.4 |
9.8 |
9.32 |
16.53 |
| Virtus rating (kW/s) |
5.56 |
13.6 |
16.4 |
35.8 |
17.5 |
37.8 |
| Rotor momentum inertiae (x10-4kg-m2) (Sine fregit) |
0.0455 |
0.0754 |
0.25 |
0.45 |
0.92 |
1.51 |
| Mechanica temporis constantis (ms) |
2.52 |
1.43 |
1.38 |
0.96 |
1.32 |
0.93 |
| Torque constant (Nm/A) |
0.248 |
0.356 |
0.441 |
0.479 |
0.49 |
0.52 |
| Voltage constant-KE (mV/(r/min) |
9.54 |
12.9 |
16.4 |
17.2 |
17.9 |
18.7 |
| Repugnantia armatura (Ohm) |
12.5 |
8.34 |
3.8 |
1.68 |
1.19 |
0.57 |
| Armatura inducta (mH) |
13.34 |
11 |
8.15 |
4.03 |
4.2 |
2.2 |
| Electrical time constant (ms) |
1.07 |
1.32 |
2.14 |
2.40 |
3.53 |
3.86 |
| Nulla genus |
Classis A (UL), Classis B (CE) |
| Nulla resistentia |
C MΩ, DC D V supra |
| Nulla vis |
1.8k Vac, 1 sec |
| Pondus (kg) (sine fregit) |
0.38 |
0.5 |
1.1 |
1.4 |
2.05 |
2.8 |
| Pondus (kg) (cum fregit) |
0.68 |
0.8 |
1.6 |
1.9 |
2.85 |
3.6 |
| Maximilianus. radialis scapi onus (N) |
78 |
78 |
245 |
245 |
392 |
392 |
| Maximilianus. telum onus falcem (N) |
54 |
54 |
74 |
74 |
147 |
147 |
| Virtus rating (kW / s) (cum fregit) |
4.89 |
12.5 |
14.6 |
33.6 |
15.07 |
34.41 |
| Rotor momentum inertiae (x10-4kg-m2) (cum fregit) |
0.0517 |
0.0816 |
0.28 |
0.48 |
1.07 |
1.66 |
| Mechanica tempus constante (ms) (con fregit) |
2.86 |
1.55 |
1.54 |
1.02 |
1.54 |
1.02 |
| Brake tenens torquem [Nt-m (min)]*2 |
0.32 |
0.32 |
1.3 |
1.3 |
2.5 |
2.5 |
| Consumptio potentiae fregit (ante 20˚C)[W] |
6.1 |
6.1 |
7.2 |
7.2 |
8 |
8 |
| fregit emissio tempus [ms (Max)] |
20 |
20 |
20 |
20 |
20 |
20 |
| Broke viverra tempus [Ms (Max)] |
35 |
35 |
50 |
50 |
60 |
60 |
| Vibratio gradus (μm) |
V15 |
| Temperatus operating (˚C) |
0℃ ~ 40℃ |
| Repono temperatus (˚C) |
-10℃ ~ 80℃ |
| humiditas operating |
20 ad 90% RH (non-constans) |
| At humiditas |
20 ad 90% RH (non-constans) |
| Vibratio capacitatis |
2.5G |
| IP Rating |
IP65 (cum connexiones IMPERVIUS adhibentur, vel cum sigillum oleum ad hastile rotandum aptandum adhibetur) |
