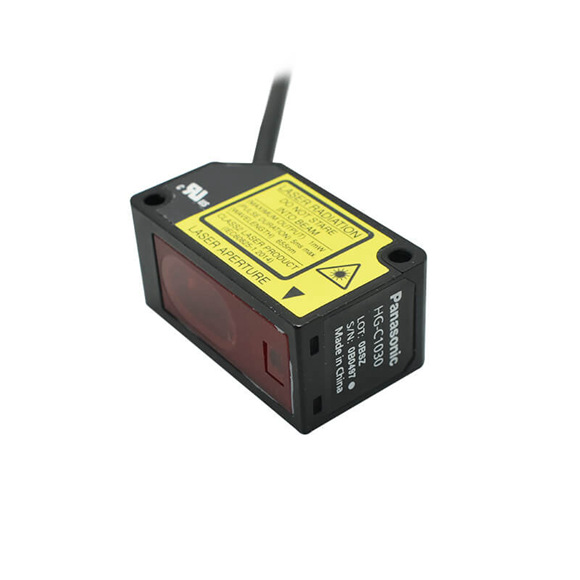

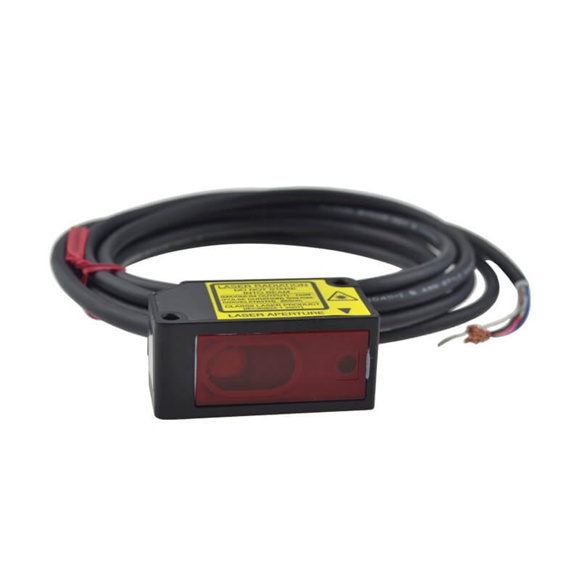

| Type |
Mensuratio centrum
200mm genus |
mensurae centrum
400mm genus |
| NPN output |
HG-C1200 |
HG-C1400 |
| PNP output |
HG-C1200-P |
HG-C1400-P |
| Regulatory obsequio et certificatione |
EMC Directivum, RoHS Directivum, FDA Ordinationes, UL/c-UL certificatio (Note 4) |
|
| Mensurae centrum spatium |
200 mm 7.874 in |
400 mm 15.748 in |
| Mensurae range |
±80 mm 3.150 in |
± 200 mm 7.874 in |
| Repeatability |
200 μm 7.874 mil |
300 µm 11.811 mil
(Mensurae spatium 200 ad 400 mm 7.874 ad 15.748 in)
800 µm 31.496 mil
(Mensurae spatium 400 ad 600 mm 15,748 ad 23.622 in) |
| Linearity |
±0.2 % FS |
±0.2% FS
(Mensurae distantiae 200 ad 400 mm 7,874 ad 15.748 in)
±0,3% FS
(Mensurae distantiae 400 ad 600 mm 15,748 ad 23.622 in) |
| Temperatus proprium |
0.03 % FS/ |
|
| Lux fons |
Red semiconductor laser Classis 2 [JIS/IEC/GB/FDA (Note 2)] Max. output: 1 mW, emissio cacumen necem: 655 nm 0.026 mil |
|
| Trabes diametri (Nota III) |
ø300 μm 11.811 mil
approx. |
ø500 μm 19.685 mil
approx. |
| Supple voltage |
12 ad 24 V DC ± 10 %, Ripple PP 10% vel minus |
|
| Virtus consummatio |
40 mA vel minus (ad 24 V DC supplendum intentione), 65 mA vel minus (ad 12 V DC supplendum intentione) |
|
| Imperium output |
NPN publicanus transistor
• Maximum submersionis currentis: 50 mA
• Intentionis applicatae: 30 V DC vel minus (Inter imperium output ad 0V)
• Residua intentione: 1.5 V vel minus (Ad 50 mA concidat vena)
• Lacus current: 0.1 mA vel minus.
PNP collector transistor apertus
• Maximus fons currentis: 50 mA
• applicata intentione: 30 V DC vel minus (Inter imperium output ad +V)
• Residua voltage: 1.5 V vel minus (Ad 50 mA fons vena)
• Lacus current: 0.1 mA vel minus.
|
|
| Output operatio |
Switchable between aut luce-ON or Dark-ON |
|
| Brevis circuitus praesidio |
Incorporatus (Auto reset type) |
|
| Analog output |
Analog voltage output
• Output range: 0 ad 5 V (ad terrorem: +5.2 V)
• Output impedimentum: 100ΩAnalog current output
• output range: 4 ad 20mA (at terror: 0 mA)
• Output impedimentum: 300Ω vel minus |
|
| Responsum tempus |
Switchable inter 1.5 ms / 5 ms / 10 ms |
|
| Externi input |
NPN non-contactus initus
• Input condiciones
invalidae: +8 ad +V DC vel Open
Valid: 0 ad +1.2 V DC
• Input impedimentum: 10 kΩ approx.
PNP non-contactus initus
• Input condiciones
invalidae sunt: 0 ad +0.6 V DC vel Open
Valid: +4 ad +V DC
• Input impedimentum: 10 kΩ approx.
|
|
| Pollutio gradus |
2 |
|
| Altitudo operating |
2,000 m 6561,680 ft vel minus |
|
|
Praesidium |
IP67 (IEC) |
|
| Ambiens temperatus |
-10 ad +45 -14 ad 113 (Nec ros condensationis vel vico permissus),
Repono: -20 ad + 60 -4 ad 140 ℉ |
|
| Ambiens humiditas |
35 ad 85% RH, Repono: 35 ad 85% RHq |
|
| illuminatio ambientium |
Candens lumen: 3,000 x vel minus in lucem recipiens faciem |
|
| Repugnantia vibratio |
10 ad 55 Hz (tempus: 1 min.) frequentia, 1.5 mm 0.059 in amplitudine duplici in X, Y et Z directiones per duas horas singulas. |
|
| Repugnantia inpulsa |
D m/s2 acceleratio (50 G approx.) in X, Y et Z ter singulos |
|
| Cable |
0.2 mm2 5-coro composito fune, 2 m 6.5617 ft long |
|
| Cable extensionis |
Extensio usque ad summam 10 m 393,701 ft potest cum 0,3 mm2, vel plus, dilabi. |
|
| Materia |
Clausura: Aluminium mori-cast, Front cover: Acrylic |
|
| Pondus |
Net pondus: 35 g approx. (without cable), 85 g approx. (Including cable) |
|
