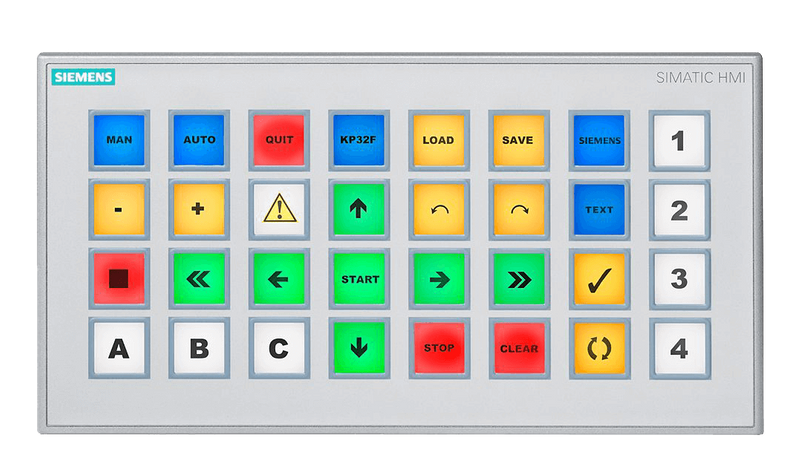

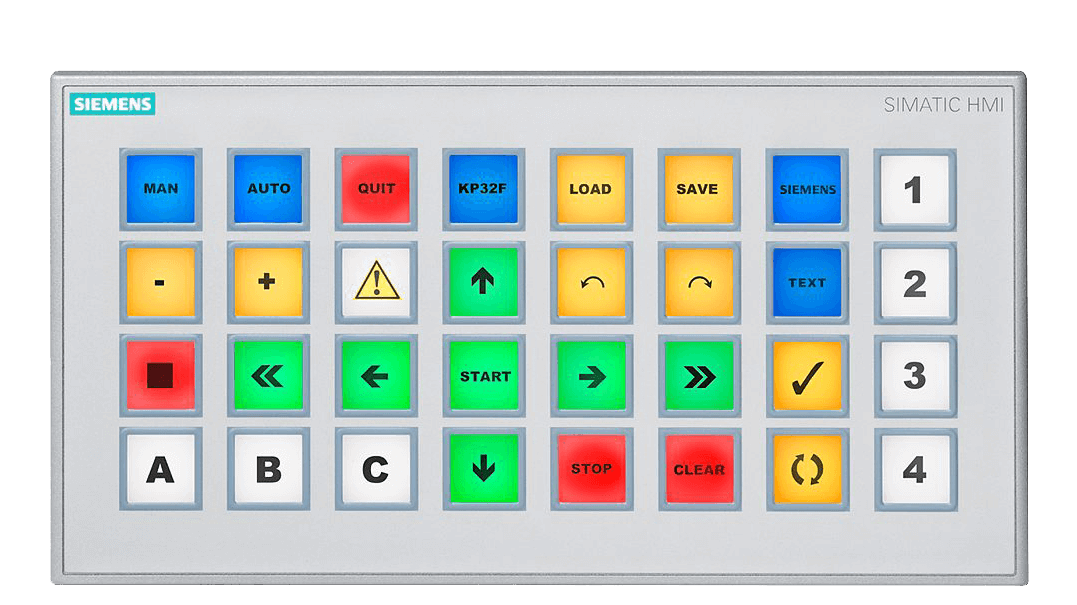

Siemens SIMATIC HMI KP32F PN Panel Touch Screen 6AV3688-3EH47-0AX0

With parameterizable keys

Yes

● Membrane keyboard

— user-definable label membrane keys

● Function keys

— Number of function keys

● Short-stroke keys

— Number of short-stroke keys

Yes

32

32

● DP direct LEDs (LEDs as S7 output I/O)

● Number of color modes for LED

● Direct keys (keys as S7 input I/O)

8; Adjustable brightness

5; red, green, blue, yellow, white 32

Mounting type

Mounting clip

Mounting position

vertical

Rack mounting

No

Front mounting

Yes

Rail mounting

No

Wall mounting/direct mounting

No

Mounting in portrait format possible

Yes

Mounting in landscape format possible

Yes

maximum permissible angle of inclination without external ventilation

30°; To the front/rear

Number of slots for command devices and signaling units

0

Type of supply voltage

DC

Rated value (DC)

24 V; 24 V looped through at connector, no interruption on pulling

permissible range, lower limit (DC)

20.4 V

permissible range, upper limit (DC)

28.8 V
