| Model |

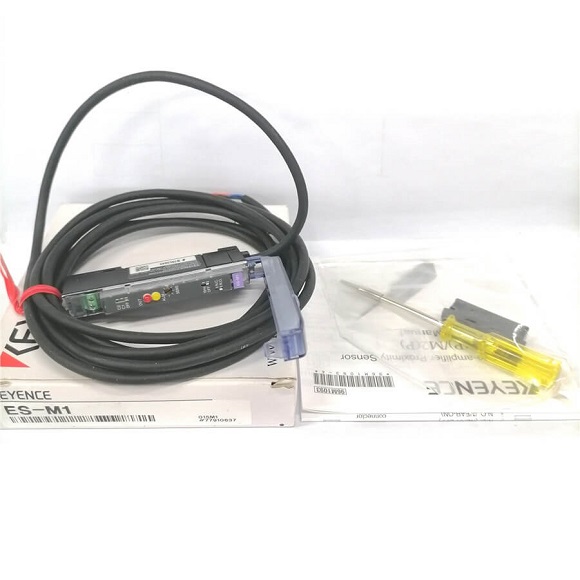

ES-M1*1 |
ES-M2*1 |
ES-M1P*1 |
ES-M2P*1 |
| Turi |
Bir qatorli kengaytirish tizimi |
|
|
|
| Shakl |
Asosiy birlik |
Kengaytirish birligi |
Asosiy birlik |
Kengaytirish birligi |
| Ishlash rejimi |
NO/NC kaliti tanlanadi |
|
|
|
| Taymer funktsiyasi |
10 ms kechikish / taymer o'chirilishi mumkin * 2 |
|
|
|
| Chiqish |
NPN |
PNP |
|
|
| Chiqish
Nazorat chiqishi |
NPN ochiq kollektor 100 mA maks. 40 V, qoldiq kuchlanish 1 V maks. |
PNPopen kollektori 100 mA maks. 26,4 V, qoldiq kuchlanish 1 V maks. |
|
|
| Ajratish signalining chiqishi |
NPN ochiq kollektor 100 mA maks.
40 V,
qoldiq kuchlanish 1 V yoki undan kam*3 |
―*3 |
PNPopen kollektori 100 mA maks.
26,4 V,
qoldiq kuchlanish 1 V yoki undan kam*3 |
―*3 |
| Javob vaqti |
1 ms maksimal. |
|
|
|
| Harorat xususiyatlari |
Aniqlash masofasining ±8% ichida +23°C 73,4°F, 0 dan 50°C gacha 32 dan 122°F gacha bo‘lgan harorat oralig‘ida |
|
|
|
| Sezuvchanlikni sozlash |
25 burilishli trimmer |
|
|
|
| Himoya sxemasi |
Teskari quvvat ulanishi himoyasi, chiqish haddan tashqari oqim muhofazasi, chiqish kuchlanishidan himoyalanish |
|
|
|
| Quvvat kuchlanishi |
12 dan 24 VDC gacha, Ripple (PP) 10% yoki undan kam |
|
|
|
| Oqim / quvvat sarfi |
25 mA maksimal. |
|
|
|
| Atrof-muhit harorati |
0 dan +50 °C gacha 32 dan 122 °F*4 gacha |
|
|
|
| Nisbiy namlik |
35-85% RH (kondensatsiya yo'q) |
|
|
|
| Og'irligi |
Taxminan 65 g (shu jumladan yong'oq va 2 m 9,8 'kabel) |
Taxminan 35 g (shu jumladan yong'oq va 2 m 9,8 'kabel) |
Taxminan 65 g (shu jumladan yong'oq va 2 m 9,8 'kabel) |
Taxminan 35 g (shu jumladan yong'oq va 2 m 9,8 'kabel) |
