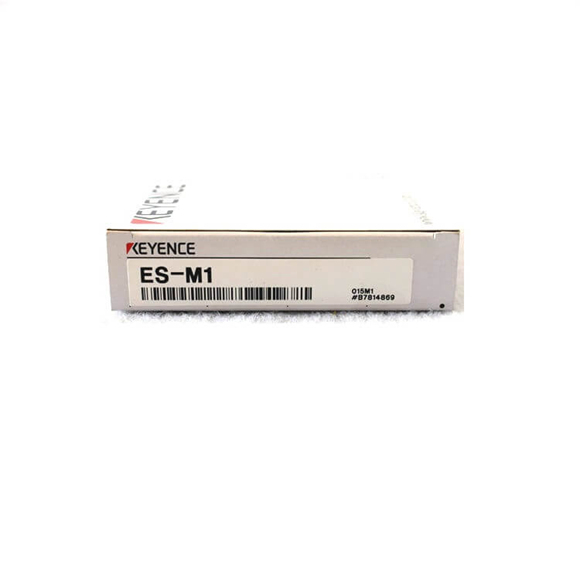

| Model | ES-M1*1 | ES-M2*1 | ES-M1P*1 | ES-M2P*1 |
| Type | One-line expansion system |
|
|
|
| Shape | Main unit | Expansionunit | Main unit | Expansionunit |
| Operation mode | N.O./N.C. switch-selectable |
|
|
|
| Timer function | 10-ms delay / timer OFF switchable*2 |
|
|
|
| Output | NPN | PNP |
|
|
| Output
Control output | NPN open collector 100 mA max. 40 V, residual voltage 1 V max. | PNPopen collector 100 mA max. 26.4 V, residual voltage 1 V max. |
|
|
| Disconnection alarm output | NPN open collector 100 mA max.
40 V,
residual voltage 1 V or less*3 | ―*3 | PNPopen collector 100 mA max.
26.4 V,
residual voltage 1 V or less*3 | ―*3 |
| Response time | 1 ms max. |
|
|
|
| Temperature characteristics | Within ±8% of detecting distance at +23°C 73.4°F when within 0 to 50°C 32 to 122°F temperature range |
|
|
|
| Sensitivity adjustment | 25-turn trimmer |
|
|
|
| Protection circuit | Reverse power connection protection, output overcurrent protection, output surge protection |
|
|
|
| Power voltage | 12 to 24 VDC, Ripple (P-P) 10 % or less |
|
|
|
| Current/power consumption | 25 mA max. |
|
|
|
| Ambient temperature | 0 to +50 °C 32 to 122 °F*4 |
|
|
|
| Relative humidity | 35 to 85 % RH (No condensation) |
|
|
|
| Weight | Approx. 65 g (including nuts and 2-m 9.8′ cable) | Approx. 35 g (including nuts and 2-m 9.8′ cable) | Approx. 65 g (including nuts and 2-m 9.8′ cable) | Approx. 35 g (including nuts and 2-m 9.8′ cable) |
