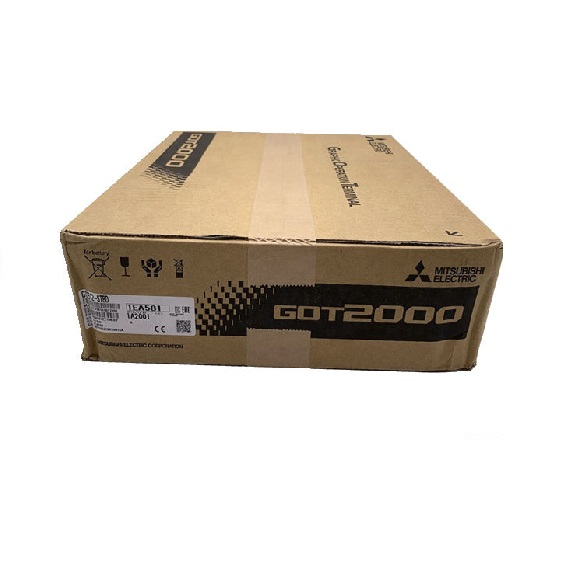

| 12″ Mitsubishi Touch screen HMIs | GT2512-STBA GT2512-STBD | GT2512F-STNA GT2512F-STND | GT2510-VTBA GT2510-VTBD | GT2510-VTWA GT2510-VTWD | GT2510F-VTNA GT2510F-VTND | GT2510-WXTBD GT2510-WXTSD |
| Type | TFT color LCD |
| Screen Size | 12.1″ | 10.4″ | 10.1″ Wide |
| Resolution (Dots) | 800 x 600 dots SVGA | 640 x 480 VGA | WXGA:
1280 × 800 dots |
| Display Size (W x H) mm | 246 x 184.5 | 211.2 x 158.4 | 216.96 x 135.6 |
|
Number of Characters |
16-dot standard font: 50 chars x 37 lines (2-byte) 12-dot standard font: 66 chars. x 50 lines (2-byte) |
16-dot standard font: 40 chars. × 30 lines (2-byte) 12-dot standard font: 53 chars. × 40 lines (2-byte) | 16-dot standard font: 80 characters × 50 lines (two-byte)
12-dot standard font: 106 characters × 66 lines (two-byte) |
| Display Colors | 65536 colors |
| Intensity Adjustment | 32-level adjustment |
| Backlight
Type | LED (not replaceable) |
|
Life (*4) |
Approx. 60000 hours or more (Time for display intensity reaches 50% at ambient temperature of 25°C) | Approx. 50000 h (operating ambient temperature: 25 °C, display intensity: 50%) |
| Touch Panel (*3)
Type | Analog resistive film |
| Key Size (Dots) | Minimum 2 x 2 dots (per key) (*8) |
| Simultaneous Press | Not available (*5) (only 1 point can be pressed) |
| Life | 1 million times or more (operating force 0.98N or less) |
|
Panel Color |
Black |
– |
Black |
White |
– | GT2510-WXTBD:
Black GT2510-WXTSD: Silver |
|
Memory User Memory Capacity |
Memory for storage (ROM): 32MB, Memory for operation (RAM): 80MB | Memory for storage (ROM): 32MB, Memory for operation (RAM): 128MB |
| Life (No. of Writings) | 100,000 times |
| Internal Clock Accuracy | ±90 sec/month (ambient temperature 25°C) |
| Battery Type | GT11-50BAT lithium battery |
| Life | Approx. 5 years (ambient temperature 25°C) |
| Built-in Interface
RS-232 | 1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (male) |
| RS-422/485 | 1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (female) |
| Ethernet | 1ch Data transfer method: 10BASE-T/100BASE-TX Connector shape: RJ-45 (modular jack) | 2ch |
| USB (Host) | 2ch (front/rear face) | 1ch (rear face) | 2ch (front/rear face) | 1ch (rear face) |
| Maximum transfer speed: High-Speed 480Mbps Connector shape: USB-A |
| USB (Device) | 1ch (front face) | 1ch (rear face) | 1ch (front face) | 1 channel (rear face) | 1 ch (front face) |
| Maximum transfer rate: High-Speed 480 Mbps Connector shape: USB Mini-B |
| SD Memory Card | 1ch SDHC compliant (maximum 32GB) |
| Extension Interface | For communication unit/option unit mounting | – |
| Side Interface | For installing a wireless LAN communication unit |
|
Sound Output Interface |
– | 1 channel, WAV
format (16 bits, 8 kHz/16 kHz, monoral) applicable plug: f3.5 stereo mini-plug (3-prong) |
| Buzzer Output | Single tone (tone, tone length adjustable) |
| Power LED | Emission color: 2 colors (blue, orange) |
|
Protective Construction | Front: IP67F (*6, *9) Inside control panel: IP2X | Front: IP67F (*7, *9) Inside control panel: IP2X | Front: IP67F (*6, *9) Inside control panel: IP2X | Front: IP67F (*7, *9) Inside control panel: IP2X | Front: IP67F (*6*9) In control panel: IP2X |
| External Dimensions (W x H x D) mm | 316 x 246 x 52 | 311 x 237 x 54 | 303 x 218 x 52 | 298 x 209 x 54 | 252 x 194 x 48 |
| Panel Cutout (W x H) mm | 302 x 228 | 269 x 214 | 289 x 200 | 234 x 187 | 243.5 x 185.5 |
| Weight (Excluding Mounting Brackets) kg | 2.4 | 2.1 | 1.2 |
|
Applicable Software Package | GT Works3 Version1.122C or later | GT Works3 Version1.150G or later |
GT Works3 Version1.112S or later | GT Works3 Version1.150G or later | GT Works3 Version 1.175H or later |
