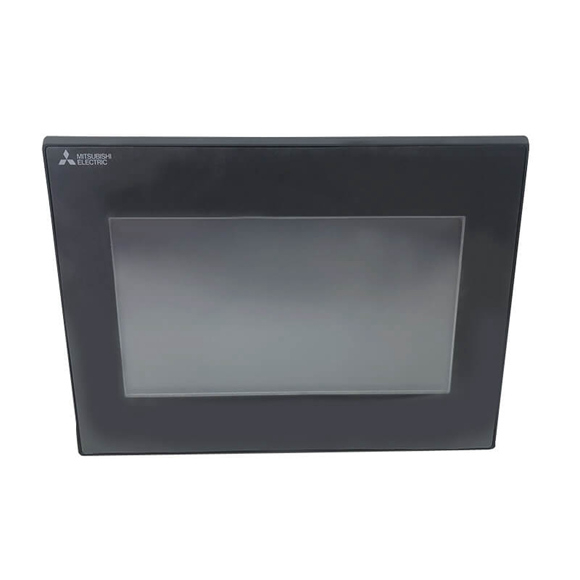

| 10.4″ Mitsubishi Touch screen HMIs | Model Number | Screen Size | Resolution | Display Type | Frame Color | Power Supply | Stk. Item |
| GT2310 | GT2310-VTBA | 10.4″ | VGA (640 x 480) | TFT Color | Black | 100-240VAC | S |
| GT2310 | GT2310-VTBD | 24VDC | S |
| GT2308 | GT2308-VTBA | 8.4″ | VGA (640 x 480) | Black | 100-240VAC | S |
| GT2308 | GT2308-VTBD | 24VDC | S |
| 10.4″ Mitsubishi Touch screen HMIs | GT2310-VTBA | GT2308-VTBA | GT2310-VTBD | GT2308-VTBD |
| Input Power Supply Voltage | 100 to 240VAC (+10%, -15%) | 24VDC (+25%, -20%) |
| Input Power Supply Frequency | 50/60Hz ±5% | – |
| Maximum Load | 18W or less | 11W or less | 16W or less | 11W or less |
| Stand Alone | 15W | 9W | 13W | 8W |
| Stand Alone with Backlight Off | 8W | 6W | 7W | 6W |
| Inrush Current | 40A or less (4ms, ambient temperature 25°C, maximum load) | 40A or less (2ms, ambient temperature 25°C, maximum load) |
| Permissible Instantaneous Failure Time | Within 20ms (100VAC or more) | Within 10ms |
| Noise Resistance | Noise voltage 1500Vp-p, noise width 1μs by noise simulator with noise frequency 25 to 60Hz | Noise voltage 500Vp-p, noise width 1μs by noise simulator with noise frequency 25 to 60Hz |
| Withstand Voltage | 1500VAC for 1 minute between power supply terminal and ground | 350VAC for 1 minute between power supply terminal and ground |
| Insulation Resistance | 10MΩ or higher with an insulation resistance tester (500VDC between power supply terminal and ground) |
| Applicable Wire Size | 0.75 to 2 [mm²] |
| Clamp Terminal | Clamp terminals for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A |
| Tightening Torque (Terminal Block’s Terminal Screws) | 0.5 to 0.8 [N·m] |
