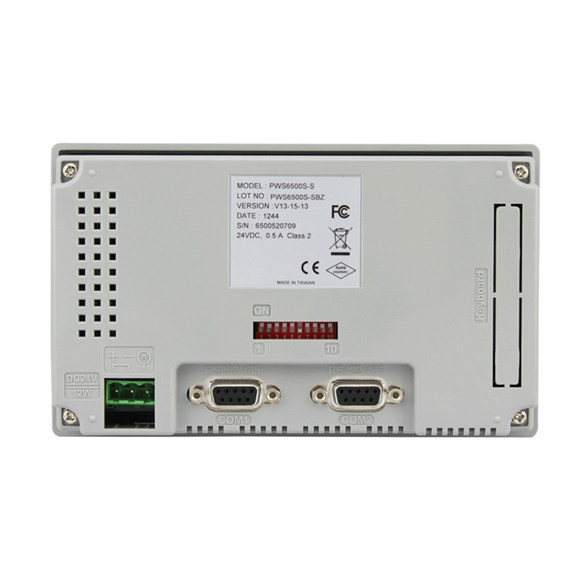

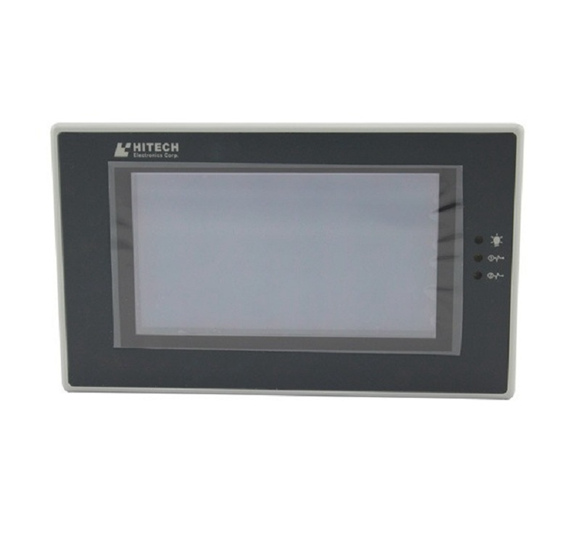

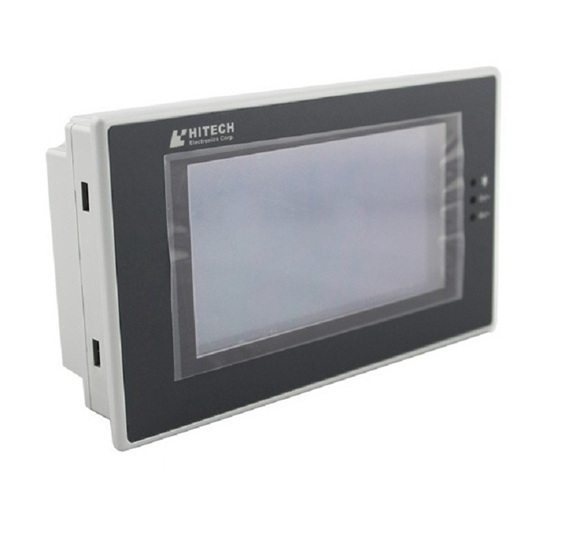

4.7" HITECH (Beijer) PWS operator Panels HMI PWS6560S-S



Series#: HITECH HMI



  • 4.7″ HITECH (Beijer) PWS operator Panels HMI PWS6560S-S
  • 16 shades ofblue STN 240 x128,4.7″ Hitech Beijer Touch Screen HMI,COM Port x2
  • We can Supply All series of HITECH (Beijer) HMI Touch screen.
  • 100% Original and new,In stock by HITECH (Beijer) Electronics。
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs



Availability:
Inquire

Product Description


Series#: HITECH HMI


  • 4.7″ HITECH (Beijer) PWS operator Panels HMI PWS6560S-S

  • 16 shades ofblue STN 240 x128,4.7″ Hitech Beijer Touch Screen HMI,COM Port x2

  • We can Supply All series of HITECH (Beijer) HMI Touch screen.


Download a Munual


4.7″ HITECH (Beijer) PWS operator Panels HMI PWS6560S-S PWS6500S-S PWS6560S-S
LCD Type Mono STN LCD
Screen size 4.7”(diagonal)
Display resolution 240 x 128
Brightness (cd/m2) 110


Via
Contrast adjustment Via touch panel external keyboard (sold sperately)


Display colors 16 shades of blue
Back light type CCFL
CPU 32-bit RISC
Back light life 30,000 hours
Operation Status LED PWR & COM1, COM2 LEDs


Via
Touch screen Analog e x t e r n a l keyboard


(sold sperately)
Touch screen

(number of times) > 1,000,000 —





128
Keypad — mechanical switches
Application Flash ROM 4MB
RAM 512KB
Data/Recipe —
RTC
(w/rechargeable lithium battery) Yes


Data storage (CF card) —


COM1 9-pin female (RS232/RS485)


COM2 9-pin female (RS422/RS485)


COM3 —
USB Host —
USB Device —


Multi-functional port —


Ethernet —


External dimensions (mm) 170.3 (W) x 102.6 (H) x 45.3 (D)
Cut-out dimensions (mm) 160.7 x 93.0
Supply voltage 24V DC ±15 %, < 12W
Front protection IP65
Certification CE,UL,FCC
Weight (kg) 0.47




Relevant documents
download Beijer-HITECH-HMI-PWS-Series-datasheet.pdf

Related Products

5.7" HITECH (Beijer) PWS operator Panels HMI PWS6620S-N
5.7" HITECH (Beijer) PWS operator Panels HMI PWS6620S-N
10.4" HITECH (Beijer) PWS operator Panels HMI PWS6A00T-N
10.4" HITECH (Beijer) PWS operator Panels HMI PWS6A00T-N
4.7" HITECH (Beijer) PWS operator Panels HMI PWS6500S-S
4.7" HITECH (Beijer) PWS operator Panels HMI PWS6500S-S
10.4" HITECH (Beijer) PWS operator Panels HMI PWS6A00T-P
10.4" HITECH (Beijer) PWS operator Panels HMI PWS6A00T-P
5.7" HITECH (Beijer) PWS operator Panels HMI PWS5610S-S
5.7" HITECH (Beijer) PWS operator Panels HMI PWS5610S-S
7.5" HITECH (Beijer) PWS operator Panels HMI PWS6800C-P
7.5" HITECH (Beijer) PWS operator Panels HMI PWS6800C-P

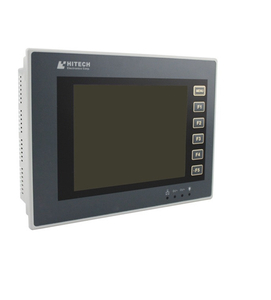

5.7" HITECH (Beijer) PWS operator Panels HMI PWS6620T-N
5.7" HITECH (Beijer) PWS operator Panels HMI PWS6620T-N

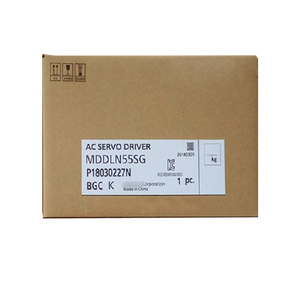

Panasonic Servo Driver MINAS A6 850W MDDLN55NE
Panasonic Servo Driver MINAS A6 850W MDDLN55NE

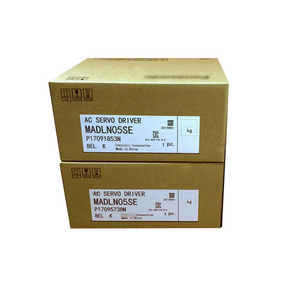

Panasonic Servo Driver MINAS A6 50w MADLT05SF
