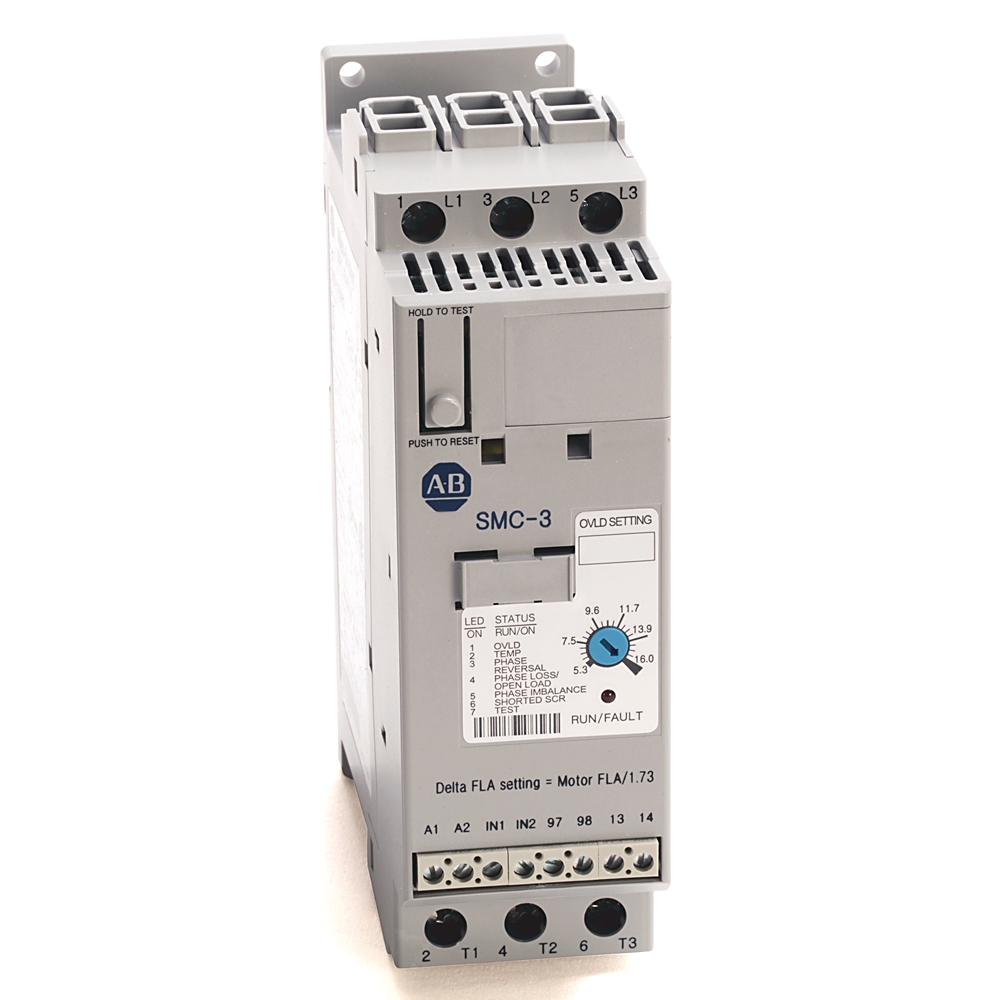

Service & Applications The Allen-Bradley 150-C201NBR is a high-capacity smart motor controller from the globally recognized SMC-3 product family, specifically designed for heavy-duty three-phase asynchronous motor regulations. This open-type industrial soft starter is capable of managing continuous currents up to 201A in standard line configurations and up to 348A when utilized within inside-delta networks. It features integrated solid-state electronic motor overload protections alongside an internal bypass configuration, which drastically minimizes heat dissipation (retaining a steady state of 129W) once the motor reaches full running speed. Equipped with configurable options for soft start ramp times, soft stop deceleration controls, current limiting, and selectable kick-starts, it serves as a crucial component for power systems in wastewater handling plants, chemical processing extraction pumps, heavy conveyor aggregates, and large-scale ventilation blowers.
Feature | Specification |
Manufacturer | Rockwell Automation / Allen-Bradley |
Catalog Number | 150-C201NBR |
Sub Brand / Series | SMC-3 (Smart Motor Controller) |
Rated Operating Voltage (Ue) | 200V...480V AC (3-Phase, 50/60 Hz) |
Control Supply Voltage | 24V AC/DC |
Line Connected Current Rating | 201 A |
Inside-Delta Connected Current | 348 A |
Max Connected Motor Power | 95...110 kW @ 380/400/415V AC (50 Hz) |
Integrated Overload Protection | Yes (Selectable Trip Class 10, 15, or 20) |
Internal Bypass Contacts | True (Built-in) |
Selectable Start Times | 2, 5, 10, 15, 20, 25, or 30 s |
Enclosure Type / Protection | Open Type / IP2X |
Net Dimensions (WxHxD) | 225 x 560 x 265.3 mm (8.86 x 22.05 x 10.45 in) |
Net Mechanical Weight | 30.4 kg (Approx. 67 lbs) |
