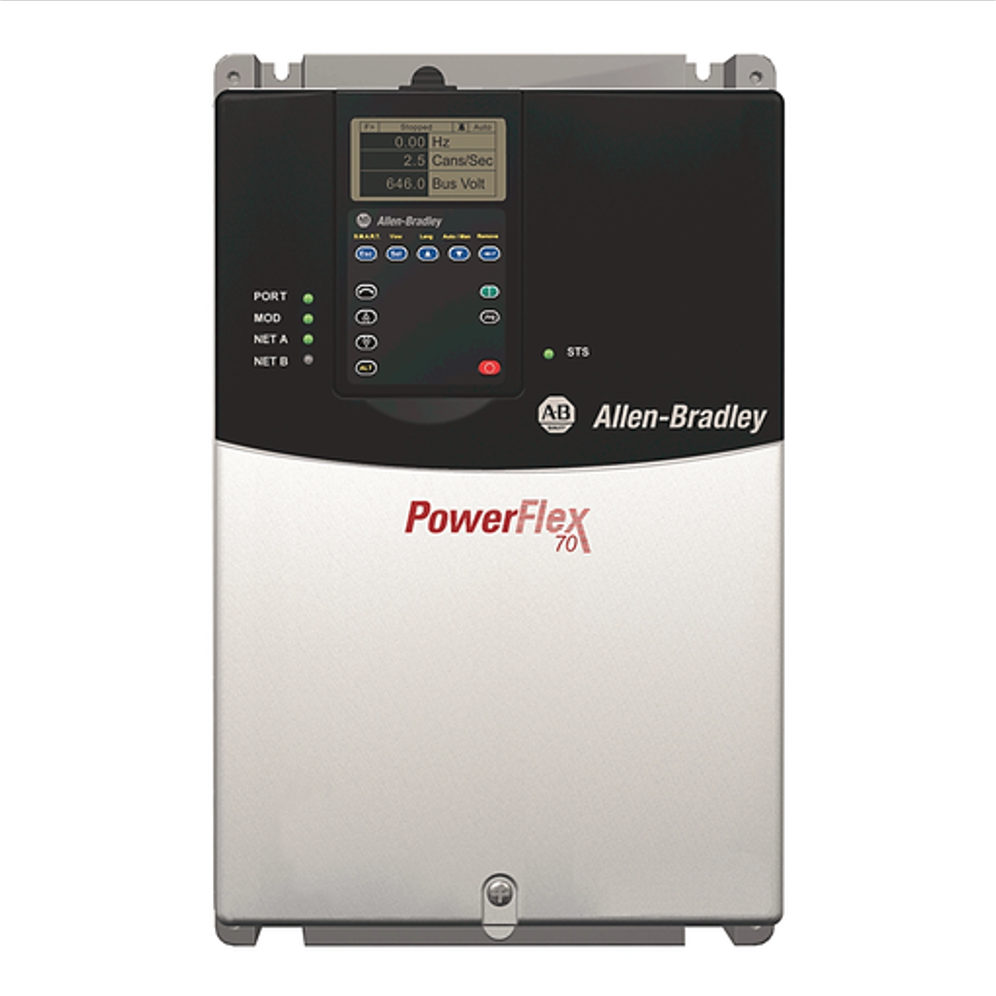

Service & Applications The Allen-Bradley 20AD022A0AYNACG1 is a compact, highly reliable AC drive from the PowerFlex 70 series, optimized for applications where panel enclosure space is restricted. It utilizes an Enhanced Control block equipped with a 24V AC/DC I/O interface logic system, giving engineers precise command over motor parameters using premium sinusoidal PWM configurations. A built-in dynamic braking transistor module allows the unit to perform rapid decelerations or managed stopping curves without requiring bulky external add-ons. Its space-efficient, flat-surface panel mount layout makes it a preferred choice for secondary machine assemblies, localized packaging conveyors, small automated food processing axes, and textile tension controls requiring immediate network interaction and stable torque curves under standard thermal operations.
Feature | Specification |
Manufacturer | Rockwell Automation / Allen-Bradley |
Catalog Number | 20AD022A0AYNACG1 |
Product Series | PowerFlex 70 |
Input Phase & Line Volts | 480V AC, 3-Phase, 50/60 Hz |
Continuous Amps Profile | 22 A |
Normal Duty Power Output | 15 HP (11 kW) |
Heavy Duty Power Output | 10 HP (7.5 kW) |
Enclosure Topology Class | Panel Mount - IP20 / NEMA Type 1 |
Chassis Mechanical Envelope | Frame Size D |
Control Logic Variety | Enhanced Control Scheme with 24V I/O |
Dynamic Braking Component | Brake IGBT Installed (Resistor omitted) |
EMC Filtering Module | Integrated CE Filter with Common Mode Choke |
HIM Module Assembly | Blank Cover Plate (No Screen/Keypad) |
Net Structural Weight | Approx. 20.1 lb (9.13 kg) |
