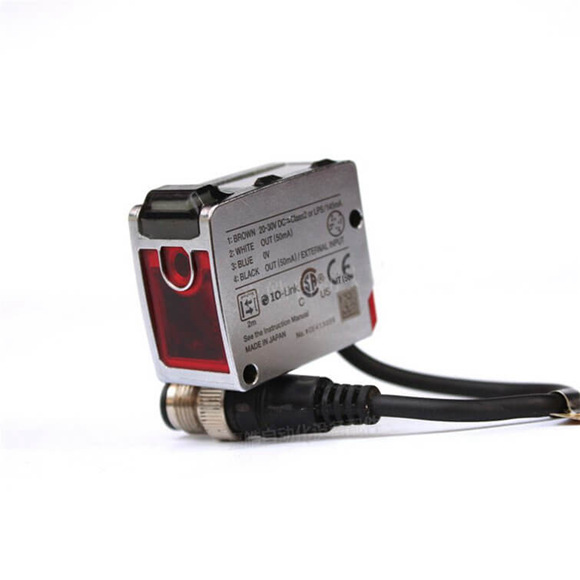

| Model | LR-TB2000 | LR-TB2000C | LR-TB2000CL | LR-TB5000 | LR-TB5000C | LR-TB5000CL |
| Type | Cable | Cable with connector M12 | Cable | Cable with connector M12 |
|
|
| Detectable distance | 60 to 2000 mm 2.36″ to 78.74″*1 | 60 to 5000 mm 2.36″ to 196.85″*6 |
|
|
|
|
| Spot diameter | Approx. ø4 mm ø0.16″ | Variable
(use a spot diameter of 40 mm 1.57″ or less) |
|
|
|
|
| Response time | 1 ms/10 ms/25 ms/100 ms/1000 ms
selectable | 2 ms/20 ms/50 ms/200 ms/2000 ms
selectable | 1 ms/10 ms/25 ms/100 ms/1000 ms
selectable | 2 ms/20 ms/50 ms/200 ms/2000 ms
selectable |
|
|
|
Type | Red laser (660 nm) |
|
|
|
|
|
| Laser class | Class 2 laser product
(IEC60825-1,FDA (CDRH) Part1040.10*2) | Class 1 laser product
(IEC60825-1,FDA (CDRH) Part1040.10*2) | Class 2 laser product
(IEC60825-1,FDA (CDRH) Part1040.10*2) | Class 1 laser product
(IEC60825-1,FDA (CDRH) Part1040.10*2) |
|
|
| Mutual interference prevention function | 4 units (when using the interference prevention function) |
|
|
|
|
|
| Timer | OFF/OFF delay/ON delay/One-shot |
|
|
|
|
|
| Power voltage | 20 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS |
|
|
|
|
|
| Current consumption | 45 mA or less (without load)*3 | 50 mA or less (without load)*7 |
|
|
|
|
| I/O
Control output | NPN open collector/PNP open collector selectable
30 VDC or less, 50 mA or less, residual voltage: 2 V or less,
N.O./N.C. selectable
*4*5 |
|
|
|
|
|
| Analog output | – | Current output/Voltage output selectable
Current output: 4 to 20 mA with a max. load resistance of 500 Ω
Voltage output: 0 to 10 V with an external load resistance of 5 kΩ or more
*4*5 |
|
|
|
|
| Protection circuit | Protection against reverse power connection, power supply surges, output overcurrent, reverse output connection, and output surge |
|
|
|
|
|
| Environmental resistance
Enclosure rating | IP65/IP67 (IEC60529) |
|
|
|
|
|
| Ambient light | Incandescent lamp/Sunlight: 10,0000 lux or less |
|
|
|
|
|
| Ambient temperature | -20 to +55 °C -4 to 131 °F (No freezing) |
|
|
|
|
|
| Relative humidity | 35 to 85 % RH (No condensation) |
|
|
|
|
|
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions |
|
|
|
|
|
| Shock resistance | 1,000 m/s2, 6 times in each of the X, Y, and Z directions |
|
|
|
|
|
| Material | Case: Zinc die cast (Nickel chrome plating),
Indicator cover and buttons: PES,
Lens cover and display: PMMA (scratch-resistant coating specifications),
Cable bushing: PBT,
Cable: PVC | Case: Zinc die cast (Nickel chrome plating),
Indicator cover and buttons: PES,
Lens cover and display: PMMA (scratch-resistant coating specifications),
Cable bushing: PBT,
Cable: PVC,
M12 connector: TPE, PBT, Nickel-plated brass | Case: Zinc die cast (Nickel chrome plating),
Indicator cover and buttons: PES,
Lens cover and display: PMMA (scratch-resistant coating specifications),
Cable bushing: PBT,
Cable: PVC | Case: Zinc die cast (Nickel chrome plating),
Indicator cover and buttons: PES,
Lens cover and display: PMMA (scratch-resistant coating specifications),
Cable bushing: PBT,
Cable: PVC,
M12 connector: TPE, PBT, Nickel-plated brass |
|
|

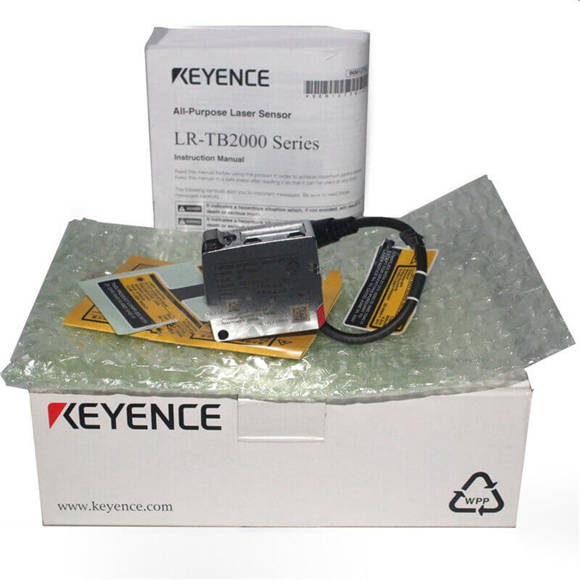

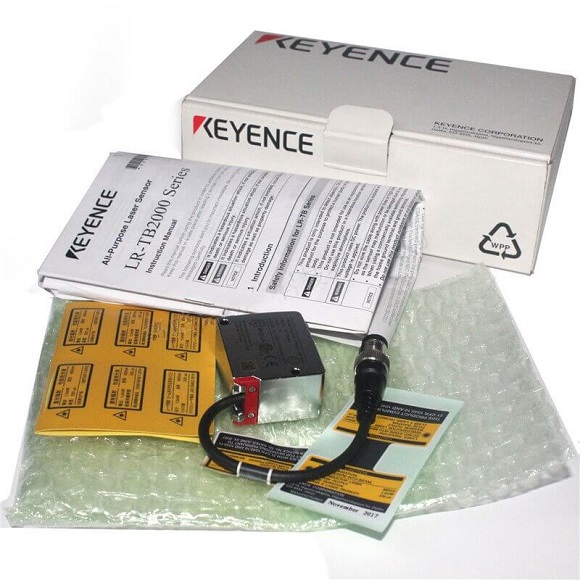

| Accompanying items | Instruction manual,
Laser warning and explanation labels | Instruction manual | Instruction manual,
Laser warning and explanation labels | Instruction manual |
|
|
| Weight | Approx. 125 g (Including cable) | Approx. 85 g | Approx. 200 g (Including cable) | Approx. 160 g |
|
|
