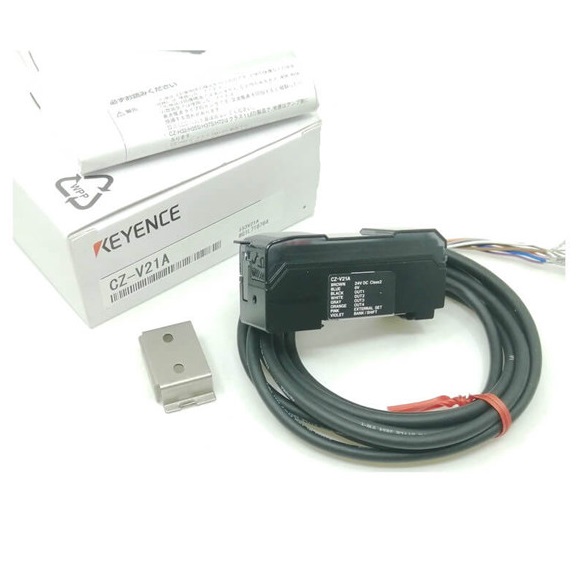

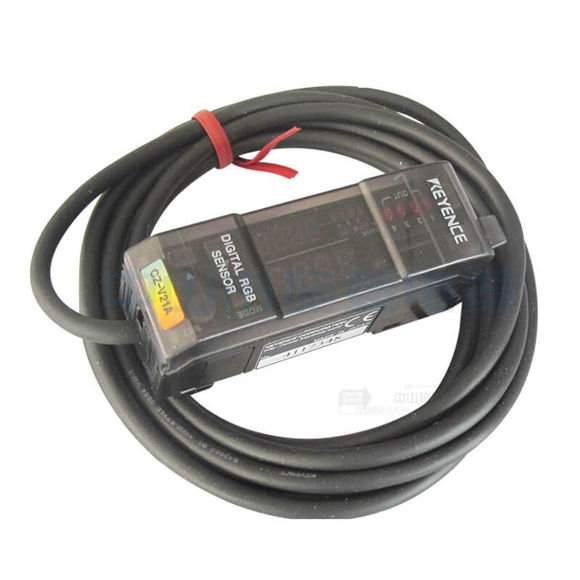

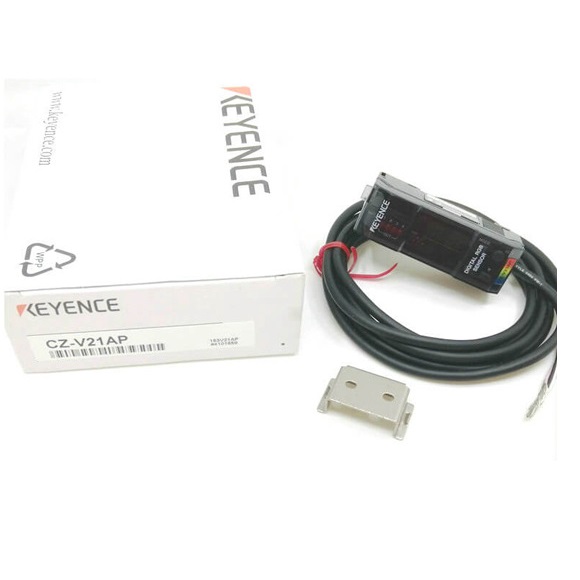

| Model | CZ-V21A*1 | CZ-V21AP*1 | CZ-V22A*1 | CZ-V22AP*1 |
| Output | NPN output | PNP output | NPN output | PNP output |
| Main unit/expansion unit | Main unit | Expansion unit |
|
|
| Response time | 200 µs (HIGH SPEED) /1 ms (FINE) /4 ms (TURBO) /8 ms (SUPER) |
|
|
|
| Control output | NPN open-collector x 4 channels, 40 VDC max., Up to 100 mA for one output, Up to 200 mA in total of 4 outputs, Residual voltage: 1.0 V max.*2 | PNP open-collector x 4 channels, 30 VDC max., Up to 100 mA for one output, Up to 200 mA in total of 4 outputs, Residual voltage: 1.0 V max.*2 | NPN open-collector x 4 channels, 40 VDC max., Up to 100 mA for one output, Up to 200 mA in total of 4 outputs, Residual voltage: 1.0 V max.*2 | PNP open-collector x 4 channels, 30 VDC max., Up to 100 mA for one output, Up to 200 mA in total of 4 outputs, Residual voltage: 1.0 V max.*2 |
| Protection circuit | Reverse-polarity protection, overcurrent protection, surge absorber |
|
|
|
| External tuning input, external bank switch input (C/C + I-mode), external shift input (super I-mode) | Input time: 20 ms min. |
|
|
|
| Timer function | Timer OFF/OFF-delay/ON-delay/One-shot, Timer time: 1 to 1000 ms adjustable (for each bank respectively) |
|
|
|
| Unit expansion | Up to 3 units (4 units total including the main unit) |
|
|
|
| Number of interference prevention units | 0 for HIGH SPEED; 2 for FINE/TURBO/SUPER |
|
|
|
| Rating
Power voltage | 24 VDC, Ripple (P-P) 10 % or less |
|
|
|
| Power consumption | Normal mode: 1.5 W (62.5 mA or less), Eco-mode: 1 W (42.0 mA or less) |
|
|
|
| Environmental resistance
Ambient temperature | -10 to +55 °C 14 to 131 °F (No freezing)*3 |
|
|
|
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z axis |
|
|
|
| Material | Housing, cover: Polycarbonate |
|
|
|
| Accessories | Mounting Fittings | End Unit × 2 |
|
|
| Weight | Approx. 110 g | Approx. 100 g |
|
|
