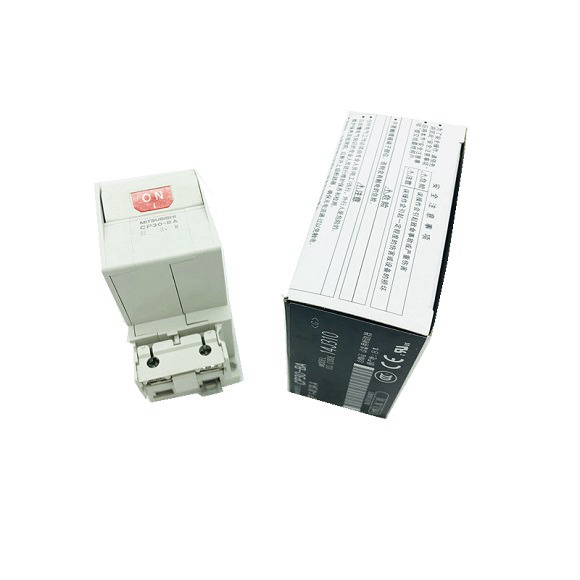

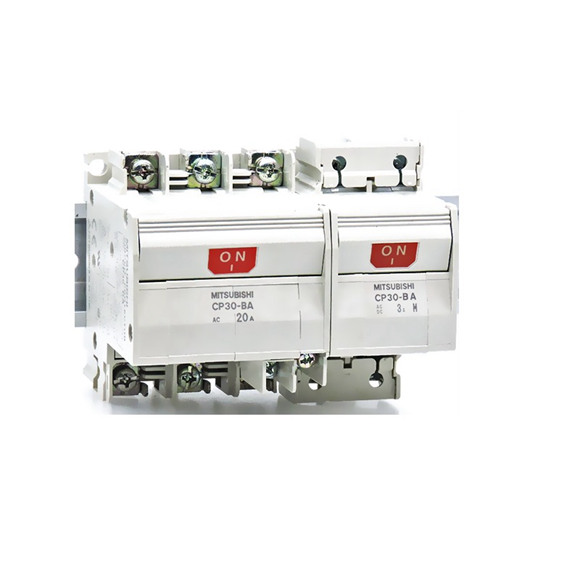

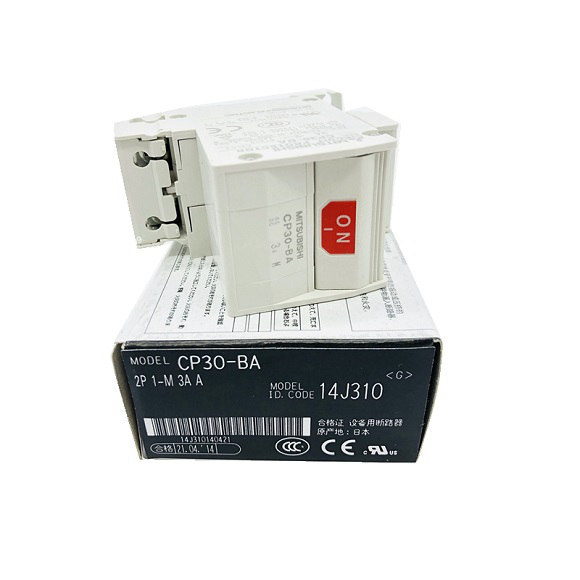

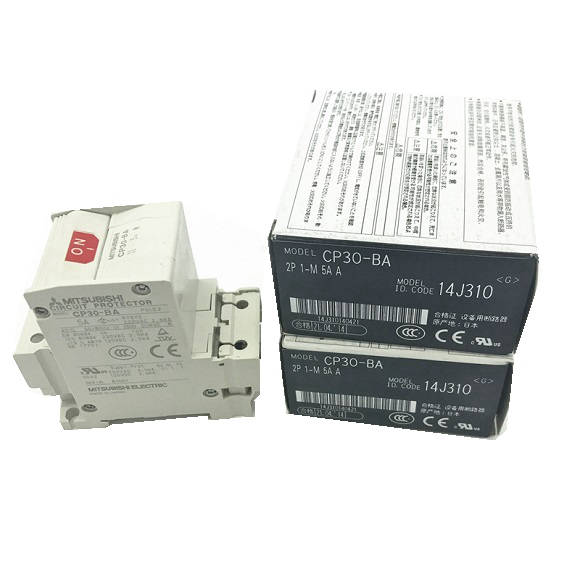

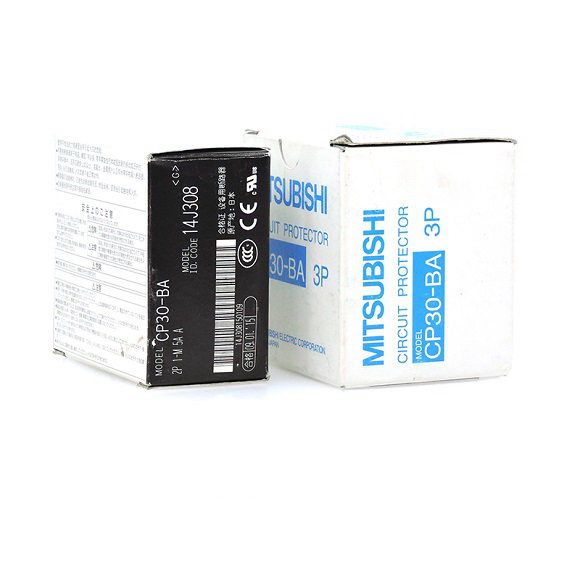

Mitsubishi Circuit Protectors for Equipment CP30-BA 0.1-30A 1P 2P 3P

Mitsubishi Circuit Protectors for Equipment CP30-BA 0.1-30A 1P 2P 3P
We can Supply mitsubishi circuit breaker parts,such as mitsubishi air circuit breaker,mitsubishi electric circuit breaker,mitsubishi moulded case circuit breaker,mitsubishi dc circuit breaker,mitsubishi earth leakage circuit breaker,mitsubishi electric vacuum circuit breaker,mitsubishi electric high voltage circuit breaker,mitsubishi gas circuit breaker on,
100% Original and new,In stock by Mitsubishi Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Product Description

Mitsubishi Circuit Protectors for Equipment CP30-BA 0.1-30A 1P 2P 3P
We can Supply mitsubishi circuit breaker parts,such as mitsubishi air circuit breaker,mitsubishi electric circuit breaker,mitsubishi moulded case circuit breaker,mitsubishi dc circuit breaker,mitsubishi earth leakage circuit breaker,mitsubishi electric vacuum circuit breaker,mitsubishi electric high voltage circuit breaker,mitsubishi gas circuit breaker on,

Model	CP30-BA	CP30-HU
Number of poles	1	2	3	1	2	3
Rated current (A)	0.1 0.25 0.3 0.5 1 2 3 5 7 10 15 20 30	0.1 0.25 0.3 0.5 1 2 3 5
Rated short-circuit capacity (kA) UL 1077 CSA C22.2 No.235 Rated voltage AC (V)	250	250
Rated short-circuit capacity (kA) UL 1077 CSA C22.2 No.235 Rated voltage DC (V)	65	125	－	65	125	－
Rated short-circuit capacity (kA) UL 1077 CSA C22.2 No.235 AC	2.5kA at 250V	2.5kA at 250V	10kA at 250V
Rated short-circuit capacity (kA) UL 1077 CSA C22.2 No.235 DC	2.5kA at 65V	2.5kA at 125V	－	10kA at 65V	10kA at 125V
Rated short-circuit capacity (kA) IEC 60934 EN 60934 GB 17701(*3) (Icn) Ui (V)	250	250
Rated short-circuit capacity (kA) IEC 60934 EN 60934 GB 17701(*3) (Icn) AC	2.5kA at 230V	2.5kA at 230V 10kA at 120V	10kA at 230V
Rated short-circuit capacity (kA) IEC 60934 EN 60934 GB 17701(*3) (Icn)DC	2.5kA at 60V	2.5kA at 120V	－	10kA at 65V	10kA at 120V
Rated short-circuit capacity (kA) DC		2.5/2.5kA at 120V	－	10/10kA at 60V	10/10kA at 120V
AC/DC common use	common	－(*1)	common	－(*1)
Mode of tripping	Instantaneous type(I); Medium type(M), (MD); Slow type(S), (SD); Fast type(F)(*2)	Instantaneous type(I); Medium type(M), (MD); Slow type(S)
Body mounting method	IEC 35mm rail mounting	IEC 35mm rail mounting
