| Item Model | E3NW-CCL CC-LINK |
|
Connectable Sensor Amplifier Units | N-Smart
Smart Fiber Amplifier Unit: E3NX-FA0 Smart Fiber Amplifier Unit (Infrared models): E3NX-FAH0 Smart Fiber Amplifier Unit (2-channel models): E3NX-MA0 Smart Laser Amplifier Unit: E3NC-LA0 Smart Laser Amplifier Unit (CMOS type): E3NC-SA0 Smart Proximity Amplifier Unit: E2NC-EA0 E2NC-EA10 E2NC-EA40 Contact-Type Smart Amplifier Unit: E9NC-TA0 *1 |
| Power supply voltage | 24 VDC (20.4 to 26.4 V) |
| Power and current consumption | 2.4 W max. (Not including the power supplied to Sensors.), 100 mA max. (Not including the current supplied to Sensors.) |
| Indicators | RUN indicator (green), ERROR indicator (red), and SS (Sensor Status) indicator (green/red) |
| Vibration resistance (destruction) | 10 to 60 Hz with a 0.7-mm double amplitude, 50 m/s2 at 60 to 150 Hz, for 1.5 hours each in X, Y, and Z directions |
| Shock resistance (destruction) | 150 m/s2 for 3 times each in X, Y, and Z directions |
| Ambient temperature range | Operating: 0 to 55°C; *2 Storage: -30 to 70°C (with no icing or condensation) |
| Ambient humidity range | Operating and storage: 25% to 85% (with no condensation) |
| Maximum connectable Sensors *2 | 16 *3 |
| Maximum connectable Distributed Sensor Units | 8 |
| Insulation resistance | 20 MΩ min. (at 500 VDC) |
| Dielectric strength | 500 VAC at 50/60 Hz for 1 min |
| Mounting method | 35-mm DIN track – mounting |
| Weight (packed state/Unit only) | Approx. 180 g/approx. 80 g |
| Materials | Polycarbonate |

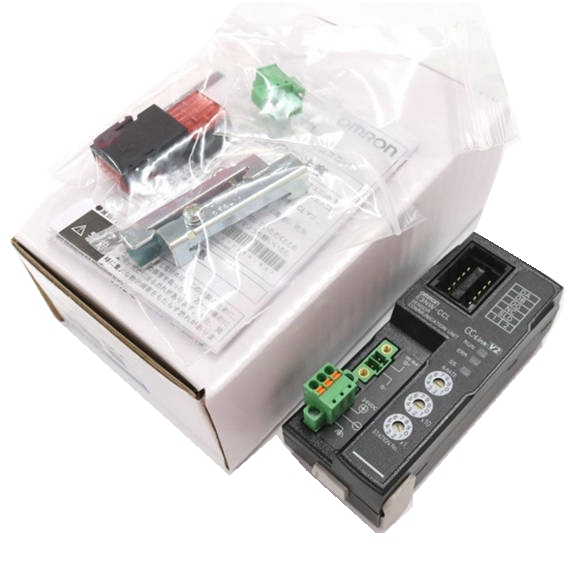

| Accessories | Power Supply Connector, E3NW-DS Communications Connector, Network Connectors (2), DIN Track End Plates (2), and Instruction Manual |
