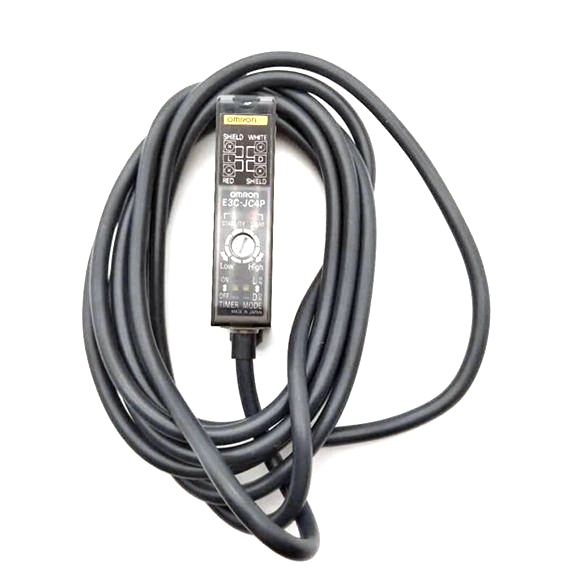

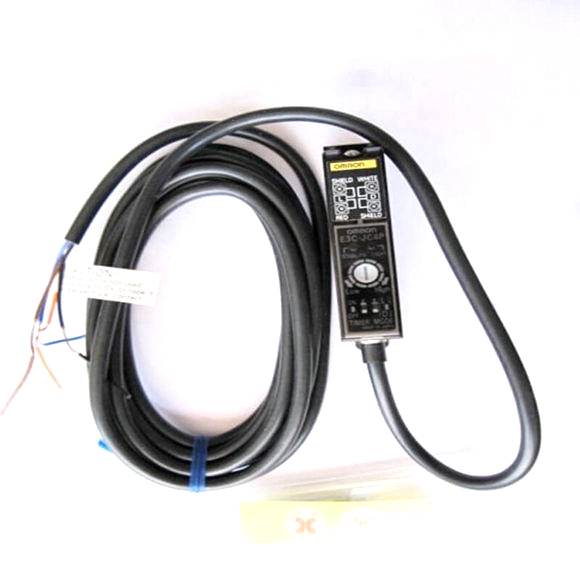

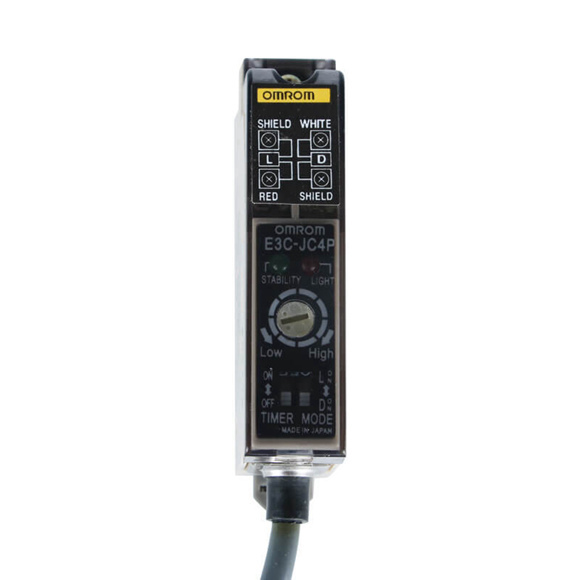

| Item Model | E3C-JC4P |
| Power supply voltage | 12 to 24 VDC±10%, ripple (p-p): 1 V max. |
| Power (current) consumption | 40 mA max. |
|
Control output | Load power supply voltage: 24 VDC max., load current: 100 mA max., NPN open collector output type (residual voltage: 1 V max.)
Light-ON/Dark-ON switch selectable |
| Timer function | OFF-delay 0/40 ms (switch selectable) |
| Ambient temperature range | Operating: -10° to 55°C, Storage: -25° to 70°C (with no icing or condensation) |
| Ambient humidity range | Operating: 35% to 85%, Storage: 35% to 85% (with no condensation) |
| Insulation resistance | 20 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 VAC at 50/60 Hz for 1 minute |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | Destruction: 300 ms2 three times in each of X, Y and Z directions |
| Degree of protection | IEC IP40 (limited to indoor use) |
| Protection | Reverse polarity protection, output short-circuit protection, mutual interference prevention |
| Response time | Operate or reset: 1 ms max. |
| Connection method | Terminal block input cable pullout (standard cable length: 2 m) |
| Weight (packed state) | Approx. 80 g |
| Accessories | Mounting Bracket, Adjustment screwdriver, Caution label, Instruction manual |
