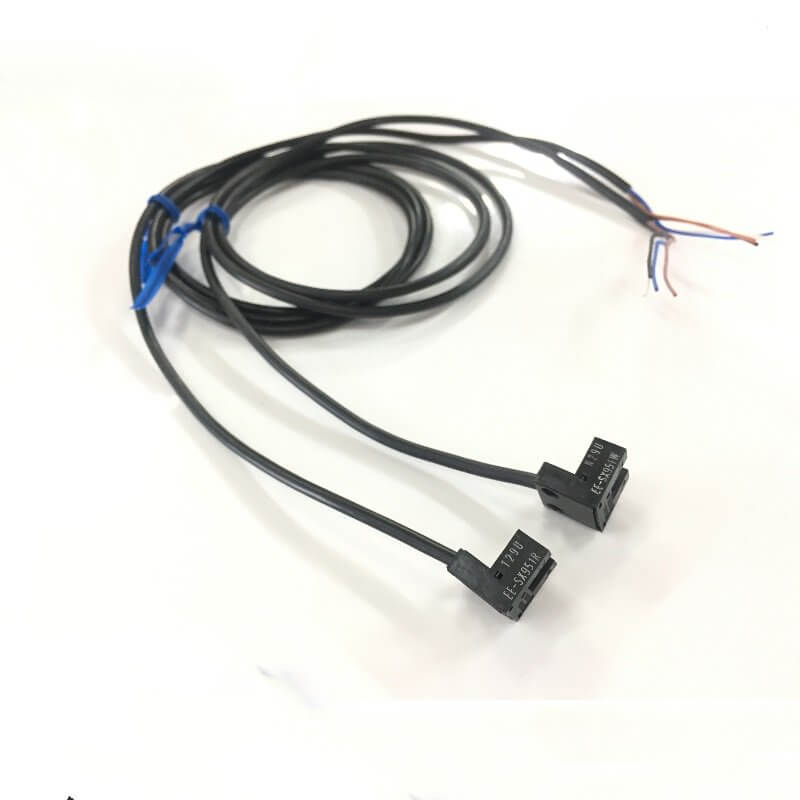

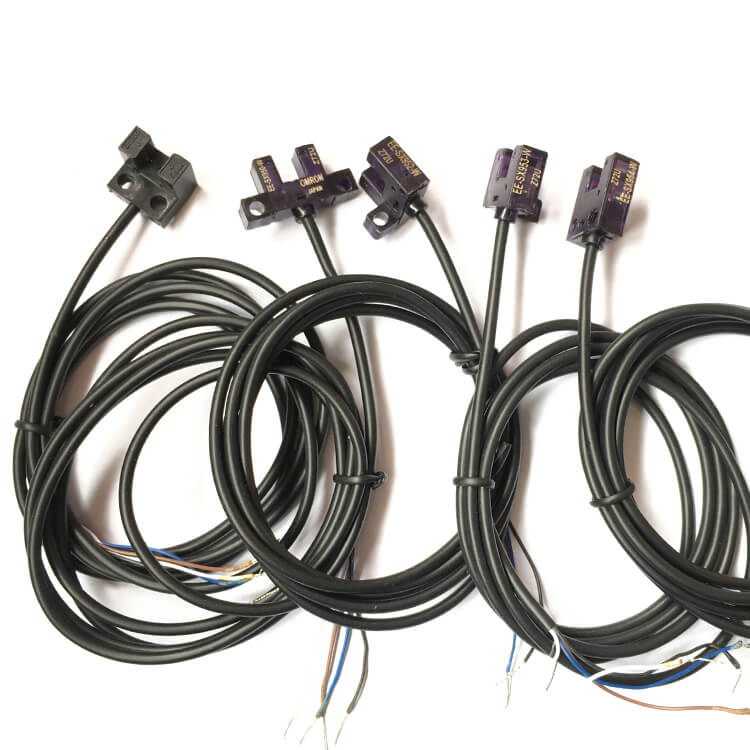

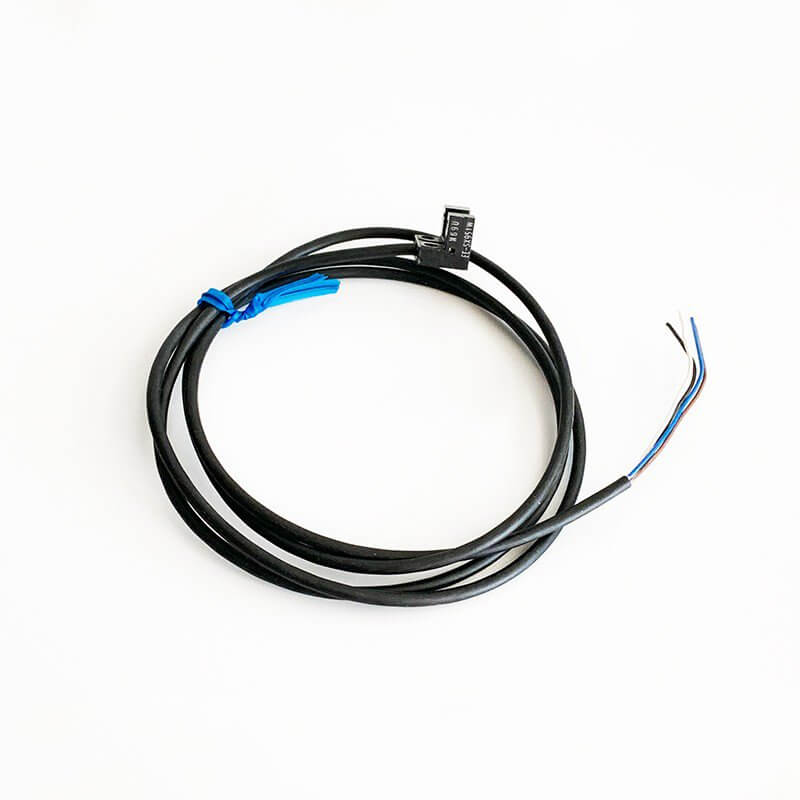

| Item Type | Standard | L-shaped | F-shaped | R-shaped | U-shaped |
| NPN output Pre-wired models | EE-SX950-@ | EE-SX951-@ | EE-SX952-@ | EE-SX953-@ | EE-SX954-@ |
| NPN output Pre-wired connector models | EE-SX950-C1J-R | EE-SX951-C1J-R | EE-SX952-C1J-R | EE-SX953-C1J-R | EE-SX954-C1J-R |
| PNP output Pre-wired models | EE-SX950P-@ | EE-SX951P-@ | EE-SX952P-@ | EE-SX953P-@ | EE-SX954P-@ |
| Sensing distance | 5 mm (slot width) |
| Standard sensing object | Opaque: 1.8 ´ 0.8 mm min. |
| Differential travel | 0.025 mm max. *1 |
| Light source (wave length) | Infrared LED (940 nm) |
| Indicator | Light indicator (red LED) |
| Power supply voltage | 5 to 24 VDC ±10%, ripple (p-p): 10% max. |
| Current consumption | 15 mA max. |
|
Control output | Load power supply voltage: 5 to 24 VDC Load current: 50 mA max.
OFF current: 0.5 mA max. 50 mA load current with a residual voltage of 0.7 V max. 5 mA load current with a residual voltage of 0.4 V max. |
| Protection circuit | Load short-circuit protection |
| Response frequency | 1 kHz min. (3 kHz average) *2 |
| Ambient illumination | 1,000 lx max. with fluorescent light on the surface of the receiver |
| Ambient temperature range | Operating: -25 to 55°C
Storage: -30 to 80°C (with no icing or condensation) |
| Ambient humidity range | Operating: 5% to 85%
Storage: 5% to 95% (with no icing or condensation) |
| Vibration resistance (destruction) | 10 to 2,000 Hz (peak acceleration: 150m/s2)
with a 0.75-mm single amplitude for 2.5 h (15-min periods, 10 cycles) each in X, Y, and Z directions |
| Shock resistance (destruction) | 500 m/s2 for 3 times each in X, Y, and Z directions |
| Degree of protection | IEC60529 IP50 |
| Connection method | Pre-wired models (standard length: 1 m), Pre-wired connector models (standard length: 0.3 m) |
| Weight Pre-wired models | Approx. 15 g |
| Weight Pre-wired connector models | Approx. 7 g |
