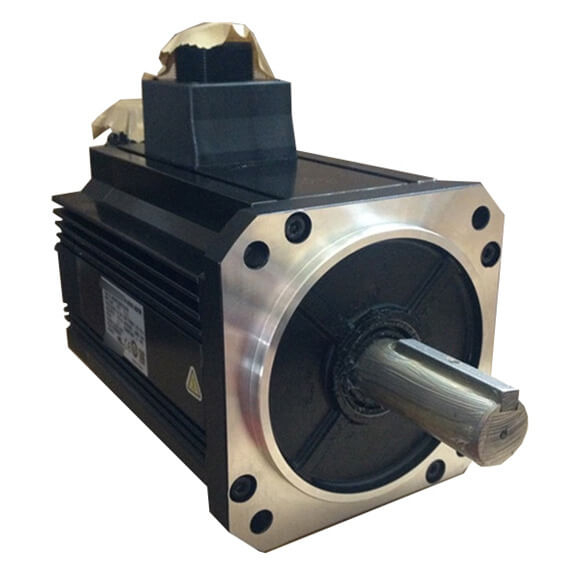

Panasonic Servo Motor MINAS A4 3KW Break MDMA302P1H/P1D

Series#: Panasonic Servomotor

Panasonic Servo Motor MINAS A4 3KW Break MDMA302P1H/P1D
We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
100% Original and new,In stock by Panasonic Electric
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Availability:



Inquire

Specification

Panasonic Servo Motor MINAS A4 3KW Break MDMA302P1H/P1D

Panasonic Servo Motor MINAS A4	AC200V
Panasonic Servo Motor MINAS MDMA	202P1	202S1	302P1	302S1
A4 series	MEDDT7364		MFDDTA390
A4F series	MEDDT7364F		MFDDTA390F
A4P series	MEDDT7364P		MFDDTA390P
Frame symbol	Frame E		Frame F
Power supply capacity (kVA)	3.3		4.5
Rated output (W)	2000		3000
Rated torque (N . m)	9.54		14.3
Momentary Max. peak torque (N . m)	28.5		42.9
Rated current (Arms)	12.3		17.8
Max. current (Ao-p)	52		76
Rated rotational speed (r/min)	2000
Max. rotational speed (r/min)	3000
Recommended moment of inertia ratio of the load and the rotor Note)3	10 times or less
Rotary encoder specifications	2500P/r Incremental	17-bit Absolute/ Incremental	2500P/r Incremental	17-bit Absolute/ Incremental
Resolution per single turn	10000	131072	10000	131072
Protective enclosure rating	IP65 (except rotating portion of output shaft and lead wire end)
Ambient temperature	0 to 40˚C (free from freezing), Storage : –20 to +65˚C (Max.temperature guarantee 80˚C for 72 hours <Nomal temperature>)
Ambient humidity	85%RH or lower (free from condensing)
Installation location	Indoors (no direct sunlight), free from corrosive gas, inflammable gas, oil mist and dust
Altitude	1000m or lower
Vibration resistance	49m/s2 or less
Mass (kg), ( ) represents holding brake type	10.6 (12.5)		14.6 (16.5)
